QN Female Bulkhead
Specifications
Product classification
| Product Type | Device connector |
General specifications
| Body Style | Bulkhead |
| Inner Contact Attachment Method | Solder |
| Inner Contact Plating | Gold |
| Interface | QN Female |
| Outer Contact Plating | Trimetal |
Dimensions
| Width | 22.1 mm | 0.87 in |
| Length | 47.8 mm | 1.882 in |
| Diameter | 22.1 mm | 0.87 in |

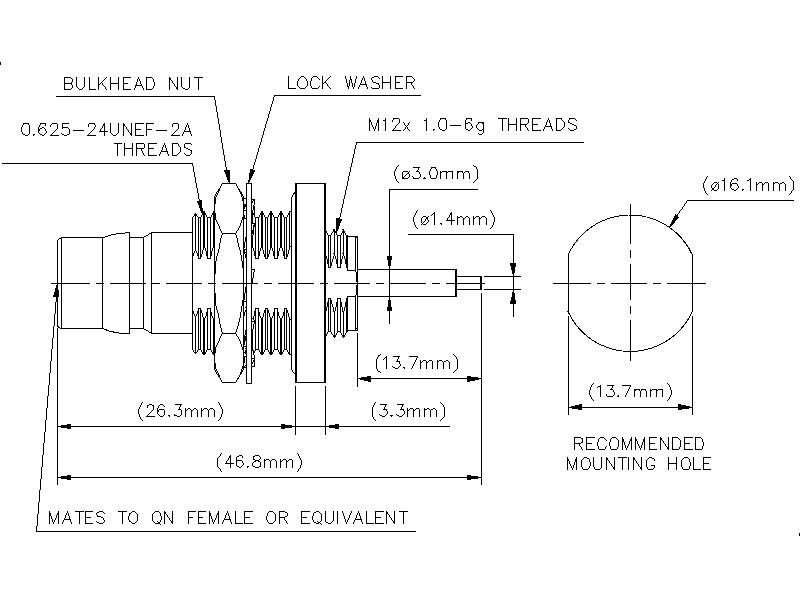

Outline drawing
| Click on image to enlarge. |
Electrical specifications
| Connector Impedance | 50 ohm |
| dc Test Voltage | 2500 V |
| Inner Contact Resistance, maximum | 1.5 mOhm |
| Insulation Resistance, minimum | 5000 mOhm |
| Operating Frequency Band | 0 – 6000 MHz |
| Outer Contact Resistance, maximum | 1.5 mOhm |
| Peak Power, maximum | 10 kW |
| RF Operating Voltage, maximum (vrms) | 707 V |
Return loss/vswr
| Frequency band | Vswr | Return loss (db) |
| 0–6000 MHz | 1.200 | 20.83 |
Mechanical specifications
| Interface Durability | 100 cycles |
| Interface Durability Method | IEC 61169-16:9.5 |
| Mechanical Shock Test Method | IEC 60068-2-27 |
Environmental specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -65 °C to +125 °C (-85 °F to +257 °F) |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
| Average Power, Inner Conductor Temperature | 100 °C | 212 °F |
| Climatic Sequence Test Method | IEC 60068-1 |
| Corrosion Test Method | IEC 60068-2-11 |
| Damp Heat Steady State Test Method | IEC 60068-2-3 |
| Thermal Shock Test Method | IEC 60068-2-14 |
| Vibration Test Method | IEC 60068-2-6 |
Packaging and weights
| Weight, net | 35.34 g | 0.078 lb |
Product classification
| Product Type | Device connector |
General specifications
| Body Style | Bulkhead |
| Inner Contact Attachment Method | Solder |
| Inner Contact Plating | Gold |
| Interface | QN Female |
| Outer Contact Plating | Trimetal |
Dimensions
| Width | 22.1 mm | 0.87 in |
| Length | 47.8 mm | 1.882 in |
| Diameter | 22.1 mm | 0.87 in |
Electrical specifications
| Connector Impedance | 50 ohm |
| dc Test Voltage | 2500 V |
| Inner Contact Resistance, maximum | 1.5 mOhm |
| Insulation Resistance, minimum | 5000 mOhm |
| Operating Frequency Band | 0 – 6000 MHz |
| Outer Contact Resistance, maximum | 1.5 mOhm |
| Peak Power, maximum | 10 kW |
| RF Operating Voltage, maximum (vrms) | 707 V |
Return loss/vswr
| Frequency Band | VSWR | Return Loss (dB) |
| 0–6000 MHz | 1.200 | 20.83 |
Mechanical specifications
| Interface Durability | 100 cycles |
| Interface Durability Method | IEC 61169-16:9.5 |
| Mechanical Shock Test Method | IEC 60068-2-27 |
Environmental specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -65 °C to +125 °C (-85 °F to +257 °F) |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
| Average Power, Inner Conductor Temperature | 100 °C | 212 °F |
| Climatic Sequence Test Method | IEC 60068-1 |
| Corrosion Test Method | IEC 60068-2-11 |
| Damp Heat Steady State Test Method | IEC 60068-2-3 |
| Thermal Shock Test Method | IEC 60068-2-14 |
| Vibration Test Method | IEC 60068-2-6 |
Packaging and weights
| Weight, net | 35.34 g | 0.078 lb |
