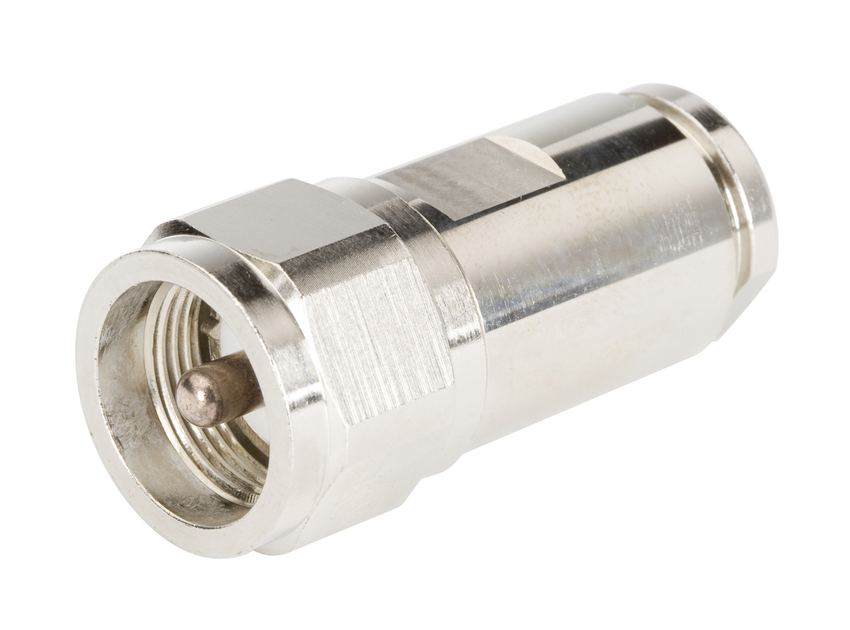

400PUM
UHF Male for CNT-400 braided cable
Specifications
Product classification
| Product Type | Braided cable connector |
| Product Brand | CNT® |
General specifications
| Body Style | Straight |
| Inner Contact Attachment Method | Solder |
| Inner Contact Plating | Silver |
| Interface | UHF Male |
| Outer Contact Attachment Method | Clamp |
| Outer Contact Plating | Trimetal |
| Pressurizable | No |
Dimensions
| Width | 22.35 mm | 0.88 in |
| Length | 46.1 mm | 1.815 in |
| Diameter | 22.35 mm | 0.88 in |
| Nominal Size | 0.405 in |

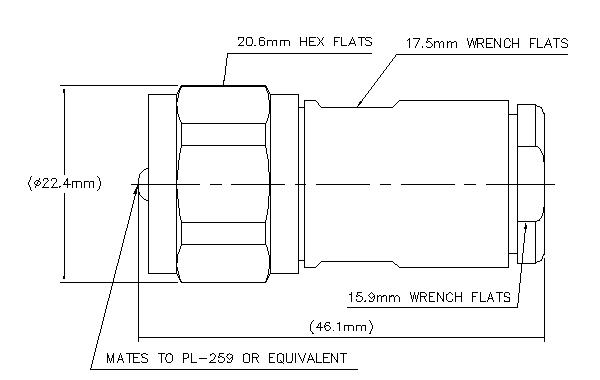

Outline drawing
| Click on image to enlarge. |
Electrical specifications
| Insertion Loss, typical | 0.05 dB |
| Average Power at Frequency | 580.0 W @ 900 MHz |
| Cable Impedance | 50 ohm |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 1500 V |
| Inner Contact Resistance, maximum | 6 mOhm |
| Insulation Resistance, minimum | 5000 mOhm |
| Operating Frequency Band | 0 – 1000 MHz |
| Outer Contact Resistance, maximum | 9 mOhm |
| RF Operating Voltage, maximum (vrms) | 500 V |
Return loss/vswr
| Frequency band | Vswr | Return loss (db) |
| 0–300 MHz | 1.433 | 14.99 |
| 300–600 MHz | 1.433 | 14.99 |
| 600–1000 MHz | 1.671 | 12.00 |
Mechanical specifications
| Connector Retention Tensile Force | 330 N | 74.187 lbf |
| Connector Retention Torque | 0.56 N-m | 4.956 in lb | 0.75 N-m | 6.638 in lb |
| Coupling Nut Proof Torque | 1.7 N-m | 15.046 in lb |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-12:9.5 |
| Mechanical Shock Test Method | IEC 60068-2-27 |
Environmental specifications
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Storage Temperature | -65 °C to +125 °C (-85 °F to +257 °F) |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
| Average Power, Inner Conductor Temperature | 100 °C | 212 °F |
| Climatic Sequence Test Method | IEC 60068-1 |
| Corrosion Test Method | IEC 60068-2-11 |
| Damp Heat Steady State Test Method | IEC 60068-2-3 |
| Immersion Depth | 1 m |
| Immersion Test Mating | Mated |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Thermal Shock Test Method | IEC 60068-2-14 |
| Vibration Test Method | IEC 60068-2-6 |
Packaging and weights
| Weight, net | 73 g | 0.161 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Product Type | Braided cable connector |
| Product Brand | CNT® |
General specifications
| Body Style | Straight |
| Inner Contact Attachment Method | Solder |
| Inner Contact Plating | Silver |
| Interface | UHF Male |
| Outer Contact Attachment Method | Clamp |
| Outer Contact Plating | Trimetal |
| Pressurizable | No |
Dimensions
| Width | 22.35 mm | 0.88 in |
| Length | 46.1 mm | 1.815 in |
| Diameter | 22.35 mm | 0.88 in |
| Nominal Size | 0.405 in |
Electrical specifications
| Insertion Loss, typical | 0.05 dB |
| Average Power at Frequency | 580.0 W @ 900 MHz |
| Cable Impedance | 50 ohm |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 1500 V |
| Inner Contact Resistance, maximum | 6 mOhm |
| Insulation Resistance, minimum | 5000 mOhm |
| Operating Frequency Band | 0 – 1000 MHz |
| Outer Contact Resistance, maximum | 9 mOhm |
| RF Operating Voltage, maximum (vrms) | 500 V |
Return loss/vswr
| Frequency Band | VSWR | Return Loss (dB) |
| 0–300 MHz | 1.433 | 14.99 |
| 300–600 MHz | 1.433 | 14.99 |
| 600–1000 MHz | 1.671 | 12.00 |
Mechanical specifications
| Connector Retention Tensile Force | 330 N | 74.187 lbf |
| Connector Retention Torque | 0.56 N-m | 4.956 in lb | 0.75 N-m | 6.638 in lb |
| Coupling Nut Proof Torque | 1.7 N-m | 15.046 in lb |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-12:9.5 |
| Mechanical Shock Test Method | IEC 60068-2-27 |
Environmental specifications
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Storage Temperature | -65 °C to +125 °C (-85 °F to +257 °F) |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
| Average Power, Inner Conductor Temperature | 100 °C | 212 °F |
| Climatic Sequence Test Method | IEC 60068-1 |
| Corrosion Test Method | IEC 60068-2-11 |
| Damp Heat Steady State Test Method | IEC 60068-2-3 |
| Immersion Depth | 1 m |
| Immersion Test Mating | Mated |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Thermal Shock Test Method | IEC 60068-2-14 |
| Vibration Test Method | IEC 60068-2-6 |
Packaging and weights
| Weight, net | 73 g | 0.161 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
