DFJ-2S5A-DDAA-XM

Base product: DFJ-SERIES

Available in:
Asia
Australia/New Zealand
EMEA
Latin America
North America

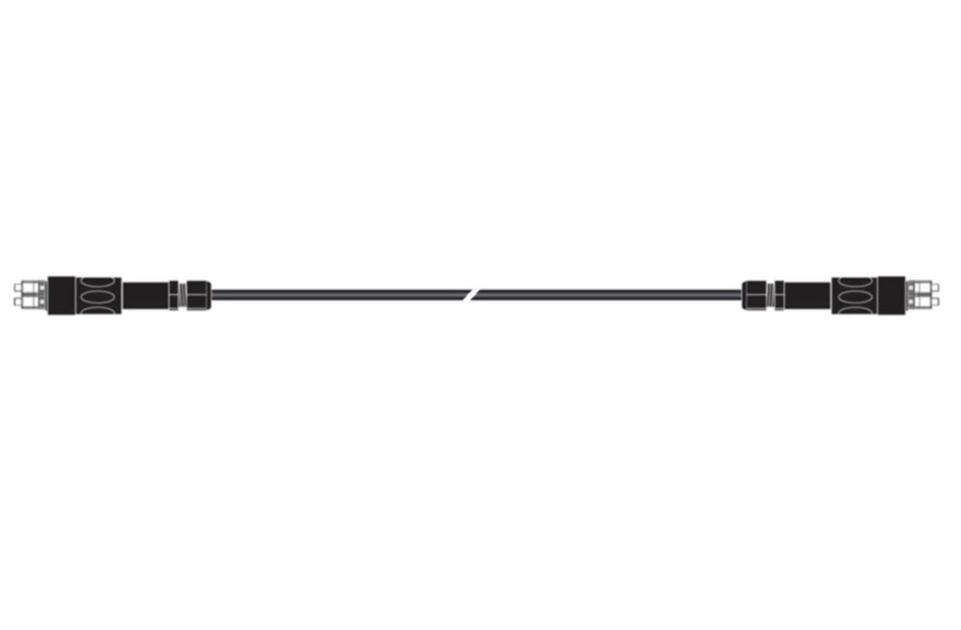

HELIAX® Discrete Fiber Jumper, 2F Single LSZH jacket cable, terminated with clipped DLC at both Ends, pre-install two EAS shrouds (Designed to mate with FullAXS bulkhead) at both ends.

Finish making your selections or clear them to view relevant specifications.

Download specifications

Find a partner

Specifications

Product classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Product Type	Wireless Fiber Cable Assemblies
Product Brand	HELIAX®
Product Series	DFJ
Ordering Note	ANDREW® Standard Product in Europe

General specifications

Construction Type	Discrete fiber tail
Interface, Connector A	LC/UPC
Interface, Connector B	LC/APC
Jacket Color	Black
Total Fibers, quantity	2

Dimensions

Breakout Length, connector A	100.000 mm \| 3.93701 in
Cable Assembly Length Range (m)	1 – 100
Diameter Over Jacket	5 mm \| 0.197 in

Material specifications

Jacket Material

Low Smoke Zero Halogen (LSZH)

Mechanical specifications

Minimum Bend Radius

50 mm | 1.969 in

Optical specifications

Fiber Mode	Singlemode
Fiber Type	G.657.A2
Insertion Loss, typical note	Insertion loss is measured at 1310 and 1550 nm
Insertion Loss, typical	0.3 dB
Return Loss, minimum, connector A	50 dB

Environmental specifications

Installation temperature	-30 °C to +70 °C (-22 °F to +158 °F)
Operating Temperature	-40 °C to +75 °C (-40 °F to +167 °F)
Storage Temperature	-40 °C to +75 °C (-40 °F to +167 °F)
Environmental Space	Indoor/Outdoor
Jacket UV Resistance	UV stabilized

Packaging and weights

Cable weight

29 kg/km | 19.487 lb/kft
