DFJ-2M7-NB
Base product: DFJ-SERIES
- Available in:
- Asia
- Australia/New Zealand
- EMEA
- Latin America
- North America

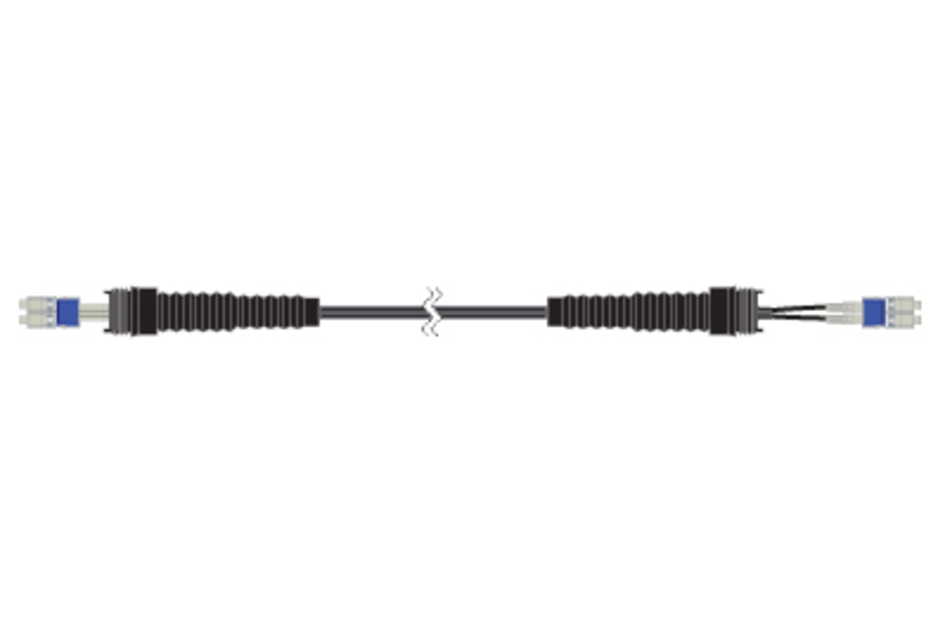

HELIAX® Discrete: 2 multimode fiber, 7 mm LSZH cable. End 1: DLC with weatherproofing boot. End 2: DLC with weatherproofing boot, 20 m
Product variants
Configure and display product variants of DFJ-2M7-NB by selecting options
Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.
| Part Number | Cable Assembly Length | ||
|---|---|---|---|
| No configured items found. | |||
Specifications
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Wireless Fiber Cable Assemblies |
| Product Brand | HELIAX® |
| Product Series | DFJ |
| Ordering Note | ANDREW® non-standard product |
General specifications
| Construction Type | Discrete fiber tail |
| Interface, Connector A | LC/UPC |
| Interface Feature, connector A | Nokia boot |
| Interface Body Style, connector A | Straight |
| Interface, Connector B | LC/UPC |
| Interface Feature, connector B | Nokia boot |
| Interface Body Style, connector B | Straight |
| Jacket Color | Black |
| Total Fibers, quantity | 2 |
Dimensions
| Cable Assembly Length Range (m) | 1 – 200 |
| Diameter Over Jacket | 7 mm | 0.276 in |
Material specifications
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
Mechanical specifications
| Minimum Bend Radius | 70 mm | 2.756 in |
Optical specifications
| Fiber Mode | Multimode |
| Fiber Type | OM2, bend insensitive |
| Insertion Loss, typical note | Insertion loss is measured at 850 nm |
| Insertion Loss, typical | 0.5 dB |
Environmental specifications
| Operating Temperature | -40 °C to +80 °C (-40 °F to +176 °F) |
| Environmental Space | Outdoor |
Packaging and weights
| Cable weight | 25 kg/km | 16.799 lb/kft |
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Wireless Fiber Cable Assemblies |
| Product Brand | HELIAX® |
| Product Series | DFJ |
| Ordering Note | ANDREW® non-standard product |
General specifications
| Construction Type | Discrete fiber tail |
| Interface, Connector A | LC/UPC |
| Interface Feature, connector A | Nokia boot |
| Interface Body Style, connector A | Straight |
| Interface, Connector B | LC/UPC |
| Interface Feature, connector B | Nokia boot |
| Interface Body Style, connector B | Straight |
| Jacket Color | Black |
| Total Fibers, quantity | 2 |
Dimensions
| Cable Assembly Length Range (m) | 1 – 200 |
| Diameter Over Jacket | 7 mm | 0.276 in |
Material specifications
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
Mechanical specifications
| Minimum Bend Radius | 70 mm | 2.756 in |
Optical specifications
| Fiber Mode | Multimode |
| Fiber Type | OM2, bend insensitive |
| Insertion Loss, typical note | Insertion loss is measured at 850 nm |
| Insertion Loss, typical | 0.5 dB |
Environmental specifications
| Operating Temperature | -40 °C to +80 °C (-40 °F to +176 °F) |
| Environmental Space | Outdoor |
Packaging and weights
| Cable weight | 25 kg/km | 16.799 lb/kft |
