DFJ-12S5N-FDNB
Base product: DFJ-SERIES
- Available in:
- Asia
- Australia/New Zealand
- EMEA
- Latin America
- North America

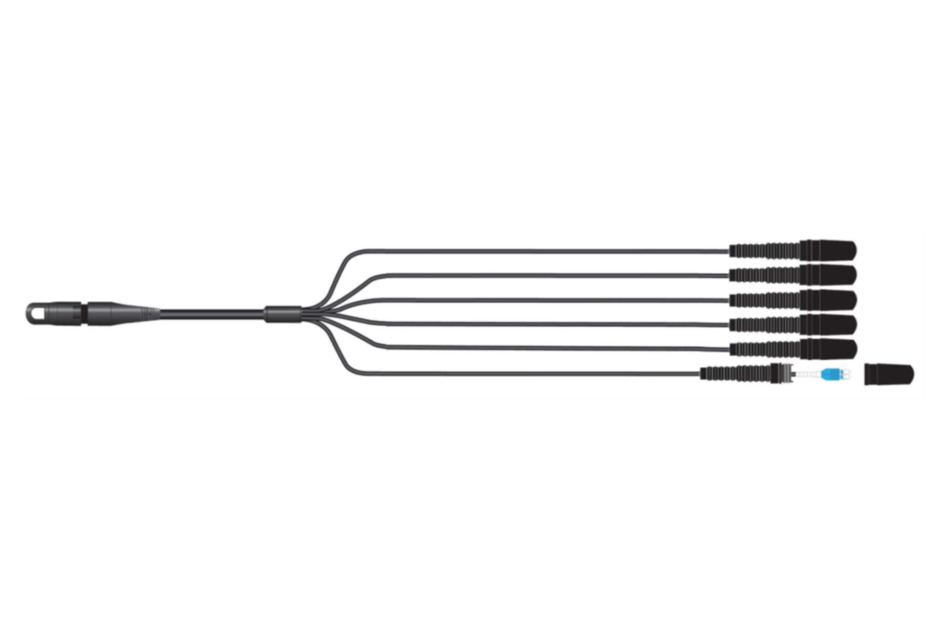

HELIAX® Discrete, outdoor rated, single mode 12 fiber cable assembly, End 1: OptiTip Compatible connector (Plug) and End 2: Uniboot LC, preinstalled Nokia rubber shroud at each branch cable. pre-install protection cap included.
Features and benefits
HELIAX® Discrete, outdoor rated, single mode 12 fiber cable assembly, End 1: OptiTip Compatible connector (Plug) and End 2: Uniboot LC, preinstalled Nokia Rubber shroud at each branch cable. Pre-install Protection Cap for every NOKIA Boot, IP65 rating protection.Main cable length: 0.5m; Branch cable length: available for 2m/6m/8m.
Specifications
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Wireless Fiber Cable Assemblies |
| Product Brand | HELIAX® |
| Product Series | DFT |
| Ordering Note | ANDREW® non-standard product |
General specifications
| Construction Type | Discrete fiber trunk |
| Interface, Connector A | HHC (HELIAX® Hardened Connector) OptiTip & HMFOC Compatible |
| Interface Feature, connector A | Uniboot |
| Interface Body Style, connector A | Straight |
| Interface, Connector B | LC/UPC |
| Interface Feature, connector B | Uniboot |
| Interface Body Style, connector B | Straight |
| Jacket Color | Black |
| Jacket Marking | Meters |
| Pulling Grips, quantity | 1 |
| Total Fibers, quantity | 12 |
Dimensions
| Cable Assembly Length Range (m) | 1 – 100 |
| Diameter Over Jacket | 5.4 mm | 0.213 in |

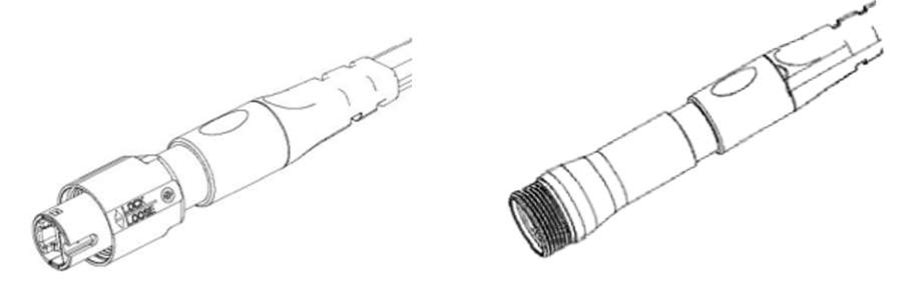

Outline drawing
| Click on image to enlarge. |
Material specifications
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
Mechanical specifications
| Minimum Bend Radius, furcation | 30 mm | 1.181 in |
| Minimum Bend Radius, loaded | 108 mm | 4.252 in |
| Minimum Bend Radius, unloaded | 54 mm | 2.126 in |
Optical specifications
| Fiber Mode | Singlemode |
| Fiber Type | G.657.A2/B2 |
| Insertion Loss, typical note | Insertion loss is measured at 1310 and 1550 nm |
| Return Loss, minimum, connector A | 0.3 dB |
| Return Loss, minimum, connector B | 0.3 dB |
Environmental specifications
| Operating Temperature | -40 °C to +75 °C (-40 °F to +167 °F) |
| Storage Temperature | -40 °C to +75 °C (-40 °F to +167 °F) |
| Environmental Space | Indoor/Outdoor |
Packaging and weights
| Cable weight | 29 kg/km | 19.487 lb/kft |
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Wireless Fiber Cable Assemblies |
| Product Brand | HELIAX® |
| Product Series | DFT |
| Ordering Note | ANDREW® non-standard product |
General specifications
| Construction Type | Discrete fiber trunk |
| Interface, Connector A | HHC (HELIAX® Hardened Connector) OptiTip & HMFOC Compatible |
| Interface Feature, connector A | Uniboot |
| Interface Body Style, connector A | Straight |
| Interface, Connector B | LC/UPC |
| Interface Feature, connector B | Uniboot |
| Interface Body Style, connector B | Straight |
| Jacket Color | Black |
| Jacket Marking | Meters |
| Pulling Grips, quantity | 1 |
| Total Fibers, quantity | 12 |
Dimensions
| Cable Assembly Length Range (m) | 1 – 100 |
| Diameter Over Jacket | 5.4 mm | 0.213 in |
Material specifications
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
Mechanical specifications
| Minimum Bend Radius, furcation | 30 mm | 1.181 in |
| Minimum Bend Radius, loaded | 108 mm | 4.252 in |
| Minimum Bend Radius, unloaded | 54 mm | 2.126 in |
Optical specifications
| Fiber Mode | Singlemode |
| Fiber Type | G.657.A2/B2 |
| Insertion Loss, typical note | Insertion loss is measured at 1310 and 1550 nm |
| Return Loss, minimum, connector A | 0.3 dB |
| Return Loss, minimum, connector B | 0.3 dB |
Environmental specifications
| Operating Temperature | -40 °C to +75 °C (-40 °F to +167 °F) |
| Storage Temperature | -40 °C to +75 °C (-40 °F to +167 °F) |
| Environmental Space | Indoor/Outdoor |
Packaging and weights
| Cable weight | 29 kg/km | 19.487 lb/kft |
| Click on image to enlarge. |
