BCU158-4M10M-7X
Base product: BCU-SERIES-GROMMETS

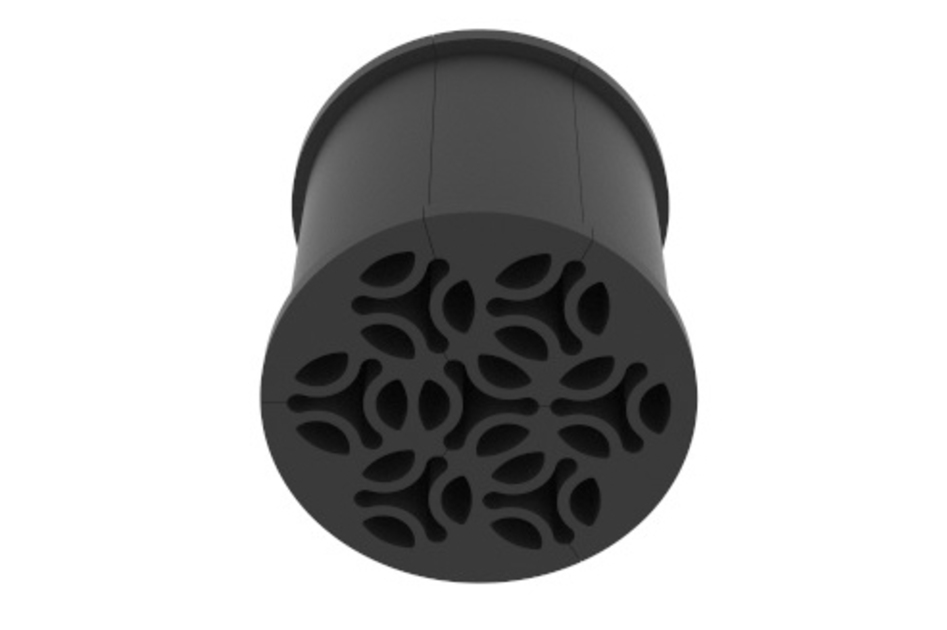

Grommet - Universal barrel cushion for 4-10 mm cables, accommodates up to quantity 7ea cables, for 1-5/8 in Standard or Click-on Hanger
Specifications
Product classification
| Product Type | Multi-hole grommet |
| Product Brand | HELIAX® |
| Ordering Note | ANDREW® standard product (Global) |
General specifications
| Adapter Type | Adapter |
| Cables per Hanger | 7 |
| Color | Black |
Dimensions
| Compatible Diameter, maximum | 9.906 mm | 0.39 in |
| Compatible Diameter, minimum | 4.064 mm | 0.16 in |
Material specifications
| Material Type | EPDM rubber |
Environmental specifications
| Installation temperature | -30 °C to +60 °C (-22 °F to +140 °F) |
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
Packaging and weights
| Height, packed | 27.9 cm | 10.984 in |
| Width, packed | 30.5 cm | 12.008 in |
| Length, packed | 5.59 cm | 2.201 in |
| Packaging quantity | 10 |
| Weight, gross | 0.8 kg | 1.764 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
