SCU

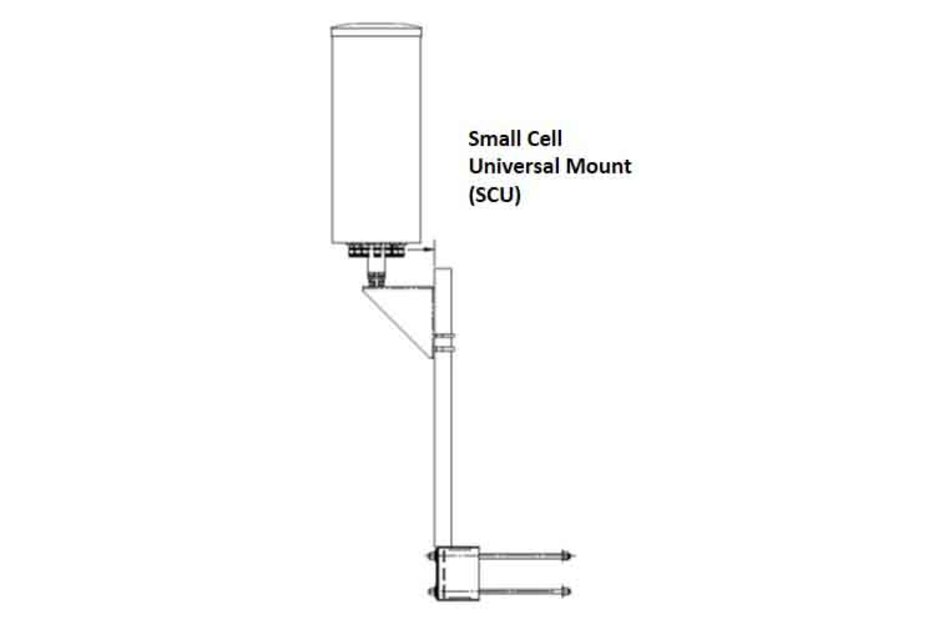

Small Cell Antenna Universal Mount with Vertical Pipe Standoff
Specifications
Product classification
| Product Type | Stand-off mount | Wood pole mount |
General specifications
| Mounting | Wood pole |
Dimensions
| Height | 1066.8 mm | 42 in |
| Width | 152.4 mm | 6 in |
| Length | 406.4 mm | 16 in |
| Mounting Diameter, maximum | 330.2 mm | 13 in |
| Stand-off Distance | 889 mm | 35 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
Packaging and weights
| Included | Attachment hardware | Universal Small Cell Antenna Bracket – see drawing for compatible models |
| Packaging quantity | 1 |
| Weight, net | 12.8 lb | 28.219 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Product Type | Stand-off mount | Wood pole mount |
General specifications
| Mounting | Wood pole |
Dimensions
| Height | 1066.8 mm | 42 in |
| Width | 152.4 mm | 6 in |
| Length | 406.4 mm | 16 in |
| Mounting Diameter, maximum | 330.2 mm | 13 in |
| Stand-off Distance | 889 mm | 35 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
Packaging and weights
| Included | Attachment hardware | Universal Small Cell Antenna Bracket – see drawing for compatible models |
| Packaging quantity | 1 |
| Weight, net | 12.8 lb | 28.219 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
