SCPTW26-5GT

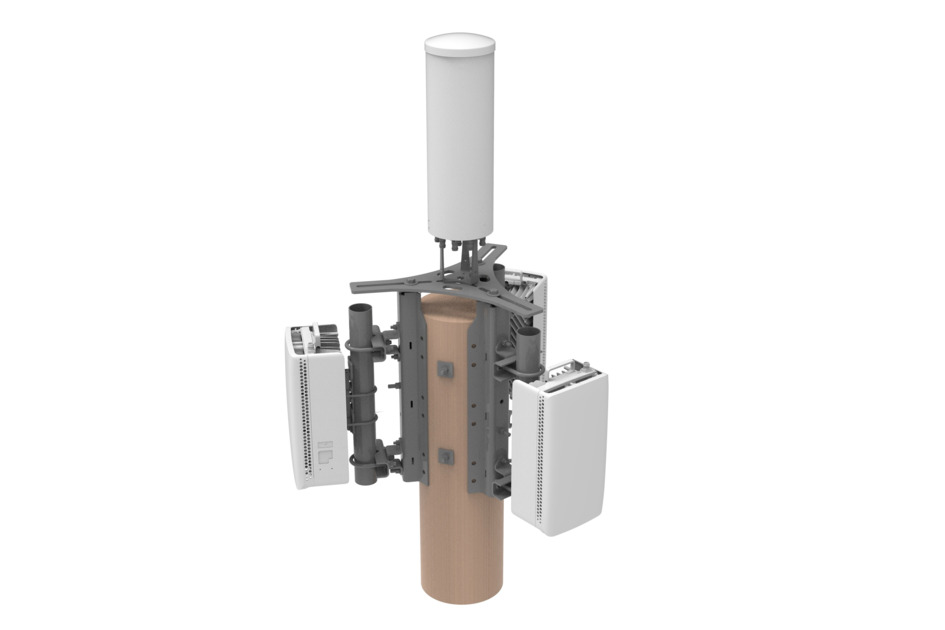

Small Cell Wrap Around - Antenna Pole Top Mount plus Trisector pipe mounts for 5G Radios (for Poles 7in to 11in OD)
Specifications
Product classification
| Product Type | Pole mount kit | Wood pole mount |
General specifications
| Mounting | Wood pole |
| Pipe, quantity | 3 |
| Sectors, quantity | 3 |
Dimensions
| Height | 685.800 mm | 27 in |
| Width | 406.4 mm | 16 in |
| Length | 406.4 mm | 16 in |
| Pipe Length | 609.600 mm | 24 in |
| Mounting Diameter, maximum | 279.400 mm | 11 in |
| Mounting Diameter, minimum | 177.800 mm | 7 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Attachment hardware | Plain end pipes (3) | Threaded rod |
| Packaging quantity | 1 |
| Weight, net | 58.15 lb | 128.199 lb |
Product classification
| Product Type | Pole mount kit | Wood pole mount |
General specifications
| Mounting | Wood pole |
| Pipe, quantity | 3 |
| Sectors, quantity | 3 |
Dimensions
| Height | 685.800 mm | 27 in |
| Width | 406.4 mm | 16 in |
| Length | 406.4 mm | 16 in |
| Pipe Length | 609.600 mm | 24 in |
| Mounting Diameter, maximum | 279.400 mm | 11 in |
| Mounting Diameter, minimum | 177.800 mm | 7 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Attachment hardware | Plain end pipes (3) | Threaded rod |
| Packaging quantity | 1 |
| Weight, net | 58.15 lb | 128.199 lb |
Documentation & downloads
