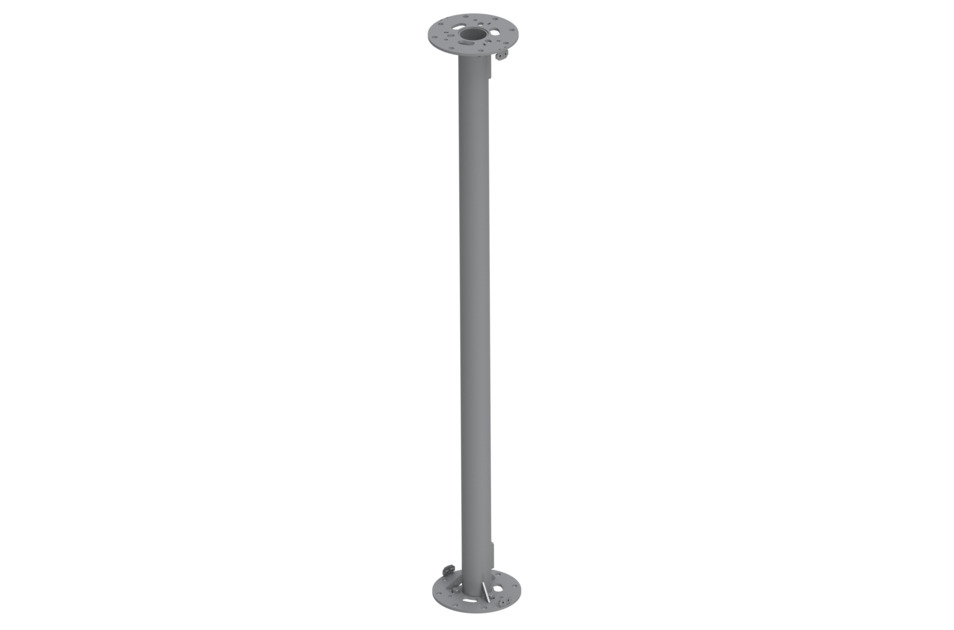

860685489 | 7FT SPOOL FOR 12” ANDREW POLES
7FT TALL SPOOL FOR 12” ANDREW POLES FOR ACTIVE AND PASSIVE PANEL ANTENNA OR RRU MOUNTING
Features and benefits
Mounts directly to ANDREW 12.75" OD poles with no additional mounting materials.
Center mast is 4" OD
Center mast is 4" OD
Specifications
Product classification
| Product Type | 5G/mmWave |
| Product Brand | Metro Cell |
| Ordering Note | ANDREW® standard product with terms |
| Warranty | One year |
General specifications
| Antenna Compatibility, ANDREW | Panel Antenna | mmWave active antennas |
| Antenna Compatibility, Other Vendors | mmWave active antennas |
| Antennas Included | None |
| Color | Light Gray (RAL 7035) |
| Color Options | Beige-Grey (RAL 7006) | Black (RAL 9005) | Brown (RAL 8014) | Faux Concrete | Green (RAL 6005) | Metallic Silver | White (RAL 9010) |
| Radio Compatibility, Ericsson | 1281 | 6701 | 6705 |
| Radio Compatibility, Nokia | AEUB | AEWB | AEWD/AEWE |
| Radio Compatibility Samsung | AT1K01 | AT1K02 | AT1K0X |
| Radios Included | None |
Dimensions
| Height | 2133.600 mm | 84 in |
| Width | 304.800 mm | 12 in |
| Mounting Bolt Circle Diameter | 203.200 mm | 8 in |
Material specifications
| Finish Aluminum | Chromate |
| Finish Concealment Covers | Powder coated |
| Material Type | Steel |
Packaging and weights
| Weight (unloaded) | 24.208 kg | 53.37 lb |
Product classification
| Product Type | 5G/mmWave |
| Product Brand | Metro Cell |
| Ordering Note | ANDREW® standard product with terms |
| Warranty | One year |
General specifications
| Antenna Compatibility, ANDREW | Panel Antenna | mmWave active antennas |
| Antenna Compatibility, Other Vendors | mmWave active antennas |
| Antennas Included | None |
| Color | Light Gray (RAL 7035) |
| Color Options | Beige-Grey (RAL 7006) | Black (RAL 9005) | Brown (RAL 8014) | Faux Concrete | Green (RAL 6005) | Metallic Silver | White (RAL 9010) |
| Radio Compatibility, Ericsson | 1281 | 6701 | 6705 |
| Radio Compatibility, Nokia | AEUB | AEWB | AEWD/AEWE |
| Radio Compatibility Samsung | AT1K01 | AT1K02 | AT1K0X |
| Radios Included | None |
Dimensions
| Height | 2133.600 mm | 84 in |
| Width | 304.800 mm | 12 in |
| Mounting Bolt Circle Diameter | 203.200 mm | 8 in |
Material specifications
| Finish Aluminum | Chromate |
| Finish Concealment Covers | Powder coated |
| Material Type | Steel |
Packaging and weights
| Weight (unloaded) | 24.208 kg | 53.37 lb |
