ATCB-B01-Y-C30

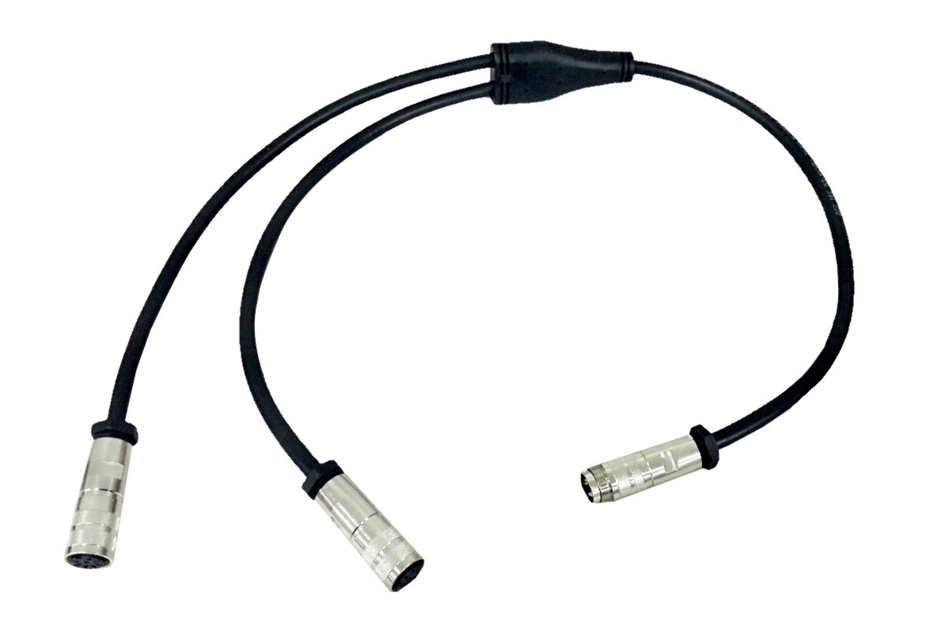

AISG RET Control Cable Two-way Splitter
Specifications
Product classification
| Product Type | RET splitter |
General specifications
| AISG Input Connector | 8-pin DIN Male |
| AISG Input Connector Body Style | Straight |
| AISG Input Connector Quantity | 1 |
| AISG Output Connector | 8-pin DIN Female |
| AISG Output Connector Body Style | Straight |
| AISG Output Connector Quantity | 2 |
| Braid Coverage | 85 % |
| Color | Black |
| Data Conductor Type | 0.24 mm² (24 AWG) twisted pair |
| Data Conductors, quantity | 2 |
| EU Certification | CB | CE |
| Power Conductor Type | 0.75 mm² (19 AWG) stranded |
| Power Conductors, quantity | 4 |
| Shield Material | Tinned copper |
| Total Conductors, quantity | 6 |
Dimensions
| Length, input cable | 0.3 m | 0.984 ft |
| Length, output cable | 0.3 m | 0.984 ft |
| Diameter Over Jacket | 8 mm | 0.315 in |
Electrical specifications
| Protocol | AISG 1.1 | AISG 2.0 |
| Voltage, maximum | 300 V |
Material specifications
| Jacket Material | Thermoplastic elastomer (TPE) |
Environmental specifications
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Relative Humidity | Up to 100% |
| Climatic Sequence Test Method | IEC 60068-2-14 |
| Cold Exposure Test Method | IEC 60068-2-1 |
| Corrosion Test Method | IEC 60068-2-11, Test Condition Ka |
| Damp Heat Exposure Test Method | IEC 60068-2-30, Test Condition Db |
| Heat Exposure Test Method | IEC 60068-2-2 |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
| Rain Simulation Test Method | IEC 60068-2-18, Test Condition Ra, Method 1 |
| UV Resistance Test Method | IEC 60068-2-5, Test Condition B |
Packaging and weights
| Weight, net | 0.3 kg | 0.661 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Product Type | RET splitter |
General specifications
| AISG Input Connector | 8-pin DIN Male |
| AISG Input Connector Body Style | Straight |
| AISG Input Connector Quantity | 1 |
| AISG Output Connector | 8-pin DIN Female |
| AISG Output Connector Body Style | Straight |
| AISG Output Connector Quantity | 2 |
| Braid Coverage | 85 % |
| Color | Black |
| Data Conductor Type | 0.24 mm² (24 AWG) twisted pair |
| Data Conductors, quantity | 2 |
| EU Certification | CB | CE |
| Power Conductor Type | 0.75 mm² (19 AWG) stranded |
| Power Conductors, quantity | 4 |
| Shield Material | Tinned copper |
| Total Conductors, quantity | 6 |
Dimensions
| Length, input cable | 0.3 m | 0.984 ft |
| Length, output cable | 0.3 m | 0.984 ft |
| Diameter Over Jacket | 8 mm | 0.315 in |
Electrical specifications
| Protocol | AISG 1.1 | AISG 2.0 |
| Voltage, maximum | 300 V |
Material specifications
| Jacket Material | Thermoplastic elastomer (TPE) |
Environmental specifications
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Relative Humidity | Up to 100% |
| Climatic Sequence Test Method | IEC 60068-2-14 |
| Cold Exposure Test Method | IEC 60068-2-1 |
| Corrosion Test Method | IEC 60068-2-11, Test Condition Ka |
| Damp Heat Exposure Test Method | IEC 60068-2-30, Test Condition Db |
| Heat Exposure Test Method | IEC 60068-2-2 |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
| Rain Simulation Test Method | IEC 60068-2-18, Test Condition Ra, Method 1 |
| UV Resistance Test Method | IEC 60068-2-5, Test Condition B |
Packaging and weights
| Weight, net | 0.3 kg | 0.661 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
