Warning Icon
This product was discontinued on: June 30, 2018

For other alternatives, please contact us for more information.

0 Replacement products available

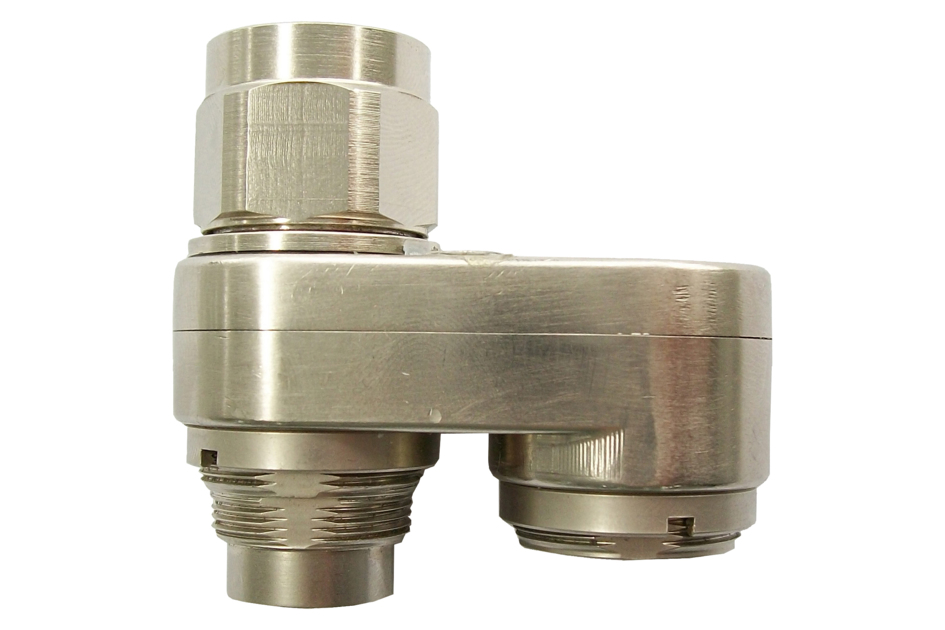

AISG-T

AISG Three-way Tee

Finish making your selections or clear them to view relevant specifications.
Download specifications
Features and benefits
  • Compatible with all Argus antennas except for the CNNPX series

Product classification

Product Type RET splitter

General specifications

AISG Input Connector 8-pin DIN Male
AISG Input Connector Body Style Straight
AISG Input Connector Quantity 1
AISG Output Connector 8-pin DIN Female
AISG Output Connector Body Style Straight
AISG Output Connector Quantity 2
Color Silver
Data Conductors, quantity 2
Power Conductors, quantity 4
Total Conductors, quantity 7

Dimensions

Height 44 mm | 1.732 in
Depth 22 mm | 0.866 in
Length 48 mm | 1.89 in

Electrical specifications

Protocol AISG 1.1 | AISG 2.0

Environmental specifications

Operating Temperature -40 °C to +70 °C (-40 °F to +158 °F)
Relative Humidity Up to 95%, non-condensing
Corrosion Test Method IEC 60068-2-11, Test Condition Ka
Ingress Protection Test Method IEC 60529:2001, IP67

Packaging and weights

Weight, net 0.1 kg | 0.22 lb

Regulatory compliance/certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
