V6S6P3-360S-F4
30-port small cell antenna, 12x 1695–2690, 12x 3400-3800 and 6x 5150-5925 MHz. 360° Horizontal Beamwidth, fixed tilt.
Features and benefits
- Multi-operator small cell antenna for up to three operators with one antenna
- Connectors grouped by operator
- Great performance in small package
Specifications
General specifications
| Antenna Type | Small Cell |
| Band | Multiband |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN |
| Radome Material | ASA, UV stabilized |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 30 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 0 |
| RF Connector Quantity, total | 30 |
Dimensions
| Length | 610 mm | 24.016 in |
| Net Weight, without mounting kit | 19.3 kg | 42.549 lb |
| Outer Diameter | 370 mm | 14.567 in |
5 ghz port power table
| Click on image to enlarge. |

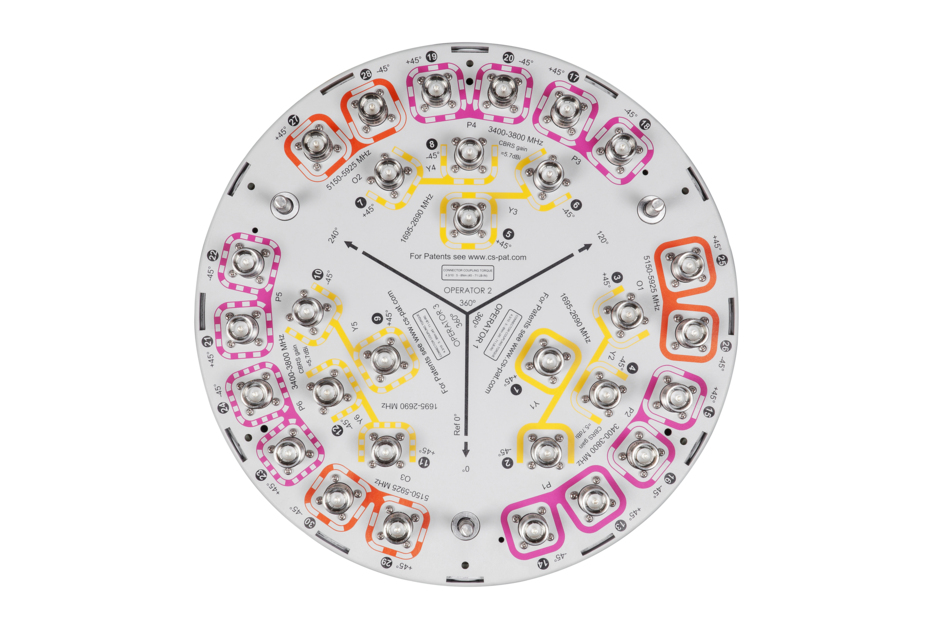

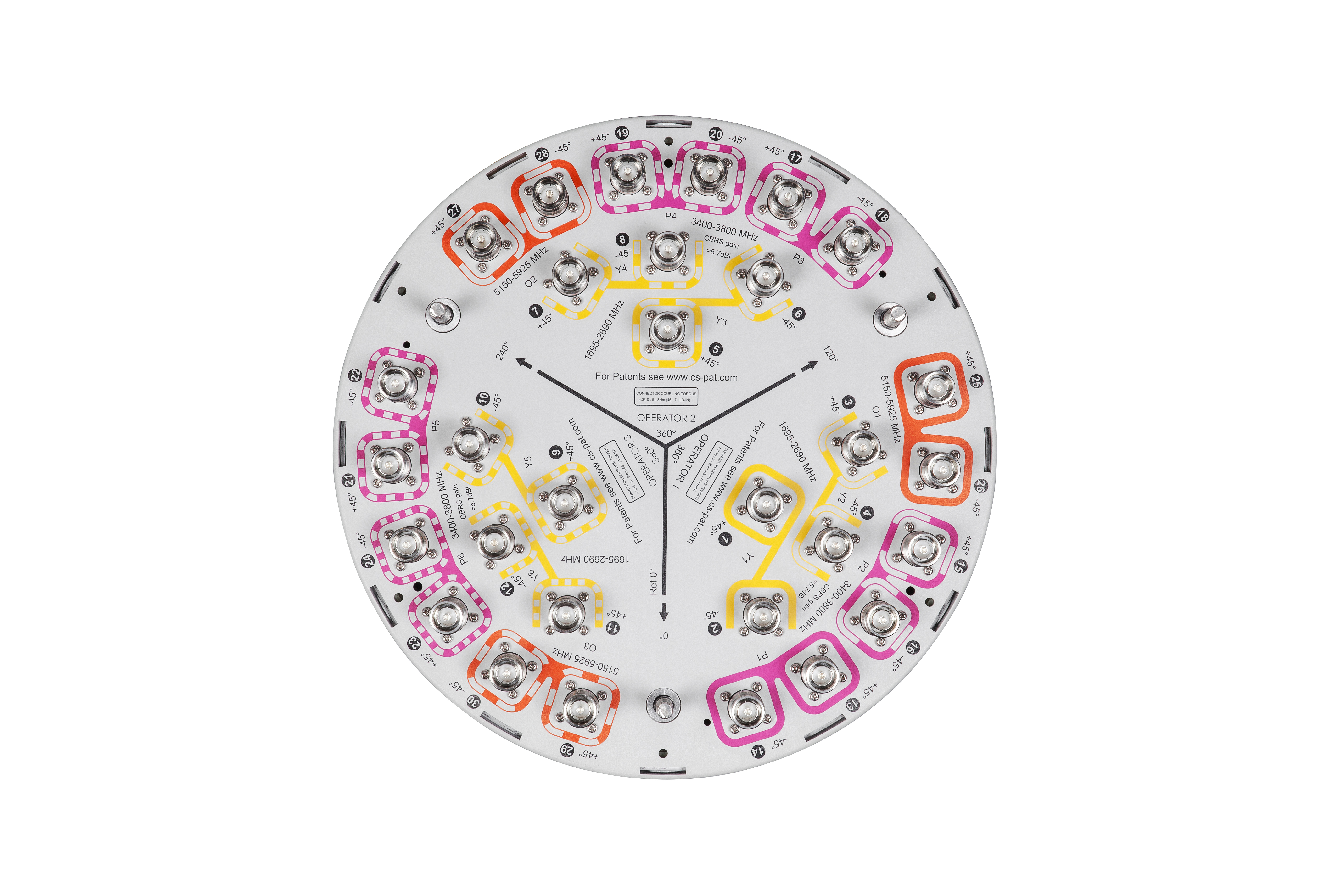

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 1695 – 2690 MHz | 3400 – 3800 MHz | 5150 – 5925 MHz |
| Polarization | ±45° |
Electrical specifications
| Frequency Band, MHz | 1695–1920 | 1920–2180 | 2300–2690 | 3400–3800 | 5150–5925 |
| Gain, dBi | 7.0 | 7.3 | 7.8 | 6.1 | 4.0 |
| Beamwidth, Horizontal, degrees | 360 | 360 | 360 | 360 | 360 |
| Beamwidth, Vertical, degrees | 22.4 | 20.2 | 15.3 | 32.6 | 25.2 |
| Beam Tilt, degrees | 4 | 4 | 4 | 0 | 0 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -140 | |
| Input Power per Port at 50°C, maximum, watts | 75 | 75 | 75 | 35 | 5 |
Mechanical specifications
| Effective Projective Area (EPA), frontal | 0.12 m² | 1.292 ft² |
| Wind Loading @ Velocity, maximum | 129.0 N @ 150 km/h (29.0 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 478 mm | 18.819 in |
| Depth, packed | 464 mm | 18.268 in |
| Length, packed | 894 mm | 35.197 in |
| Weight, gross | 24.3 kg | 53.572 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
General specifications
| Antenna Type | Small Cell |
| Band | Multiband |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN |
| Radome Material | ASA, UV stabilized |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 30 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 0 |
| RF Connector Quantity, total | 30 |
Dimensions
| Length | 610 mm | 24.016 in |
| Net Weight, without mounting kit | 19.3 kg | 42.549 lb |
| Outer Diameter | 370 mm | 14.567 in |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 1695 – 2690 MHz | 3400 – 3800 MHz | 5150 – 5925 MHz |
| Polarization | ±45° |
Electrical specifications
| Frequency Band, MHz | 1695–1920 | 1920–2180 | 2300–2690 | 3400–3800 | 5150–5925 |
| Gain, dBi | 7.0 | 7.3 | 7.8 | 6.1 | 4.0 |
| Beamwidth, Horizontal, degrees | 360 | 360 | 360 | 360 | 360 |
| Beamwidth, Vertical, degrees | 22.4 | 20.2 | 15.3 | 32.6 | 25.2 |
| Beam Tilt, degrees | 4 | 4 | 4 | 0 | 0 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -140 | |
| Input Power per Port at 50°C, maximum, watts | 75 | 75 | 75 | 35 | 5 |
Mechanical specifications
| Effective Projective Area (EPA), frontal | 0.12 m² | 1.292 ft² |
| Wind Loading @ Velocity, maximum | 129.0 N @ 150 km/h (29.0 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 478 mm | 18.819 in |
| Depth, packed | 464 mm | 18.268 in |
| Length, packed | 894 mm | 35.197 in |
| Weight, gross | 24.3 kg | 53.572 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Documentation & downloads
Assembly drawing
Product information
Product specification
Assembly drawing
Product compliance documentation
Product information
Product specification
