V35-011-01-A0-E

4-port Venue Antenna, 2x 1695-2690 and 2x 3300-4200 MHz, 35° HPBW, Fixed Tilt

Finish making your selections or clear them to view relevant specifications.
Find a partner
Features and benefits
  • 35° azimuth and 35° elevation beamwidth
  • Designed with MetaLens™ CleanBeam™ technology
  • Supports Mid band 2T2R and High band 2T2R

General specifications

Band Multiband
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
RF Connector Interface 4.3-10 Female
RF Connector Quantity, high band 2
RF Connector Quantity, mid band 2
RF Connector Quantity, total 4

Dimensions

Width 404 mm | 15.906 in
Depth 258 mm | 10.157 in
Length 544 mm | 21.417 in
Net Weight, without mounting kit 6.5 kg | 14.330 lb

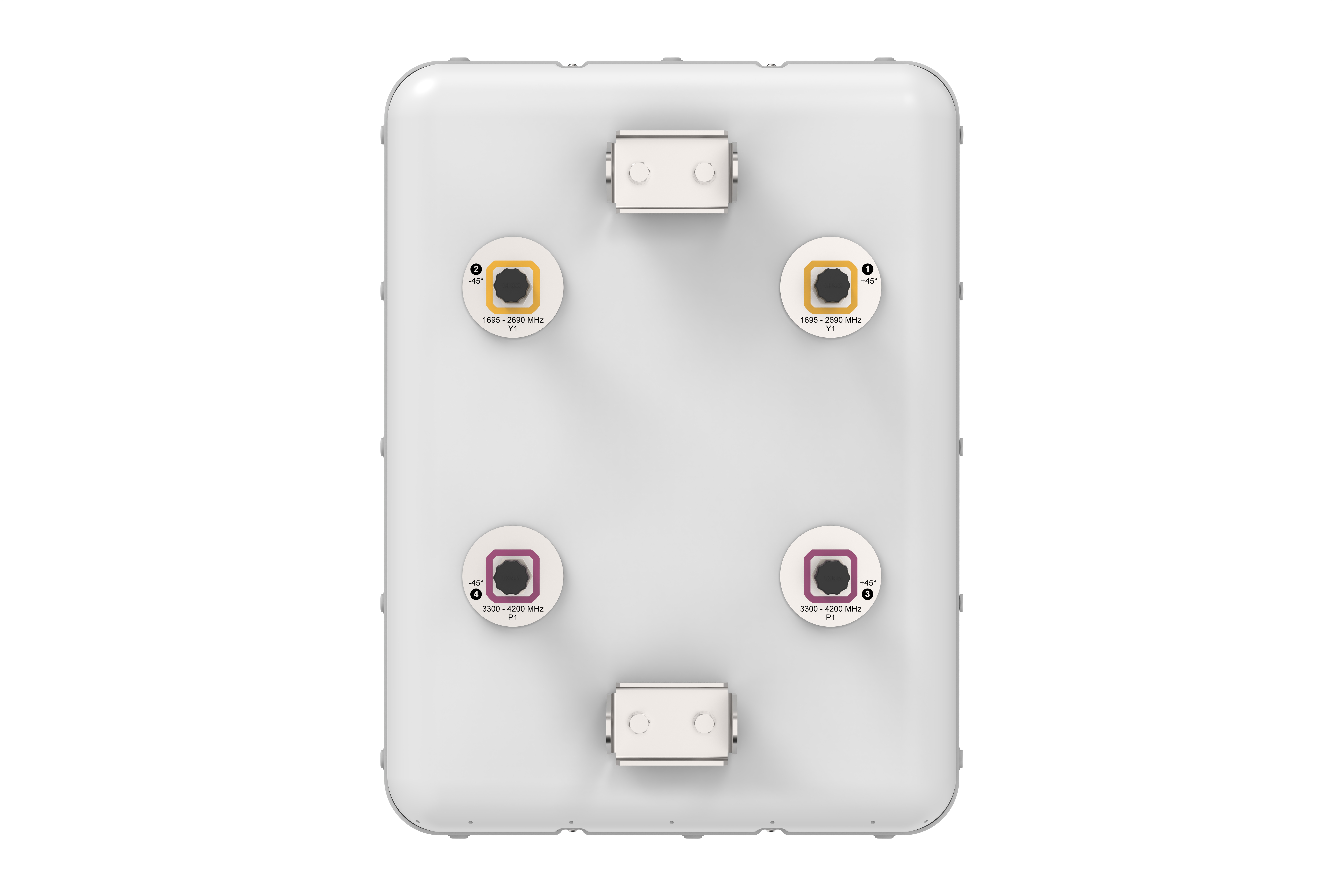

Port configuration

Click on image to enlarge.

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 1695 – 2690 MHz | 3300 – 4200 MHz
Polarization ±45°

Electrical specifications

Y1 Y1 Y1 Y1 P1 P1 P1
Frequency Band, MHz 1695–1890 1850–1990 1990–2200 2200–2690 3300–3800 3550–3700 3700–4200
RF Port 1,2 1,2 1,2 1,2 3,4 3,4 3,4
Gain, dBi 14.3 14.5 14.9 16.8 14.9 14.8 15.3
Beamwidth, Horizontal, degrees 36 35 35 28 32 32 30
Beamwidth, Vertical, degrees 37 36 35 28 34 35 32
USLS (First Lobe), dB 27 24 24 23 25 30 22
Front-to-Back Ratio at 180°, dB 36 34 39 42 41 41 42
Front-to-Back Ratio, Copolarization 180° ± 30°, dB 35 34 35 39 34 34 36
Isolation, Cross Polarization, dB 25 25 25 25 25 25 25
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -153 -153 -153 -153 -153
Input Power per Port, maximum, watts 200 200 200 200 80 80 80

Mechanical specifications

Wind Loading @ Velocity, frontal 281.0 N @ 150 km/h (63.2 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 179.0 N @ 150 km/h (40.2 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 281.0 N @ 150 km/h (63.2 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and weights

Width, packed 528 mm | 20.787 in
Depth, packed 561 mm | 22.087 in
Length, packed 646 mm | 25.433 in
Weight, gross 16.5 kg | 36.376 lb

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ROHS Compliant
UK-ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance
