UU-360S-F
4-port small cell antenna, 4x 3300-5000 MHz. 360° Horizontal Beamwidth, fixed tilt.
Features and benefits
- Light weight, low profile omnidirectional antenna ideal for low to moderate gain applications
- Compact and small footprint, space-saving design for high-density environments
- Supports up to 4T4R applications
Specifications
General specifications
| Antenna Type | Small Cell |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | ASA, UV stabilized |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 4 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 0 |
| RF Connector Quantity, total | 4 |
Dimensions
| Width | 200 mm | 7.874 in |
| Depth | 200 mm | 7.874 in |
| Length | 600 mm | 23.622 in |
| Net Weight, without mounting kit | 4.7 kg | 10.362 lb |

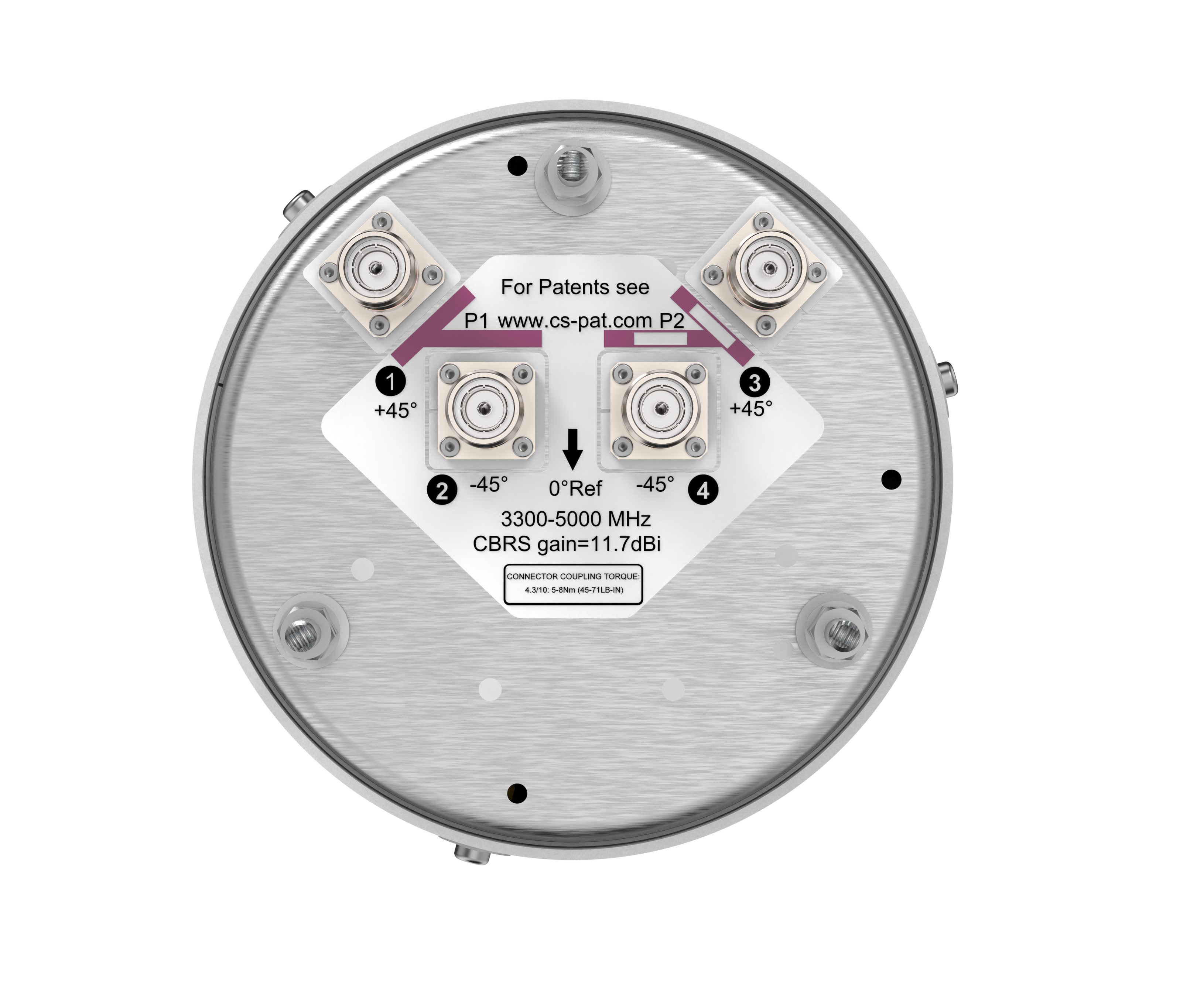

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 3300 – 5000 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 360 W |
Electrical specifications
| Frequency Band, MHz | 3300–3600 | 3550–3700 | 3600–3900 | 3900–4200 | 4200–4500 | 4500–5000 |
| Gain, dBi | 11.5 | 11.7 | 11.6 | 11.9 | 11.7 | 14.1 |
| Beamwidth, Horizontal, degrees | 360 | 360 | 360 | 360 | 360 | 360 |
| Beamwidth, Vertical, degrees | 9.1 | 9.1 | 8.5 | 7.8 | 7.1 | 6.7 |
| Beam Tilt, degrees | 4 | 4 | 4 | 4 | 4 | 4 |
| USLS (First Lobe), dB | 15 | 15 | 15 | 15 | 15 | 15 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 28 | 28 | 28 | 28 | 28 | 28 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| Input Power per Port at 50°C, maximum, watts | 125 | 125 | 125 | 125 | 125 | 125 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 58.0 N @ 150 km/h (13.0 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 58.0 N @ 150 km/h (13.0 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 150.0 N @ 150 km/h (33.7 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 58.0 N @ 150 km/h (13.0 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 300 mm | 11.811 in |
| Depth, packed | 320 mm | 12.598 in |
| Length, packed | 850 mm | 33.465 in |
| Weight, gross | 7.3 kg | 16.094 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| ROHS | Compliant |
| UK-ROHS | Compliant |
General specifications
| Antenna Type | Small Cell |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | ASA, UV stabilized |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 4 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 0 |
| RF Connector Quantity, total | 4 |
Dimensions
| Width | 200 mm | 7.874 in |
| Depth | 200 mm | 7.874 in |
| Length | 600 mm | 23.622 in |
| Net Weight, without mounting kit | 4.7 kg | 10.362 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 3300 – 5000 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 360 W |
Electrical specifications
| Frequency Band, MHz | 3300–3600 | 3550–3700 | 3600–3900 | 3900–4200 | 4200–4500 | 4500–5000 |
| Gain, dBi | 11.5 | 11.7 | 11.6 | 11.9 | 11.7 | 14.1 |
| Beamwidth, Horizontal, degrees | 360 | 360 | 360 | 360 | 360 | 360 |
| Beamwidth, Vertical, degrees | 9.1 | 9.1 | 8.5 | 7.8 | 7.1 | 6.7 |
| Beam Tilt, degrees | 4 | 4 | 4 | 4 | 4 | 4 |
| USLS (First Lobe), dB | 15 | 15 | 15 | 15 | 15 | 15 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 28 | 28 | 28 | 28 | 28 | 28 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| Input Power per Port at 50°C, maximum, watts | 125 | 125 | 125 | 125 | 125 | 125 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 58.0 N @ 150 km/h (13.0 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 58.0 N @ 150 km/h (13.0 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 150.0 N @ 150 km/h (33.7 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 58.0 N @ 150 km/h (13.0 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 300 mm | 11.811 in |
| Depth, packed | 320 mm | 12.598 in |
| Length, packed | 850 mm | 33.465 in |
| Weight, gross | 7.3 kg | 16.094 lb |

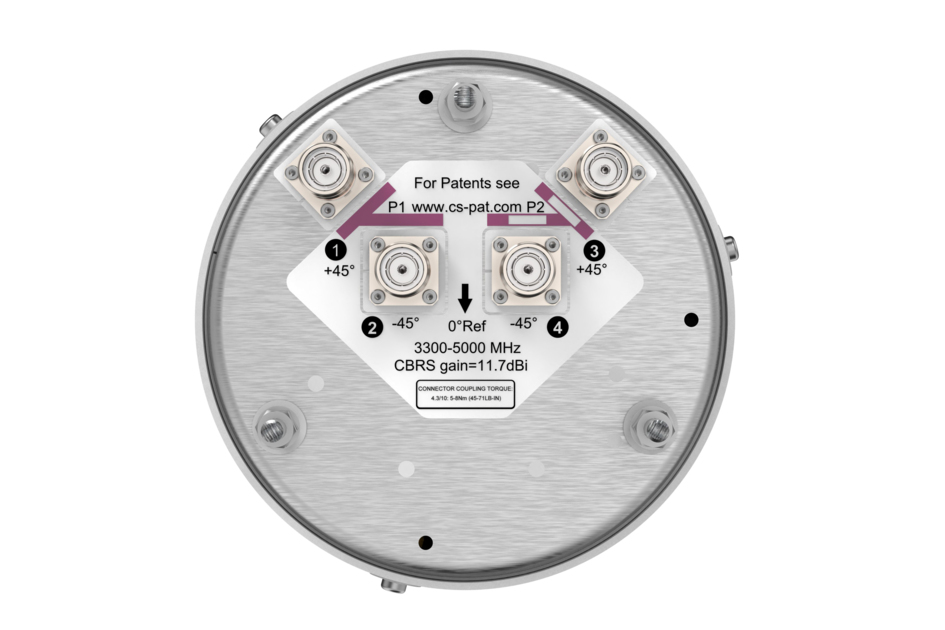

| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| ROHS | Compliant |
| UK-ROHS | Compliant |
