S4-90M-R1-V3
8-port Planar Array Antenna, 3300–3800 MHz, 90° HPBW, 1x RET, with M-LOC connectors
Features and benefits
- Planar array antenna – 4 columns
- Single internal RET control for all four antenna arrays
- Designed for beamforming, includes calibration port
- Optimized for software defined split six sector applications
- Fits in the ANDREW AEKT solution
- Includes M-LOC type cluster connector(s)
Specifications
General specifications
| Antenna Type | Sector |
| Band | Single band |
| Calibration Connector Interface | M-LOC |
| Calibration Connector Quantity | 1 |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Low loss circuit board |
| RF Connector Interface | M-LOC |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 8 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 0 |
| RF Connector Quantity, total | 8 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v1 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Internal RET | High band (1) |
| Power Consumption, idle state, maximum | 1 W |
| Power Consumption, normal conditions, maximum | 8 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 307 mm | 12.087 in |
| Depth | 118 mm | 4.646 in |
| Length | 850 mm | 33.465 in |
| Net Weight, without mounting kit | 8.8 kg | 19.401 lb |
| TDD Column Spacing | 42 mm | 1.654 in |

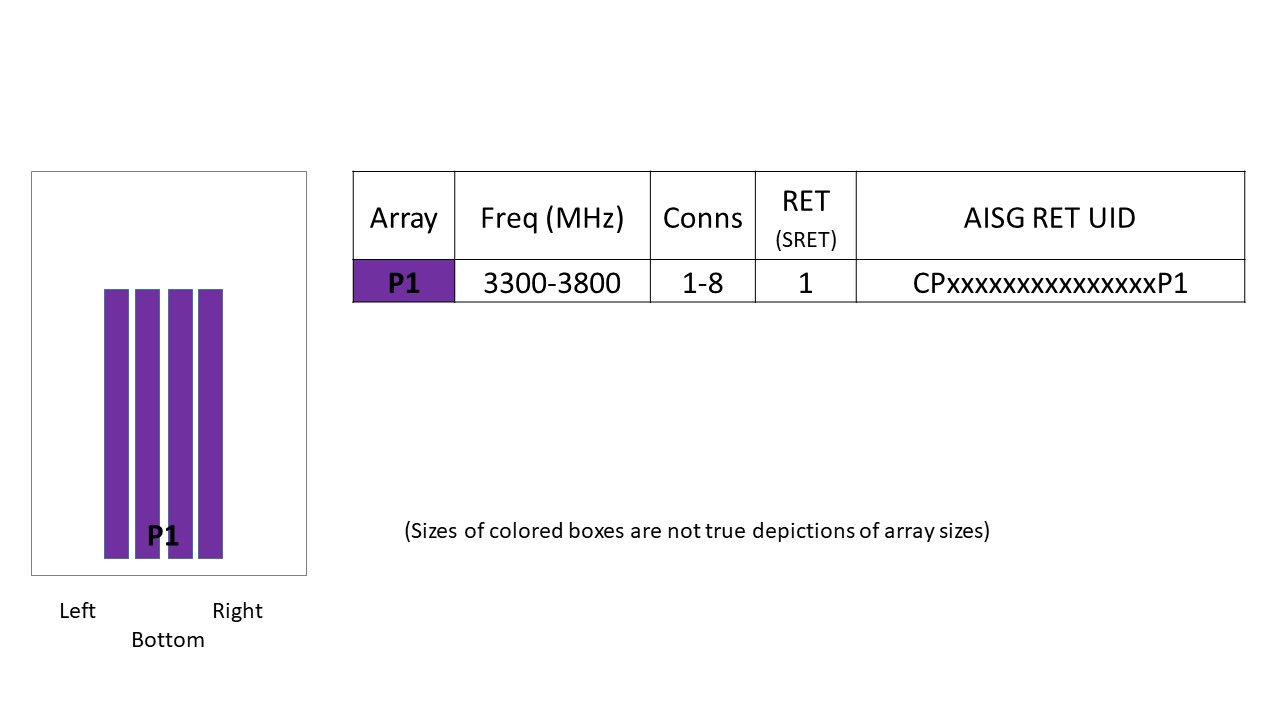

Array layout
| Click on image to enlarge. |

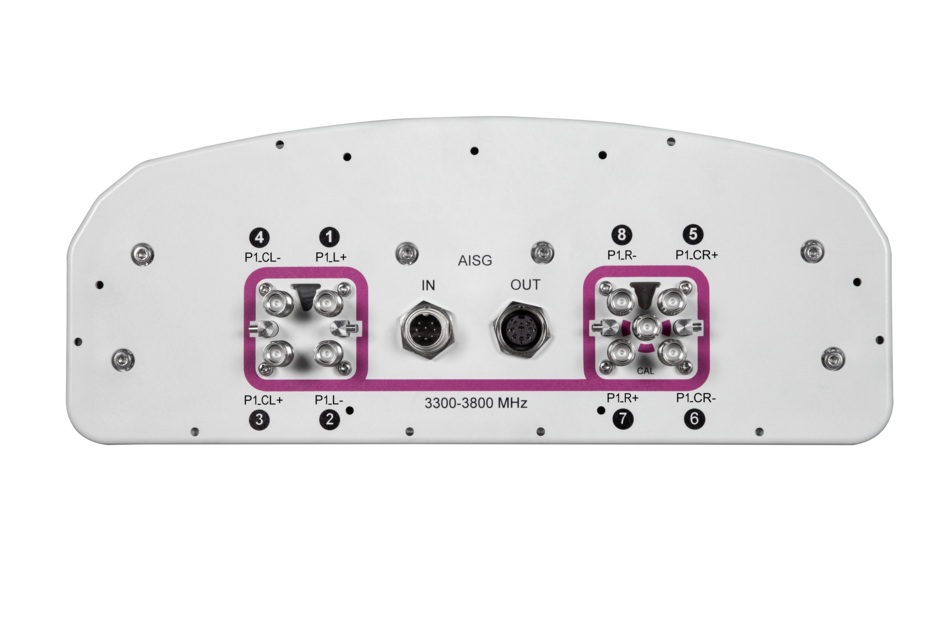

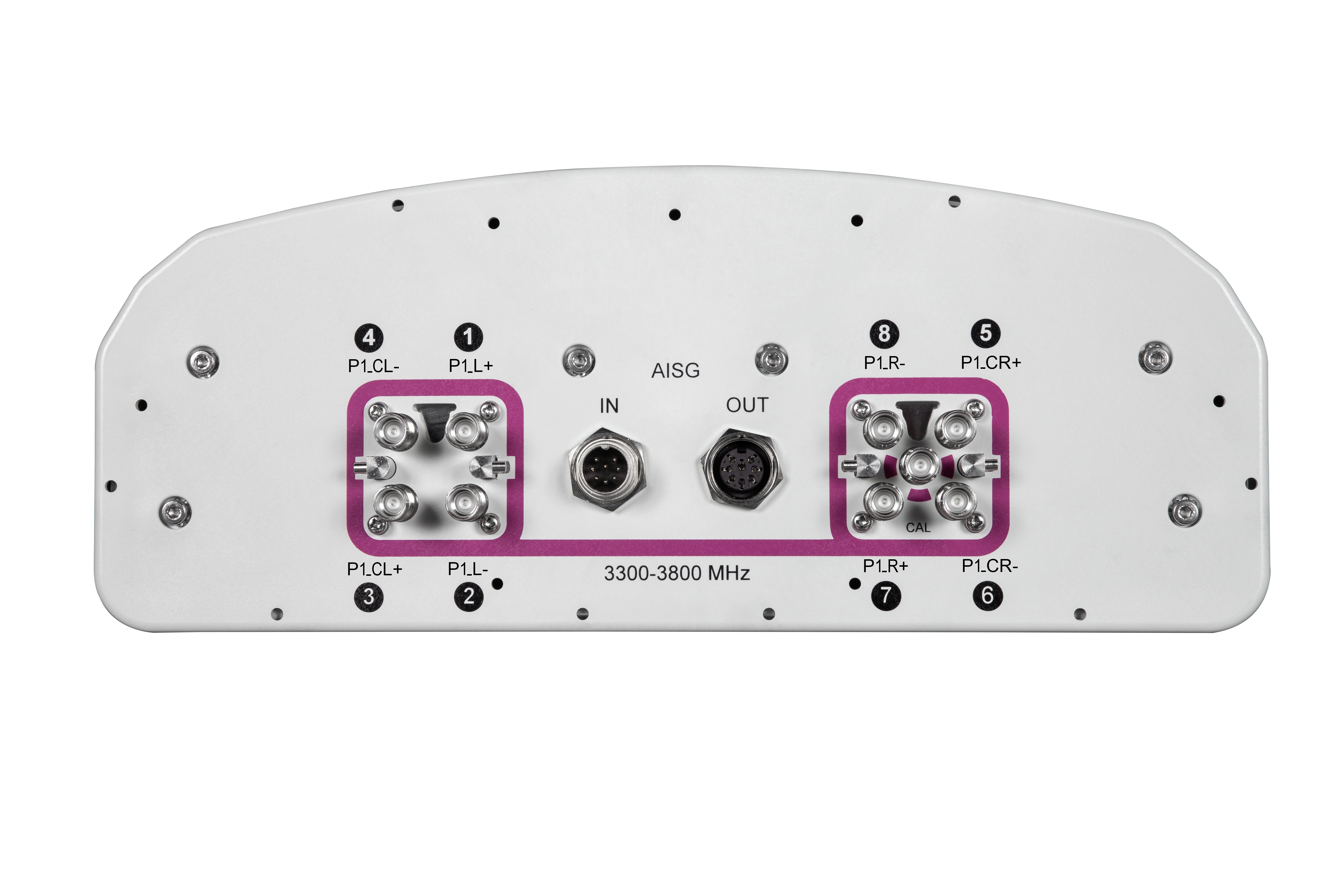

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 3300 – 3800 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 400 W @ 50 °C |
Electrical specifications
| Frequency Band, MHz | 3300–3600 | 3600–3800 |
| Gain, dBi | 15.4 | 15.7 |
| Beamwidth, Horizontal, degrees | 96 | 84 |
| Beamwidth, Vertical, degrees | 6.7 | 6.3 |
| Beam Tilt, degrees | 2–12 | 2–12 |
| USLS (First Lobe), dB | 18 | 17 |
| Front-to-Back Ratio at 180°, dB | 28 | 27 |
| Coupling level, Amp, Antenna port to Cal port, dB | 26 | 26 |
| Coupling level, max Amp Δ, Antenna port to Cal port, dB | ±2 | ±2 |
| Coupler, max Amp Δ, Antenna port to Cal port, dB | 0.9 | 0.9 |
| Coupler, max Phase Δ, Antenna port to Cal port, degrees | 7 | 7 |
| CPR at Boresight, dB | 18 | 18 |
| Isolation, Cross Polarization, dB | 25 | 25 |
| Isolation, Inter-band, dB | 19 | 19 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -140 | -140 |
| Input Power per Port at 50°C, maximum, watts | 75 | 75 |
Electrical specifications, broadcast 65
| Frequency Band, MHz | 3300–3600 | 3600–3800 |
| Gain, dBi | 16.3 | 16.4 |
| Beamwidth, Horizontal, degrees | 65 | 63 |
| Beamwidth, Horizontal Tolerance, degrees | ±3.2 | ±2.8 |
| Beamwidth, Vertical, degrees | 6.7 | 6.3 |
| Front-to-Back Total Power at 180° ± 30°, dB | 23 | 23 |
| USLS (First Lobe), dB | 18 | 18 |
Electrical specifications, service beam
| Frequency Band, MHz | 3300–3600 | 3600–3800 |
| Steered 0° Gain, dBi | 20.5 | 20.8 |
| Steered 0° Beamwidth, Horizontal, degrees | 26 | 24 |
| Steered 0° Front-to-Back Total Power at 180° ± 30°, dB | 31 | 28 |
| Steered 0° Horizontal Sidelobe, dB | 28 | 27 |
| Steered 30° Gain, dBi | 19.7 | 19.8 |
| Steered 30° Beamwidth, Horizontal, degrees | 28 | 26 |
Electrical specifications, soft split
| Frequency Band, MHz | 3300–3600 | 3600–3800 |
| Gain, dBi | 19.6 | 19.9 |
| Beamwidth, Horizontal, degrees | 31 | 28 |
| CPR at Beampeak, dB | 17 | 17 |
| Front-to-Back Total Power at 180° ± 30°, dB | 27 | 27 |
| Horizontal Sidelobe, dB | 18 | 17 |
Mechanical specifications
| Effective Projective Area (EPA), frontal | 0.27 m² | 2.906 ft² |
| Effective Projective Area (EPA), lateral | 0.05 m² | 0.538 ft² |
| Mechanical Tilt Range | 0°–25° |
| Wind Loading @ Velocity, frontal | 284.0 N @ 150 km/h (63.8 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 56.0 N @ 150 km/h (12.6 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 342.0 N @ 150 km/h (76.9 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 413 mm | 16.26 in |
| Depth, packed | 257 mm | 10.118 in |
| Length, packed | 1035 mm | 40.748 in |
| Weight, gross | 19.7 kg | 43.431 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
General specifications
| Antenna Type | Sector |
| Band | Single band |
| Calibration Connector Interface | M-LOC |
| Calibration Connector Quantity | 1 |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Low loss circuit board |
| RF Connector Interface | M-LOC |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 8 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 0 |
| RF Connector Quantity, total | 8 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v1 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Internal RET | High band (1) |
| Power Consumption, idle state, maximum | 1 W |
| Power Consumption, normal conditions, maximum | 8 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 307 mm | 12.087 in |
| Depth | 118 mm | 4.646 in |
| Length | 850 mm | 33.465 in |
| Net Weight, without mounting kit | 8.8 kg | 19.401 lb |
| TDD Column Spacing | 42 mm | 1.654 in |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 3300 – 3800 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 400 W @ 50 °C |
Electrical specifications
| Frequency Band, MHz | 3300–3600 | 3600–3800 |
| Gain, dBi | 15.4 | 15.7 |
| Beamwidth, Horizontal, degrees | 96 | 84 |
| Beamwidth, Vertical, degrees | 6.7 | 6.3 |
| Beam Tilt, degrees | 2–12 | 2–12 |
| USLS (First Lobe), dB | 18 | 17 |
| Front-to-Back Ratio at 180°, dB | 28 | 27 |
| Coupling level, Amp, Antenna port to Cal port, dB | 26 | 26 |
| Coupling level, max Amp Δ, Antenna port to Cal port, dB | ±2 | ±2 |
| Coupler, max Amp Δ, Antenna port to Cal port, dB | 0.9 | 0.9 |
| Coupler, max Phase Δ, Antenna port to Cal port, degrees | 7 | 7 |
| CPR at Boresight, dB | 18 | 18 |
| Isolation, Cross Polarization, dB | 25 | 25 |
| Isolation, Inter-band, dB | 19 | 19 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -140 | -140 |
| Input Power per Port at 50°C, maximum, watts | 75 | 75 |
Electrical specifications, broadcast 65
| Frequency Band, MHz | 3300–3600 | 3600–3800 |
| Gain, dBi | 16.3 | 16.4 |
| Beamwidth, Horizontal, degrees | 65 | 63 |
| Beamwidth, Horizontal Tolerance, degrees | ±3.2 | ±2.8 |
| Beamwidth, Vertical, degrees | 6.7 | 6.3 |
| Front-to-Back Total Power at 180° ± 30°, dB | 23 | 23 |
| USLS (First Lobe), dB | 18 | 18 |
Electrical specifications, service beam
| Frequency Band, MHz | 3300–3600 | 3600–3800 |
| Steered 0° Gain, dBi | 20.5 | 20.8 |
| Steered 0° Beamwidth, Horizontal, degrees | 26 | 24 |
| Steered 0° Front-to-Back Total Power at 180° ± 30°, dB | 31 | 28 |
| Steered 0° Horizontal Sidelobe, dB | 28 | 27 |
| Steered 30° Gain, dBi | 19.7 | 19.8 |
| Steered 30° Beamwidth, Horizontal, degrees | 28 | 26 |
Electrical specifications, soft split
| Frequency Band, MHz | 3300–3600 | 3600–3800 |
| Gain, dBi | 19.6 | 19.9 |
| Beamwidth, Horizontal, degrees | 31 | 28 |
| CPR at Beampeak, dB | 17 | 17 |
| Front-to-Back Total Power at 180° ± 30°, dB | 27 | 27 |
| Horizontal Sidelobe, dB | 18 | 17 |
Mechanical specifications
| Effective Projective Area (EPA), frontal | 0.27 m² | 2.906 ft² |
| Effective Projective Area (EPA), lateral | 0.05 m² | 0.538 ft² |
| Mechanical Tilt Range | 0°–25° |
| Wind Loading @ Velocity, frontal | 284.0 N @ 150 km/h (63.8 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 56.0 N @ 150 km/h (12.6 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 342.0 N @ 150 km/h (76.9 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 413 mm | 16.26 in |
| Depth, packed | 257 mm | 10.118 in |
| Length, packed | 1035 mm | 40.748 in |
| Weight, gross | 19.7 kg | 43.431 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
