RV4S4-65A-R6

18-port sector antenna, 2x 698–960, 8x 1695-2690 and 8x 3300–3800 MHz, 65° HPBW, 6x RET

Finish making your selections or clear them to view relevant specifications.
Find a partner
Features and benefits
  • Beam-forming weighting table available upon request
  • M-LOC cluster connector for 3.3-3.8GHz, equipped with calibration port
  • Provide a future-ready antenna solution with flexibility to reassign antenna, support 2T2R at 698-960MHz, 4T4R at 1695-2690MHz, and 8T8R at 3300-3800MHz
  • Combination of FDD MIMO antenna and 3.5GHz 8T8R TDD beam forming antenna, all in one for 5G ready
  • Retractable tilt indicator rods

General specifications

Antenna Type Sector
Band Multiband
Calibration Connector Interface M-LOC
Calibration Connector Quantity 1
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material Fiberglass, UV resistant
Radiator Material Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female | M-LOC
RF Connector Location Bottom
RF Connector Quantity, high band 16
RF Connector Quantity, mid band 0
RF Connector Quantity, low band 2
RF Connector Quantity, total 18

Remote electrical tilt (ret) information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 1 female | 1 male
Input Voltage 10–30 Vdc
Internal RET High band (5) | Low band (1)
Power Consumption, idle state, maximum 1 W
Power Consumption, normal conditions, maximum 8 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 395 mm | 15.551 in
Depth 228 mm | 8.976 in
Length 1600 mm | 62.992 in
Net Weight, without mounting kit 28.6 kg | 63.052 lb
TDD Column Spacing 42 mm | 1.654 in

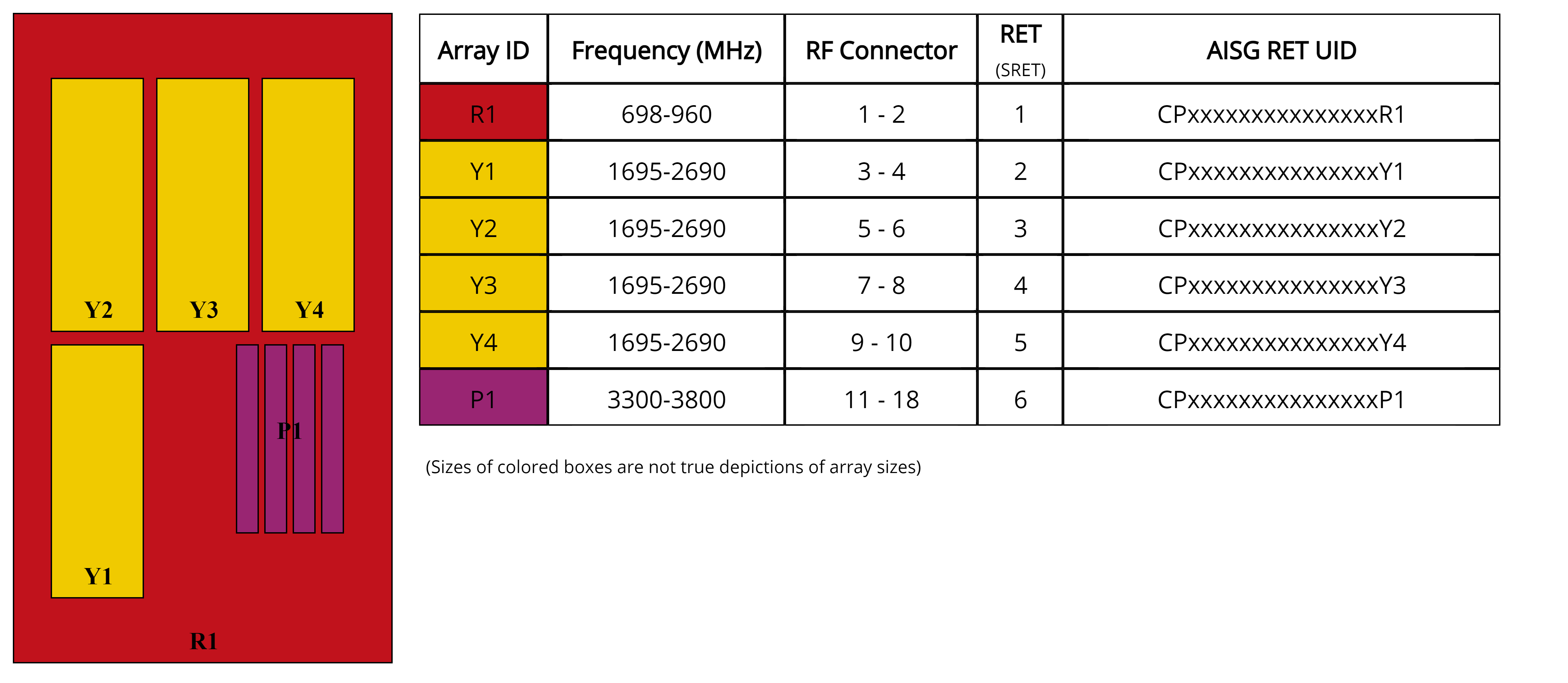

Array layout

Click on image to enlarge.

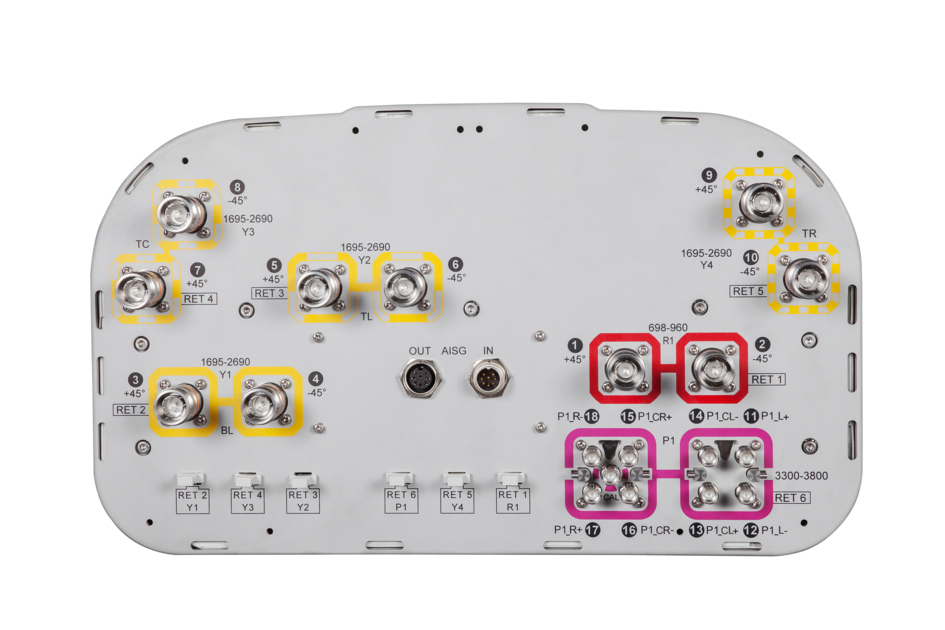

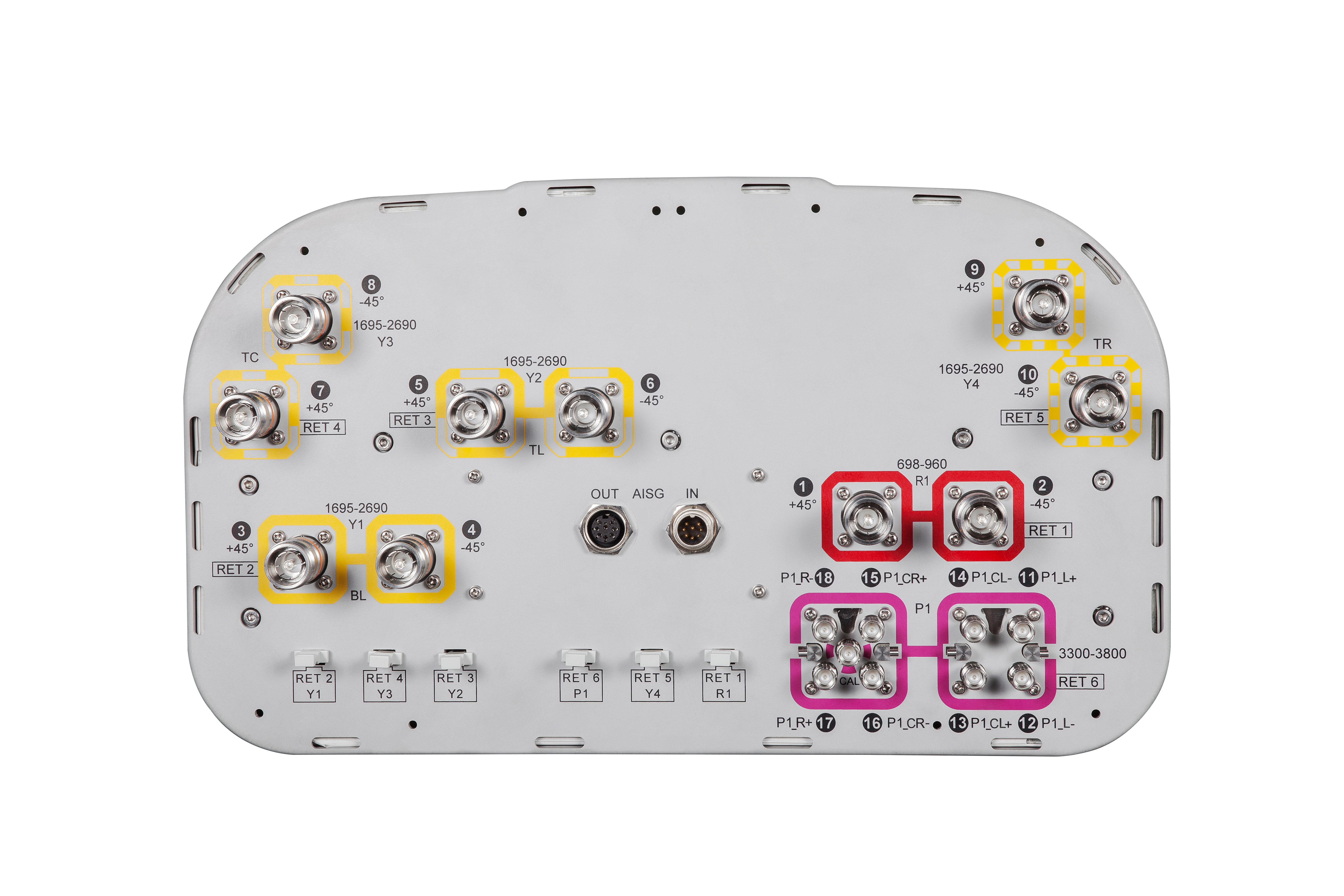

Port configuration

Click on image to enlarge.

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 698 – 960 MHz | 1695 – 2690 MHz | 3300 – 3800 MHz
Polarization ±45°
Total Input Power, maximum 900 W @ 50 °C

Electrical specifications

R1 R1 Y1-Y4 Y1-Y4 Y1-Y4 P1 P1
Frequency Band, MHz 698–890 890–960 1695–1920 1920–2200 2300–2690 3300–3600 3600–3800
Gain, dBi 14.9 14.9 15.4 16.1 16.2 15.0 15.1
Beamwidth, Horizontal, degrees 67 69 67 64 65 93 87
Beamwidth, Vertical, degrees 13.1 11.4 11.1 10.1 8.6 7.2 6.7
Beam Tilt, degrees 2–16 2–16 2–12 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 21 18 15 17 19 14 14
Front-to-Back Ratio at 180°, dB 36 32 31 31 30 33 33
Coupling level, Amp, Antenna port to Cal port, dB 26 26
Coupling level, max Amp Δ, Antenna port to Cal port, dB ±2 ±2
Coupler, max Amp Δ, Antenna port to Cal port, dB 0.9 0.9
Coupler, max Phase Δ, Antenna port to Cal port, degrees 7 7
CPR at Boresight, dB 26 20 19 22 21 15 15
Isolation, Cross Polarization, dB 25 25 25 25 25 25 25
Isolation, Inter-band, dB 28 28 25 25 25 25 25
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -140 -140
Input Power per Port at 50°C, maximum, watts 300 300 250 250 250 75 75

Electrical specifications, broadcast 65

Frequency Band, MHz 698–890 890–960 1695–1920 1920–2200 2300–2690 3300–3600 3600–3800
Gain, dBi 16.0 16.1
Beamwidth, Horizontal, degrees 60 61
Beamwidth, Horizontal Tolerance, degrees ±4.7 ±3.3

Electrical specifications, service beam

Frequency Band, MHz 698–890 890–960 1695–1920 1920–2200 2300–2690 3300–3600 3600–3800
Steered 0° Gain, dBi 19.2 19.4
Steered 0° Gain Tolerance, dBi ±0.4 ±0.5
Steered 0° Beamwidth, Horizontal, degrees 27 26
Steered 30° Gain, dBi 18.8 18.9
Steered 30° Gain Tolerance, dBi ±0.4 ±0.6
Steered 30° Beamwidth, Horizontal, degrees 28 27

Electrical specifications, soft split

Frequency Band, MHz 698–890 890–960 1695–1920 1920–2200 2300–2690 3300–3600 3600–3800
Gain, dBi 18.7 19.2
Beamwidth, Horizontal, degrees 32 28
CPR at Beampeak, dB 18 15
Horizontal Sidelobe, dB 15 15

Mechanical specifications

Effective Projective Area (EPA), frontal 0.29 m² | 3.122 ft²
Effective Projective Area (EPA), lateral 0.21 m² | 2.26 ft²
Mechanical Tilt Range 0°–18°
Wind Loading @ Velocity, frontal 312.0 N @ 150 km/h (70.1 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 226.0 N @ 150 km/h (50.8 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 533.0 N @ 150 km/h (119.8 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 319.0 N @ 150 km/h (71.7 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and weights

Width, packed 505 mm | 19.882 in
Depth, packed 386 mm | 15.197 in
Length, packed 1733 mm | 68.228 in
Weight, gross 41.8 kg | 92.153 lb

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Above maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
UK-ROHS Compliant/Exempted

General specifications

Antenna Type Sector
Band Multiband
Calibration Connector Interface M-LOC
Calibration Connector Quantity 1
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material Fiberglass, UV resistant
Radiator Material Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female | M-LOC
RF Connector Location Bottom
RF Connector Quantity, high band 16
RF Connector Quantity, mid band 0
RF Connector Quantity, low band 2
RF Connector Quantity, total 18

Remote electrical tilt (ret) information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 1 female | 1 male
Input Voltage 10–30 Vdc
Internal RET High band (5) | Low band (1)
Power Consumption, idle state, maximum 1 W
Power Consumption, normal conditions, maximum 8 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 395 mm | 15.551 in
Depth 228 mm | 8.976 in
Length 1600 mm | 62.992 in
Net Weight, without mounting kit 28.6 kg | 63.052 lb
TDD Column Spacing 42 mm | 1.654 in

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 698 – 960 MHz | 1695 – 2690 MHz | 3300 – 3800 MHz
Polarization ±45°
Total Input Power, maximum 900 W @ 50 °C

Electrical specifications

R1 R1 Y1-Y4 Y1-Y4 Y1-Y4 P1 P1
Frequency Band, MHz 698–890 890–960 1695–1920 1920–2200 2300–2690 3300–3600 3600–3800
Gain, dBi 14.9 14.9 15.4 16.1 16.2 15.0 15.1
Beamwidth, Horizontal, degrees 67 69 67 64 65 93 87
Beamwidth, Vertical, degrees 13.1 11.4 11.1 10.1 8.6 7.2 6.7
Beam Tilt, degrees 2–16 2–16 2–12 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 21 18 15 17 19 14 14
Front-to-Back Ratio at 180°, dB 36 32 31 31 30 33 33
Coupling level, Amp, Antenna port to Cal port, dB 26 26
Coupling level, max Amp Δ, Antenna port to Cal port, dB ±2 ±2
Coupler, max Amp Δ, Antenna port to Cal port, dB 0.9 0.9
Coupler, max Phase Δ, Antenna port to Cal port, degrees 7 7
CPR at Boresight, dB 26 20 19 22 21 15 15
Isolation, Cross Polarization, dB 25 25 25 25 25 25 25
Isolation, Inter-band, dB 28 28 25 25 25 25 25
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -140 -140
Input Power per Port at 50°C, maximum, watts 300 300 250 250 250 75 75

Electrical specifications, broadcast 65

Frequency Band, MHz 698–890 890–960 1695–1920 1920–2200 2300–2690 3300–3600 3600–3800
Gain, dBi 16.0 16.1
Beamwidth, Horizontal, degrees 60 61
Beamwidth, Horizontal Tolerance, degrees ±4.7 ±3.3

Electrical specifications, service beam

Frequency Band, MHz 698–890 890–960 1695–1920 1920–2200 2300–2690 3300–3600 3600–3800
Steered 0° Gain, dBi 19.2 19.4
Steered 0° Gain Tolerance, dBi ±0.4 ±0.5
Steered 0° Beamwidth, Horizontal, degrees 27 26
Steered 30° Gain, dBi 18.8 18.9
Steered 30° Gain Tolerance, dBi ±0.4 ±0.6
Steered 30° Beamwidth, Horizontal, degrees 28 27

Electrical specifications, soft split

Frequency Band, MHz 698–890 890–960 1695–1920 1920–2200 2300–2690 3300–3600 3600–3800
Gain, dBi 18.7 19.2
Beamwidth, Horizontal, degrees 32 28
CPR at Beampeak, dB 18 15
Horizontal Sidelobe, dB 15 15

Mechanical specifications

Effective Projective Area (EPA), frontal 0.29 m² | 3.122 ft²
Effective Projective Area (EPA), lateral 0.21 m² | 2.26 ft²
Mechanical Tilt Range 0°–18°
Wind Loading @ Velocity, frontal 312.0 N @ 150 km/h (70.1 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 226.0 N @ 150 km/h (50.8 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 533.0 N @ 150 km/h (119.8 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 319.0 N @ 150 km/h (71.7 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and weights

Width, packed 505 mm | 19.882 in
Depth, packed 386 mm | 15.197 in
Length, packed 1733 mm | 68.228 in
Weight, gross 41.8 kg | 92.153 lb
Click on image to enlarge.
Click on image to enlarge.

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Above maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
UK-ROHS Compliant/Exempted

Assembly drawing

Line drawing
