RV3T4-65D-R5VB-V2

16-port sector antenna, 2x 698–960, 6x 1710-2690MHz, 65° HPBW, and 8x 2300-2690MHz, 80° HPBW, 5x RET

Finish making your selections or clear them to view relevant specifications.
Find a partner
Features and benefits
  • Combination of Penta-Band antenna and 2.4/2.6 GHz 8T8R beam forming antenna
  • Beamforming array utilizes MQs cluster connectors
  • Optimized for Software Defined Split Six Sector applications on 2.4/2.6 GHz
  • Antenna with tilt scale indicators and integrated pluggable RET

General specifications

Antenna Type Sector and beamforming
Band Multiband
Calibration Connector Interface MQ5 Male
Calibration Connector Quantity 1
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material Fiberglass, UV resistant
Radiator Material Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 7-16 DIN Female | MQ4 Male | MQ5 Male
RF Connector Location Bottom
RF Connector Quantity, mid band 14
RF Connector Quantity, low band 2
RF Connector Quantity, total 16

Remote electrical tilt (ret) information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 1 female | 1 male
Input Voltage 10–30 Vdc
Internal RET Low band (1) | Mid band (4)
Power Consumption, active state, maximum 10 W
Power Consumption, idle state, maximum 2 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 397 mm | 15.630 in
Depth 197 mm | 7.756 in
Length 2647 mm | 104.213 in
Net Weight, antenna only 28.5 kg | 62.832 lb

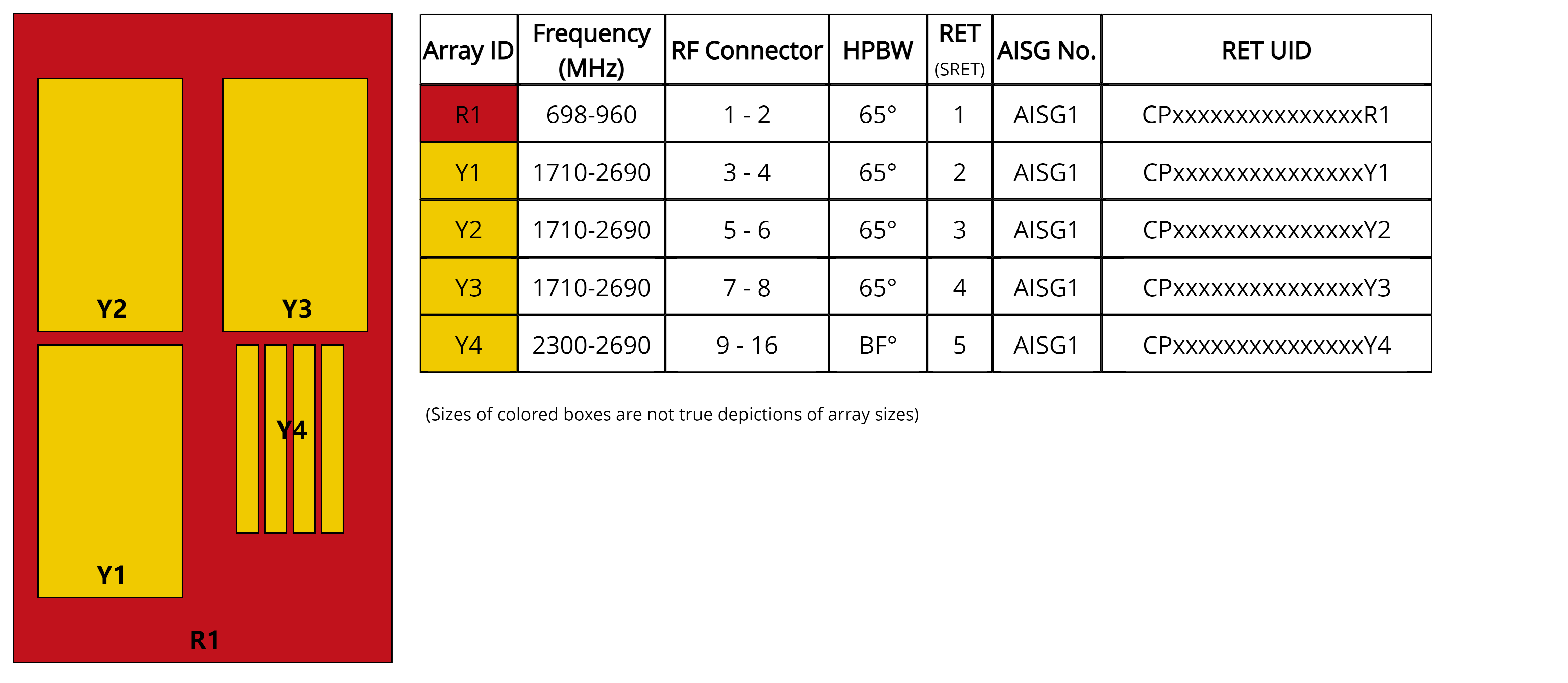

Array layout

Click on image to enlarge.

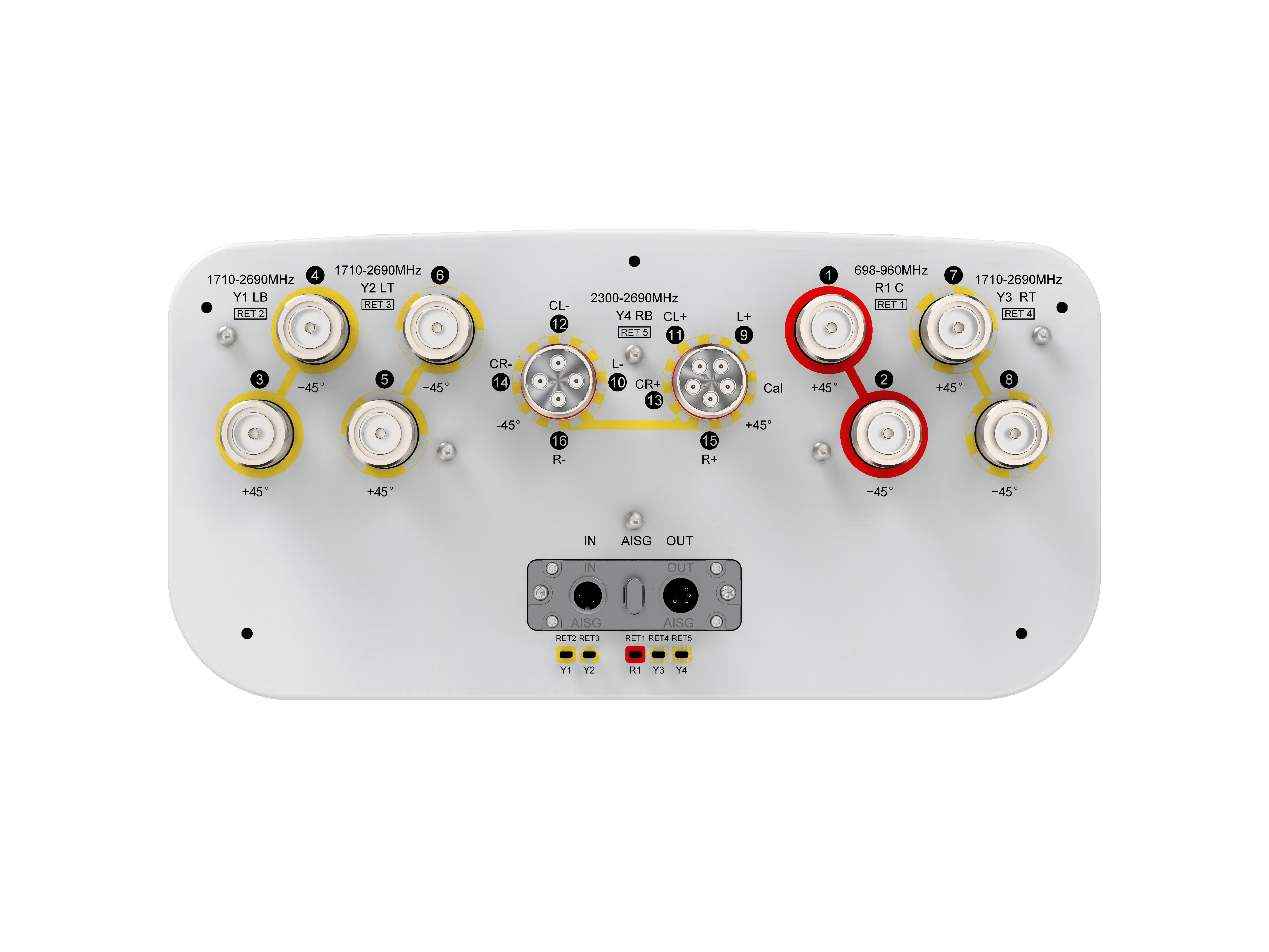

Port configuration

Click on image to enlarge.

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 698 – 960 MHz | 1710 – 2690 MHz | 2300 – 2690 MHz
Polarization ±45°
Total Input Power, maximum 900 W

Electrical specifications

R1 R1 R1 Y1-Y3 Y1-Y3 Y1-Y3 Y1-Y3 Y1-Y3 Y4 Y4
Frequency Band, MHz 698–806 790–894 880–960 1710–1880 1850–1990 1920–2170 2300–2400 2490–2690 2300–2400 2490–2690
RF Port 1,2 1,2 1,2 3-8 3-8 3-8 3-8 3-8 9-16 9-16
Gain, dBi 17.0 17.4 17.4 17.0 17.2 17.6 18.2 18.6 16.3 16.7
Beamwidth, Horizontal, degrees 62 64 68 65 66 66 62 55 83 79
Beamwidth, Vertical, degrees 8.4 7.8 7.5 7.5 7.2 6.8 6.1 5.6 5.9 5.5
Beam Tilt, degrees 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 16 17 17 15 16 15 16 17 16 17
Front-to-Back Ratio, Copolarization 180° ± 30°, dB 24 30 33 28 28 30 31 29 25 26
Coupling level, Amp, Antenna port to Cal port, dB 26 26
Coupling level, max Amp Δ, Antenna port to Cal port, dB ±2 ±2
Coupler, max Amp Δ, Antenna port to Cal port, dB 1.0 1.0
Coupler, max Phase Δ, Antenna port to Cal port, degrees 9 9
CPR at Boresight, dB 21 24 20 22 21 23 26 23 19 18
Isolation, Cross Polarization, dB 26 26 26 28 28 28 28 28 25 25
Isolation, Inter-band, dB 28 28 28 28 28 28 28 28 25 25
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -150 -150 -150
Input Power per Port, maximum, watts 250 250 250 200 200 200 200 200 50 50

Electrical specifications, broadcast 65

Frequency Band, MHz 698–806 790–894 880–960 1710–1880 1850–1990 1920–2170 2300–2400 2490–2690 2300–2400 2490–2690
Gain, dBi 17.8 18.0
Beamwidth, Horizontal at 3 dB, degrees 65 65
Beamwidth, Vertical, degrees 6.0 5.5
CPR at Boresight, dB 23 18
USLS (First Lobe), dB 22 21

Electrical specifications, service beam

Frequency Band, MHz 698–806 790–894 880–960 1710–1880 1850–1990 1920–2170 2300–2400 2490–2690 2300–2400 2490–2690
Steered 0° Gain, dBi 21.4 21.6
Steered 0° Beamwidth, Horizontal, degrees 24 22
Steered 0° Horizontal Sidelobe, dB 13 12
Steered 0° USLS (First Lobe), dB 19 21
Steered 30° Gain, dBi 19.9 20.2
Steered 30° Beamwidth, Horizontal, degrees 27 24

Electrical specifications, soft split

Frequency Band, MHz 698–806 790–894 880–960 1710–1880 1850–1990 1920–2170 2300–2400 2490–2690 2300–2400 2490–2690
Gain, dBi 20.0 20.2
Beamwidth, Horizontal, degrees 30 26
USLS (First Lobe), dB 19 20

Mechanical specifications

Wind Loading @ Velocity, frontal 864.0 N @ 150 km/h (194.2 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 398.0 N @ 150 km/h (89.5 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 373.0 N @ 150 km/h (83.9 lbf @ 150 km/h)
Wind Speed, maximum 200 km/h (124 mph)

Packaging and weights

Width, packed 492 mm | 19.370 in
Depth, packed 317 mm | 12.480 in
Length, packed 2847 mm | 112.087 in
Weight, gross 41.5 kg | 91.492 lb

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
UK-ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance

General specifications

Antenna Type Sector and beamforming
Band Multiband
Calibration Connector Interface MQ5 Male
Calibration Connector Quantity 1
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material Fiberglass, UV resistant
Radiator Material Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 7-16 DIN Female | MQ4 Male | MQ5 Male
RF Connector Location Bottom
RF Connector Quantity, mid band 14
RF Connector Quantity, low band 2
RF Connector Quantity, total 16

Remote electrical tilt (ret) information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 1 female | 1 male
Input Voltage 10–30 Vdc
Internal RET Low band (1) | Mid band (4)
Power Consumption, active state, maximum 10 W
Power Consumption, idle state, maximum 2 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 397 mm | 15.630 in
Depth 197 mm | 7.756 in
Length 2647 mm | 104.213 in
Net Weight, antenna only 28.5 kg | 62.832 lb

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 698 – 960 MHz | 1710 – 2690 MHz | 2300 – 2690 MHz
Polarization ±45°
Total Input Power, maximum 900 W

Electrical specifications

R1 R1 R1 Y1-Y3 Y1-Y3 Y1-Y3 Y1-Y3 Y1-Y3 Y4 Y4
Frequency Band, MHz 698–806 790–894 880–960 1710–1880 1850–1990 1920–2170 2300–2400 2490–2690 2300–2400 2490–2690
RF Port 1,2 1,2 1,2 3-8 3-8 3-8 3-8 3-8 9-16 9-16
Gain, dBi 17.0 17.4 17.4 17.0 17.2 17.6 18.2 18.6 16.3 16.7
Beamwidth, Horizontal, degrees 62 64 68 65 66 66 62 55 83 79
Beamwidth, Vertical, degrees 8.4 7.8 7.5 7.5 7.2 6.8 6.1 5.6 5.9 5.5
Beam Tilt, degrees 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 16 17 17 15 16 15 16 17 16 17
Front-to-Back Ratio, Copolarization 180° ± 30°, dB 24 30 33 28 28 30 31 29 25 26
Coupling level, Amp, Antenna port to Cal port, dB 26 26
Coupling level, max Amp Δ, Antenna port to Cal port, dB ±2 ±2
Coupler, max Amp Δ, Antenna port to Cal port, dB 1.0 1.0
Coupler, max Phase Δ, Antenna port to Cal port, degrees 9 9
CPR at Boresight, dB 21 24 20 22 21 23 26 23 19 18
Isolation, Cross Polarization, dB 26 26 26 28 28 28 28 28 25 25
Isolation, Inter-band, dB 28 28 28 28 28 28 28 28 25 25
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -150 -150 -150
Input Power per Port, maximum, watts 250 250 250 200 200 200 200 200 50 50

Electrical specifications, broadcast 65

Frequency Band, MHz 698–806 790–894 880–960 1710–1880 1850–1990 1920–2170 2300–2400 2490–2690 2300–2400 2490–2690
Gain, dBi 17.8 18.0
Beamwidth, Horizontal at 3 dB, degrees 65 65
Beamwidth, Vertical, degrees 6.0 5.5
CPR at Boresight, dB 23 18
USLS (First Lobe), dB 22 21

Electrical specifications, service beam

Frequency Band, MHz 698–806 790–894 880–960 1710–1880 1850–1990 1920–2170 2300–2400 2490–2690 2300–2400 2490–2690
Steered 0° Gain, dBi 21.4 21.6
Steered 0° Beamwidth, Horizontal, degrees 24 22
Steered 0° Horizontal Sidelobe, dB 13 12
Steered 0° USLS (First Lobe), dB 19 21
Steered 30° Gain, dBi 19.9 20.2
Steered 30° Beamwidth, Horizontal, degrees 27 24

Electrical specifications, soft split

Frequency Band, MHz 698–806 790–894 880–960 1710–1880 1850–1990 1920–2170 2300–2400 2490–2690 2300–2400 2490–2690
Gain, dBi 20.0 20.2
Beamwidth, Horizontal, degrees 30 26
USLS (First Lobe), dB 19 20

Mechanical specifications

Wind Loading @ Velocity, frontal 864.0 N @ 150 km/h (194.2 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 398.0 N @ 150 km/h (89.5 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 373.0 N @ 150 km/h (83.9 lbf @ 150 km/h)
Wind Speed, maximum 200 km/h (124 mph)

Packaging and weights

Width, packed 492 mm | 19.370 in
Depth, packed 317 mm | 12.480 in
Length, packed 2847 mm | 112.087 in
Weight, gross 41.5 kg | 91.492 lb
Click on image to enlarge.
Click on image to enlarge.

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
UK-ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance
