RRZZHHTT-65B-R8NV3

16-port sector antenna, 4x 694–960, 4x 1427–2690, 4x 1695-2180 and 4x 2490-2690 MHz, 65° HPBW, 8x RET

Finish making your selections or clear them to view relevant specifications.
Find a partner
Features and benefits
  • SEED® antenna providing high gain and improved efficiency (LookupValue_1605944368281793)
  • High radiation and pattern efficiency for improved coverage area, capacity or reduced power consumption for a given area
  • Reduces the amount of aluminum used to minimize CO2 release
  • Innovative aerodynamic shape optimized for reduced wind loading in every direction
  • Supports re-configurable antenna sharing capability enabling control of the internal RET system using up to two separate RET compatible OEM radios (LookupValue_1605944369041106)
  • Retractable tilt indicator rods

General specifications

Antenna Type Sector
Band Multiband
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material GFRPP
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, mid band 12
RF Connector Quantity, low band 4
RF Connector Quantity, total 16

Remote electrical tilt (ret) information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
Input Voltage 10–30 Vdc
Internal RET Low band (2) | Mid band (6)
Power Consumption, active state, maximum 8 W
Power Consumption, idle state, maximum 1 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 430 mm | 16.929 in
Depth 197 mm | 7.756 in
Length 2100 mm | 82.677 in
Net Weight, antenna only 37.3 kg | 82.232 lb

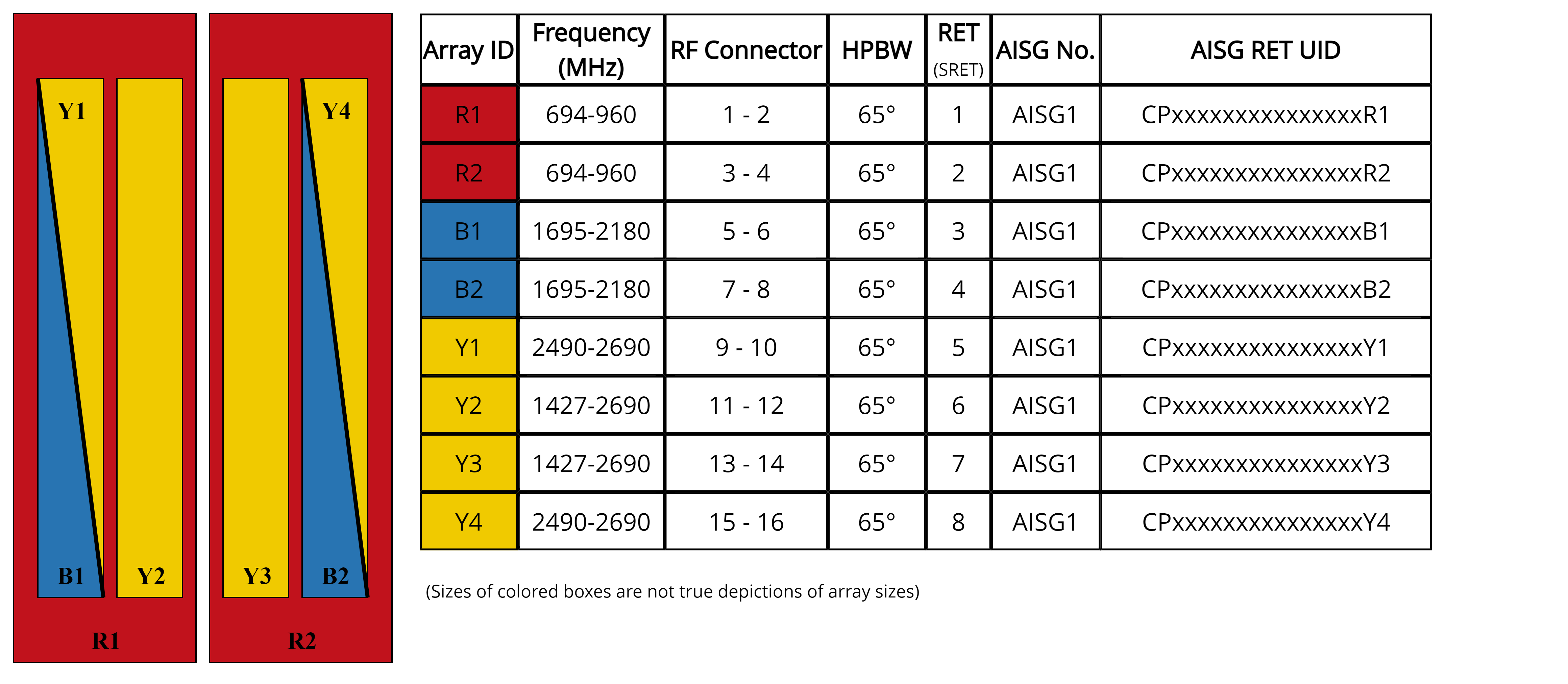

Array layout

Click on image to enlarge.

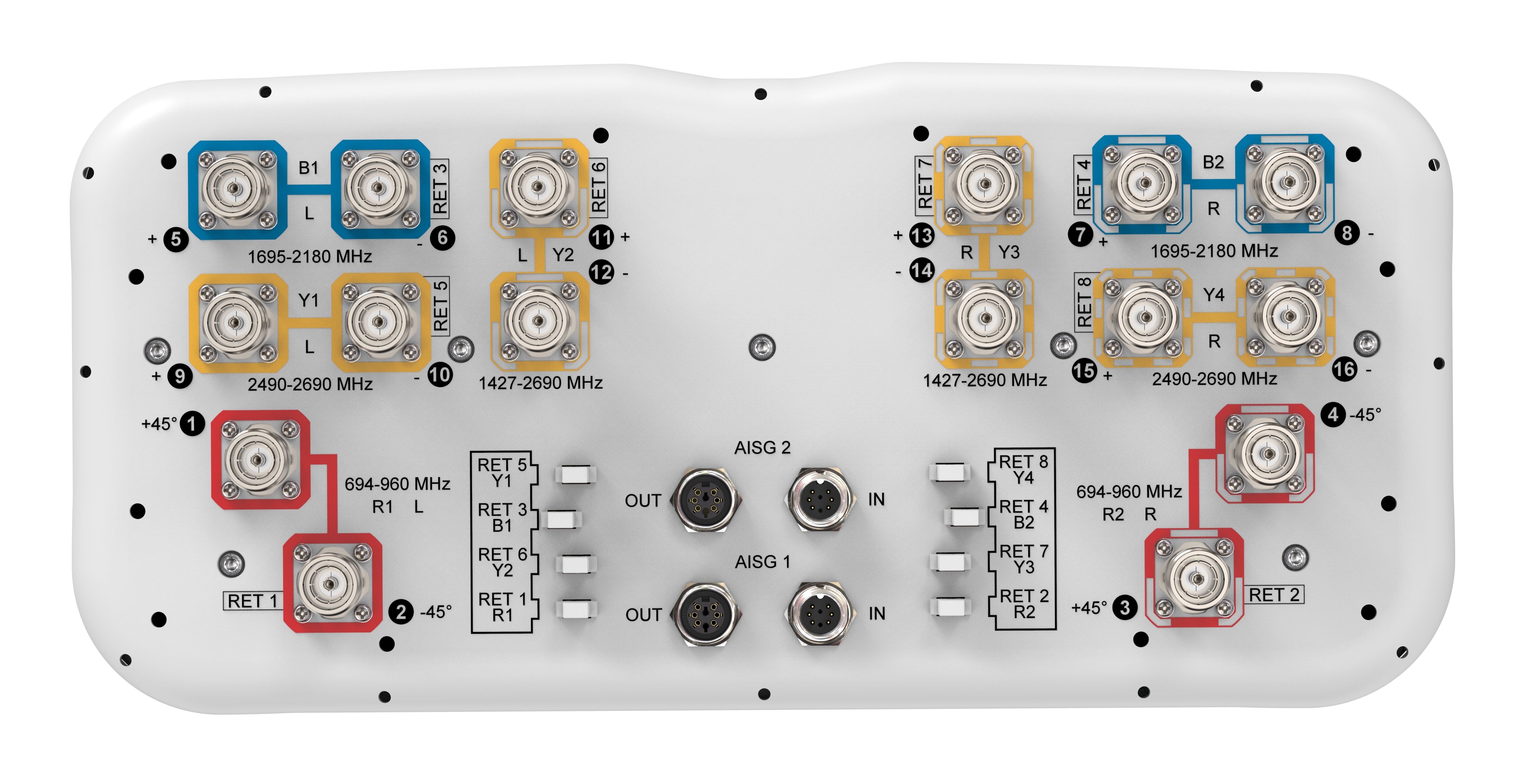

Port configuration

Click on image to enlarge.

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 694 – 960 MHz | 1427 – 2690 MHz | 1695 – 2180 MHz | 2490 – 2690 MHz
Polarization ±45°
Total Input Power, maximum 1,200 W @ 50 °C

Electrical specifications

R1,R2 R1,R2 R1,R2 B1,B2 B1,B2 Y1,Y4 Y2,Y3 Y2,Y3 Y2,Y3 Y2,Y3 Y2,Y3
Frequency Band, MHz 698–806 790–894 890–960 1695–1995 1920–2180 2490–2690 1427–1518 1695–1995 1920–2300 2300–2500 2490–2690
RF Port 1-4 1-4 1-4 5-8 5-8 9,10,15,16 11-14 11-14 11-14 11-14 11-14
Gain at Mid Tilt, dBi 14.6 15.3 15.8 17.8 18.4 19.4 15.5 17.9 18.6 19.7 20.1
Beamwidth, Horizontal, degrees 73 63 57 71 68 63 81 64 62 57 53
Beamwidth, Vertical, degrees 10.4 9.5 8.7 5.6 5 4 7.4 5.8 5.2 4.4 4
Beam Tilt, degrees 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 17 18 16 15 18 17 14 18 19 15 17
Front-to-Back Ratio at 180°, dB 27 28 30 31 30 29 32 35 33 36 37
Front-to-Back Total Power at 180° ± 30°, dB 20 21 21 25 25 25 22 25 27 27 29
Isolation, Cross Polarization, dB 25 25 25 25 25 25 25 26 26 26 26
Isolation, Inter-band, dB 25 25 25 25 25 25 25 26 26 26 26
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -153 -153 -153 -153 -153 -153 -153 -153 -153
Input Power per Port at 50°C, maximum, watts 300 300 300 250 250 200 250 250 250 200 200

Mechanical specifications

BASTA Version, mechanical BASTA v12
Wind Loading @ Velocity, frontal 494.0 N @ 150 km/h (111.1 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 266.0 N @ 150 km/h (59.8 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 780.0 N @ 150 km/h (175.4 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 319.0 N @ 150 km/h (71.7 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and weights

Width, packed 530 mm | 20.866 in
Depth, packed 349 mm | 13.740 in
Length, packed 2272 mm | 89.449 in
Weight, gross 47 kg | 103.617 lb

Regulatory compliance/certifications

Agency Classification
UK-ROHS Compliant

General specifications

Antenna Type Sector
Band Multiband
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material GFRPP
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, mid band 12
RF Connector Quantity, low band 4
RF Connector Quantity, total 16

Remote electrical tilt (ret) information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
Input Voltage 10–30 Vdc
Internal RET Low band (2) | Mid band (6)
Power Consumption, active state, maximum 8 W
Power Consumption, idle state, maximum 1 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 430 mm | 16.929 in
Depth 197 mm | 7.756 in
Length 2100 mm | 82.677 in
Net Weight, antenna only 37.3 kg | 82.232 lb

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 694 – 960 MHz | 1427 – 2690 MHz | 1695 – 2180 MHz | 2490 – 2690 MHz
Polarization ±45°
Total Input Power, maximum 1,200 W @ 50 °C

Electrical specifications

R1,R2 R1,R2 R1,R2 B1,B2 B1,B2 Y1,Y4 Y2,Y3 Y2,Y3 Y2,Y3 Y2,Y3 Y2,Y3
Frequency Band, MHz 698–806 790–894 890–960 1695–1995 1920–2180 2490–2690 1427–1518 1695–1995 1920–2300 2300–2500 2490–2690
RF Port 1-4 1-4 1-4 5-8 5-8 9,10,15,16 11-14 11-14 11-14 11-14 11-14
Gain at Mid Tilt, dBi 14.6 15.3 15.8 17.8 18.4 19.4 15.5 17.9 18.6 19.7 20.1
Beamwidth, Horizontal, degrees 73 63 57 71 68 63 81 64 62 57 53
Beamwidth, Vertical, degrees 10.4 9.5 8.7 5.6 5 4 7.4 5.8 5.2 4.4 4
Beam Tilt, degrees 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 17 18 16 15 18 17 14 18 19 15 17
Front-to-Back Ratio at 180°, dB 27 28 30 31 30 29 32 35 33 36 37
Front-to-Back Total Power at 180° ± 30°, dB 20 21 21 25 25 25 22 25 27 27 29
Isolation, Cross Polarization, dB 25 25 25 25 25 25 25 26 26 26 26
Isolation, Inter-band, dB 25 25 25 25 25 25 25 26 26 26 26
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -153 -153 -153 -153 -153 -153 -153 -153 -153
Input Power per Port at 50°C, maximum, watts 300 300 300 250 250 200 250 250 250 200 200

Mechanical specifications

BASTA Version, mechanical BASTA v12
Wind Loading @ Velocity, frontal 494.0 N @ 150 km/h (111.1 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 266.0 N @ 150 km/h (59.8 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 780.0 N @ 150 km/h (175.4 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 319.0 N @ 150 km/h (71.7 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and weights

Width, packed 530 mm | 20.866 in
Depth, packed 349 mm | 13.740 in
Length, packed 2272 mm | 89.449 in
Weight, gross 47 kg | 103.617 lb
Click on image to enlarge.
Click on image to enlarge.

Regulatory compliance/certifications

Agency Classification
UK-ROHS Compliant
