RRV4Q4-65D-R7V4

20-port sector antenna,4 x 694-960 MHz (R1-R2), and 8 x 1695-2690 MHz (Y1-Y4), 65° HPBW, 8 x 2300-3800 MHz (P1), 90° HPBW, 7 x RET

Finish making your selections or clear them to view relevant specifications.
Find a partner
Features and benefits
  • Includes 1x 4-column array for 2300-3800 MHz and callibration port. Column spacing optimized to support soft split beamforming
  • Q4 array uses MQ4/5 cluster connectors
  • Seven internal RETs control the antenna arrays
  • New aerodynamic endcaps for wind load optimization

General specifications

Antenna Type Sector and beamforming
Band Multiband
Calibration Connector Interface MQ5
Calibration Connector Quantity 1
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material Fiberglass, UV resistant
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female | MQ4 | MQ5
RF Connector Location Bottom
RF Connector Quantity, high band 8
RF Connector Quantity, mid band 8
RF Connector Quantity, low band 4
RF Connector Quantity, total 20

Remote electrical tilt (ret) information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 2 female | 2 male
Input Voltage 10–30 Vdc
Internal RET High band (1) | Low band (2) | Mid band (4)
Power Consumption, active state, maximum 8 W
Power Consumption, idle state, maximum 1 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 498 mm | 19.606 in
Depth 197 mm | 7.756 in
Length 2688 mm | 105.827 in
Net Weight, antenna only 44.5 kg | 98.106 lb
TDD Column Spacing 58 mm | 2.283 in

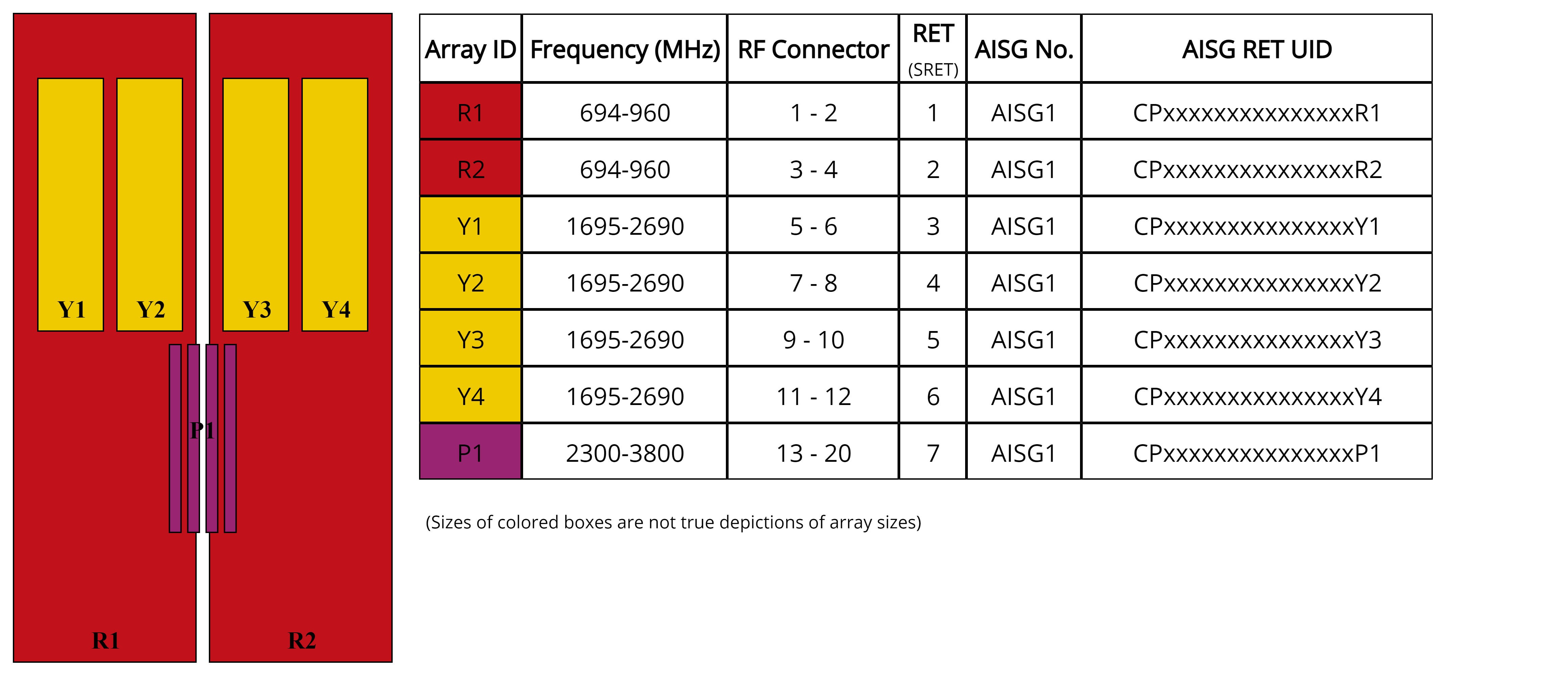

Array layout

Click on image to enlarge.

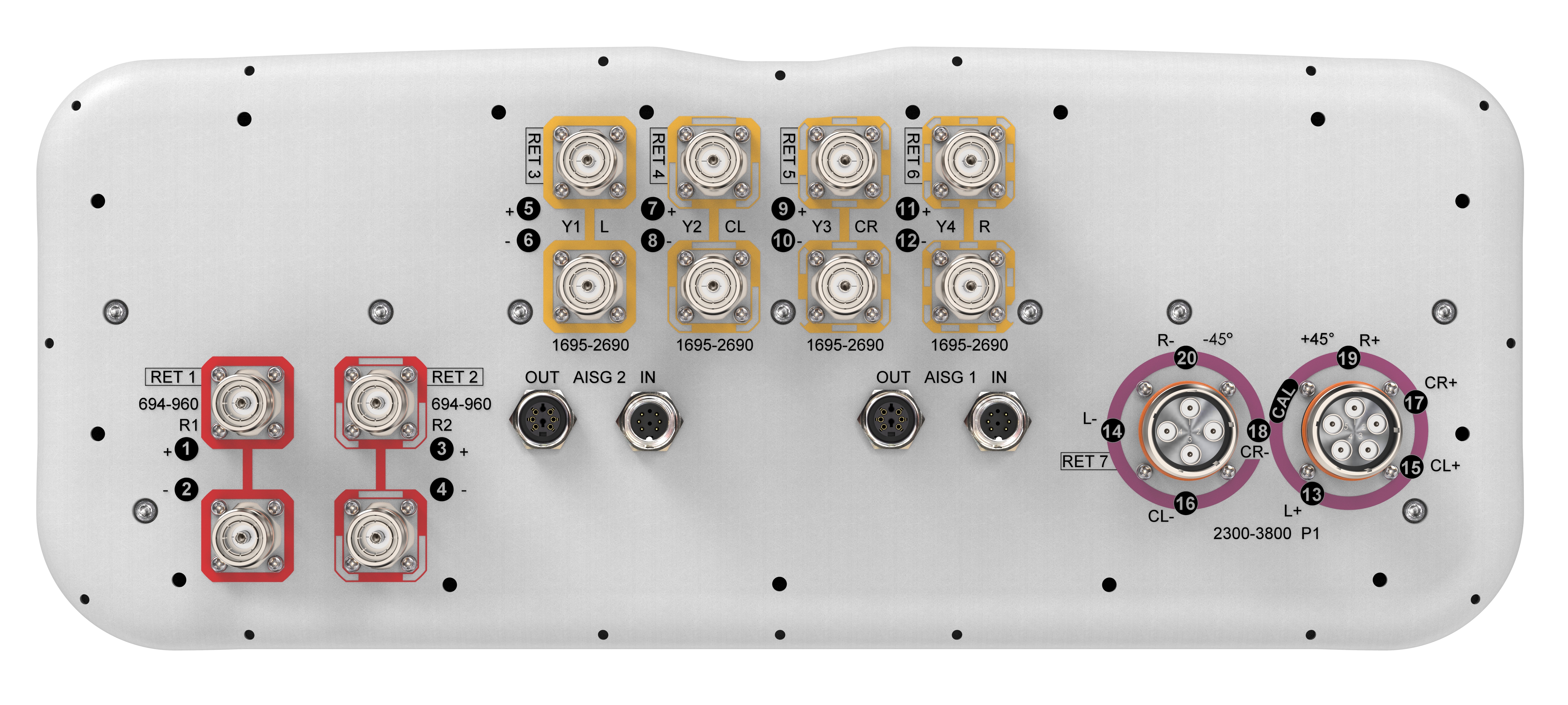

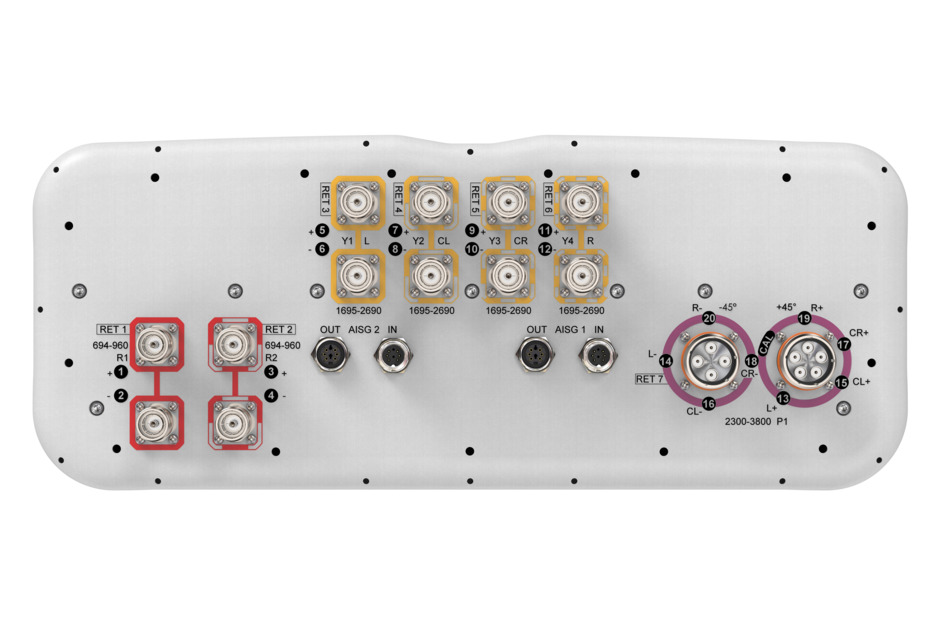

Port configuration

Click on image to enlarge.

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 694 – 960 MHz | 1695 – 2690 MHz | 2300 – 3800 MHz
Polarization ±45°
Total Input Power, maximum 900 W @ 50 °C

Electrical specifications

R1-R2 R1-R2 R1-R2 Y1-Y4 Y1-Y4 Y1-Y4 P1 P1
Frequency Band, MHz 694–790 790–890 890–960 1695–1920 1920–2200 2300–2690 2300–2690 3400–3800
RF Port 1-4 1-4 1-4 5-12 5-12 5-12 13-20 13-20
Gain, dBi 15.8 16.2 16.4 15.8 17.0 17.6 15.9 16.6
Beamwidth, Horizontal, degrees 71 64 63 70 62 59 88 64
Beamwidth, Vertical, degrees 8.9 8 7.3 7.4 6.5 5.4 6 5.1
Beam Tilt, degrees 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 16 16 16 16 16 16 14 14
Front-to-Back Ratio at 180°, dB 30 30 30 30 30 30 30 28
Coupling level, Amp, Antenna port to Cal port, dB 26 26
Coupling level, max Amp Δ, Antenna port to Cal port, dB ±2 ±2
Coupler, max Amp Δ, Antenna port to Cal port, dB 0.9 0.9
Coupler, max Phase Δ, Antenna port to Cal port, degrees 7 7
CPR at Boresight, dB 20 20 18 19 21 20 16 16
Isolation, Cross Polarization, dB 28 28 28 25 25 25 23 23
Isolation, Inter-band, dB 28 28 28 25 25 25 25 25
Isolation, Co-polarization, dB 20 20
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -150 -130 -130
Input Power per Port at 50°C, maximum, watts 300 300 300 250 250 200 75 75

Electrical specifications, broadcast 65

Frequency Band, MHz 694–790 790–890 890–960 1695–1920 1920–2200 2300–2690 2300–2690 3400–3800
Gain, dBi 17.7 17.4
Beamwidth, Horizontal, degrees 65 65
Beamwidth, Vertical, degrees 5.9 5.1
Front-to-Back Total Power at 180° ± 30°, dB 28 25
USLS (First Lobe), dB 14 15

Electrical specifications, envelope pattern

Frequency Band, MHz 694–790 790–890 890–960 1695–1920 1920–2200 2300–2690 2300–2690 3400–3800
Gain, dBi 20.4 21.8
Beamwidth, Horizontal at 10 dB, degrees 125 120
Beamwidth, Vertical at 3 dB, degrees 5.9 5.1
Front-to-Back Total Power at 180° ± 30°, dB 28 27
USLS (First Lobe), dB 15 15

Electrical specifications, service beam

Frequency Band, MHz 694–790 790–890 890–960 1695–1920 1920–2200 2300–2690 2300–2690 3400–3800
Steered 0° Gain, dBi 20.5 21.8
Steered 0° Beamwidth, Horizontal, degrees 24 18
Steered 0° Front-to-Back Total Power at 180° ± 30°, dB 30 29
Steered 0° Horizontal Sidelobe, dB 12 12
Steered 30° Gain, dBi 20.0 19.9
Steered 30° Beamwidth, Horizontal, degrees 28 22
Steered 30° Front-to-Back Total Power at 180° ± 30°, dB 30 25

Electrical specifications, soft split

Frequency Band, MHz 694–790 790–890 890–960 1695–1920 1920–2200 2300–2690 2300–2690 3400–3800
Gain, dBi 19.7
Beamwidth, Horizontal, degrees 30
Front-to-Back Total Power at 180° ± 30°, dB 30
Horizontal Sidelobe, dB 18

Mechanical specifications

Effective Projective Area (EPA), frontal 0.89 m² | 9.580 ft²
Effective Projective Area (EPA), lateral 0.27 m² | 2.906 ft²
Wind Loading @ Velocity, frontal 944.0 N @ 150 km/h (212.2 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 292.0 N @ 150 km/h (65.6 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 1,130.0 N @ 150 km/h (254.0 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 650.0 N @ 150 km/h (146.1 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and weights

Width, packed 565 mm | 22.244 in
Depth, packed 309 mm | 12.165 in
Length, packed 2935 mm | 115.551 in
Weight, gross 65 kg | 143.300 lb

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Above maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
UK-ROHS Compliant/Exempted

General specifications

Antenna Type Sector and beamforming
Band Multiband
Calibration Connector Interface MQ5
Calibration Connector Quantity 1
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material Fiberglass, UV resistant
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female | MQ4 | MQ5
RF Connector Location Bottom
RF Connector Quantity, high band 8
RF Connector Quantity, mid band 8
RF Connector Quantity, low band 4
RF Connector Quantity, total 20

Remote electrical tilt (ret) information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 2 female | 2 male
Input Voltage 10–30 Vdc
Internal RET High band (1) | Low band (2) | Mid band (4)
Power Consumption, active state, maximum 8 W
Power Consumption, idle state, maximum 1 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 498 mm | 19.606 in
Depth 197 mm | 7.756 in
Length 2688 mm | 105.827 in
Net Weight, antenna only 44.5 kg | 98.106 lb
TDD Column Spacing 58 mm | 2.283 in

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 694 – 960 MHz | 1695 – 2690 MHz | 2300 – 3800 MHz
Polarization ±45°
Total Input Power, maximum 900 W @ 50 °C

Electrical specifications

R1-R2 R1-R2 R1-R2 Y1-Y4 Y1-Y4 Y1-Y4 P1 P1
Frequency Band, MHz 694–790 790–890 890–960 1695–1920 1920–2200 2300–2690 2300–2690 3400–3800
RF Port 1-4 1-4 1-4 5-12 5-12 5-12 13-20 13-20
Gain, dBi 15.8 16.2 16.4 15.8 17.0 17.6 15.9 16.6
Beamwidth, Horizontal, degrees 71 64 63 70 62 59 88 64
Beamwidth, Vertical, degrees 8.9 8 7.3 7.4 6.5 5.4 6 5.1
Beam Tilt, degrees 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 16 16 16 16 16 16 14 14
Front-to-Back Ratio at 180°, dB 30 30 30 30 30 30 30 28
Coupling level, Amp, Antenna port to Cal port, dB 26 26
Coupling level, max Amp Δ, Antenna port to Cal port, dB ±2 ±2
Coupler, max Amp Δ, Antenna port to Cal port, dB 0.9 0.9
Coupler, max Phase Δ, Antenna port to Cal port, degrees 7 7
CPR at Boresight, dB 20 20 18 19 21 20 16 16
Isolation, Cross Polarization, dB 28 28 28 25 25 25 23 23
Isolation, Inter-band, dB 28 28 28 25 25 25 25 25
Isolation, Co-polarization, dB 20 20
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -150 -130 -130
Input Power per Port at 50°C, maximum, watts 300 300 300 250 250 200 75 75

Electrical specifications, broadcast 65

Frequency Band, MHz 694–790 790–890 890–960 1695–1920 1920–2200 2300–2690 2300–2690 3400–3800
Gain, dBi 17.7 17.4
Beamwidth, Horizontal, degrees 65 65
Beamwidth, Vertical, degrees 5.9 5.1
Front-to-Back Total Power at 180° ± 30°, dB 28 25
USLS (First Lobe), dB 14 15

Electrical specifications, envelope pattern

Frequency Band, MHz 694–790 790–890 890–960 1695–1920 1920–2200 2300–2690 2300–2690 3400–3800
Gain, dBi 20.4 21.8
Beamwidth, Horizontal at 10 dB, degrees 125 120
Beamwidth, Vertical at 3 dB, degrees 5.9 5.1
Front-to-Back Total Power at 180° ± 30°, dB 28 27
USLS (First Lobe), dB 15 15

Electrical specifications, service beam

Frequency Band, MHz 694–790 790–890 890–960 1695–1920 1920–2200 2300–2690 2300–2690 3400–3800
Steered 0° Gain, dBi 20.5 21.8
Steered 0° Beamwidth, Horizontal, degrees 24 18
Steered 0° Front-to-Back Total Power at 180° ± 30°, dB 30 29
Steered 0° Horizontal Sidelobe, dB 12 12
Steered 30° Gain, dBi 20.0 19.9
Steered 30° Beamwidth, Horizontal, degrees 28 22
Steered 30° Front-to-Back Total Power at 180° ± 30°, dB 30 25

Electrical specifications, soft split

Frequency Band, MHz 694–790 790–890 890–960 1695–1920 1920–2200 2300–2690 2300–2690 3400–3800
Gain, dBi 19.7
Beamwidth, Horizontal, degrees 30
Front-to-Back Total Power at 180° ± 30°, dB 30
Horizontal Sidelobe, dB 18

Mechanical specifications

Effective Projective Area (EPA), frontal 0.89 m² | 9.580 ft²
Effective Projective Area (EPA), lateral 0.27 m² | 2.906 ft²
Wind Loading @ Velocity, frontal 944.0 N @ 150 km/h (212.2 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 292.0 N @ 150 km/h (65.6 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 1,130.0 N @ 150 km/h (254.0 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 650.0 N @ 150 km/h (146.1 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and weights

Width, packed 565 mm | 22.244 in
Depth, packed 309 mm | 12.165 in
Length, packed 2935 mm | 115.551 in
Weight, gross 65 kg | 143.300 lb
Click on image to enlarge.
Click on image to enlarge.

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Above maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
UK-ROHS Compliant/Exempted
