NHH-65B-HG-R3BD
6-port Next Generation PerforMax™ sector antenna, 2x 698-894 and 4x 1695–2360 MHz, 65° HPBW, 3x RETs and 2x SBTs
Features and benefits
- Powered by Andrew's SEED® technology (Sustainable Energy Efficient Design)
- Antenna optimized for higher gain with superior radiation efficiency
- Designed to reduce SUB 1 alarm triggers with pattern consistency between low band and mid band
- Superior patterns for enhanced interference mitigation resulting in improved SINR, higher throughput, and more capacity
- Interleaved dipole technology results into an attractive, low wind load mechanical package
- Internal SBTs allow remote RET control from the radio over the RF jumper cable
- The low band array is internally diplexed for an independent tilt at 700 MHz and 850 MHz
- Best in class PIM immunity
Specifications
General specifications
| Antenna Type | Sector with internal RET and bias tee |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, mid band | 4 |
| RF Connector Quantity, low band | 2 |
| RF Connector Quantity, total | 6 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 2 female | 2 male |
| Input Voltage | 10–30 Vdc |
| Internal Bias Tee | Port 1 | Port 3 |
| Internal RET | Low band (2) | Mid band (1) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 |
Dimensions
| Width | 350 mm | 13.780 in |
| Depth | 208 mm | 8.189 in |
| Length | 1828 mm | 71.969 in |
| Net Weight, without mounting kit | 28.7 kg | 63.273 lb |

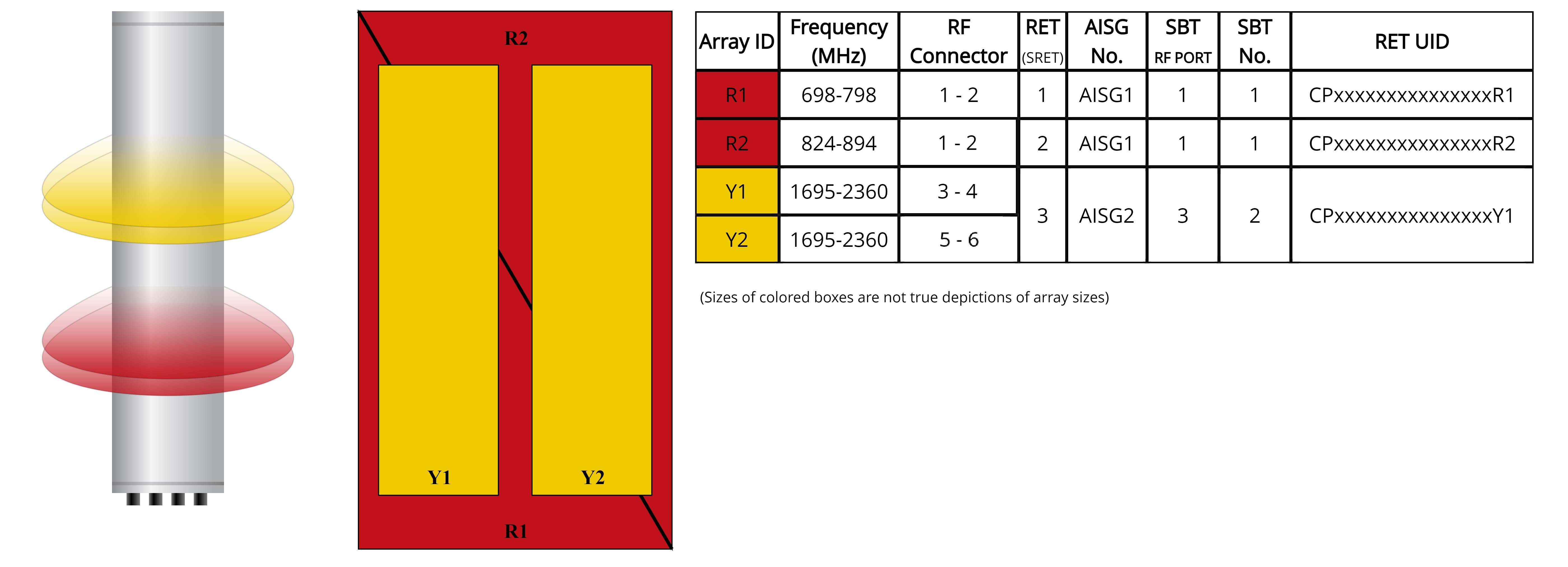

Array layout
| Click on image to enlarge. |

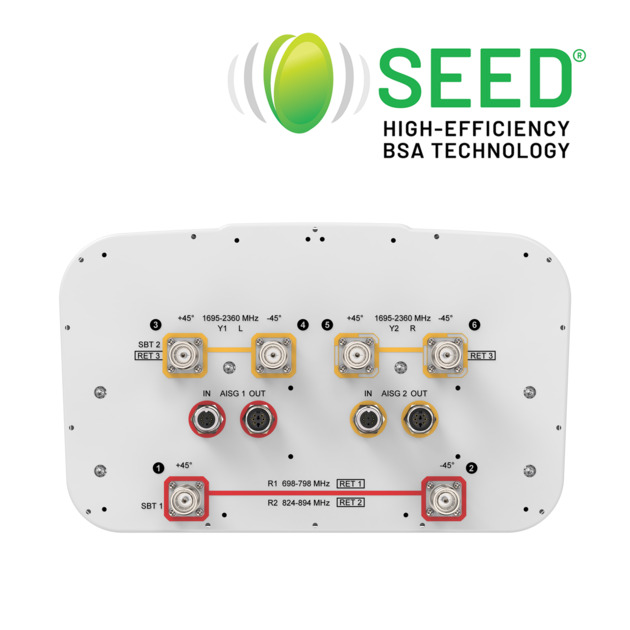

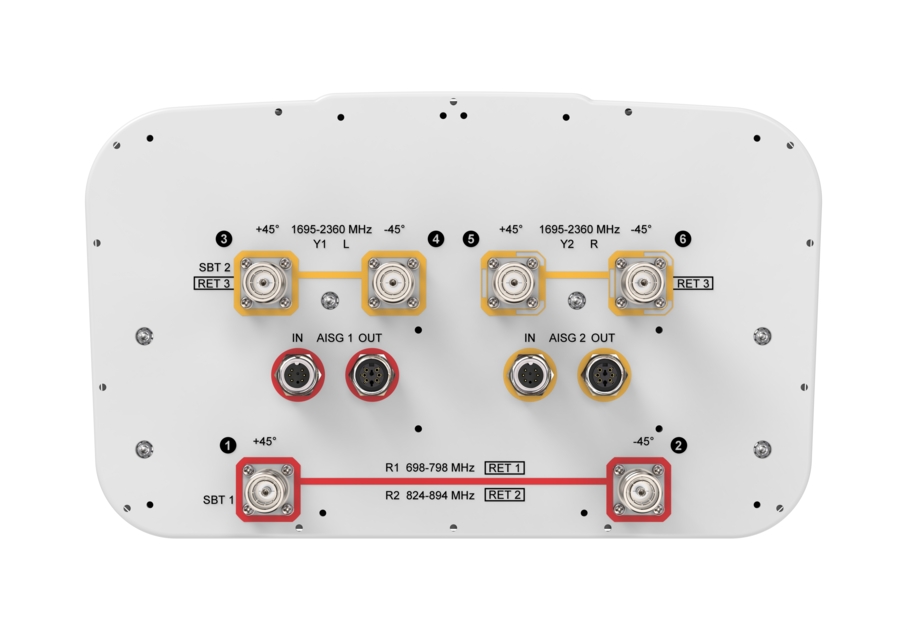

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 798 MHz | 824 – 894 MHz | 1695 – 2360 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 800 W @ 50 °C |
Electrical specifications
| R1 | R2 | Y1,Y2 | Y1,Y2 | Y1,Y2 | Y1,Y2 | |
| Frequency Band, MHz | 698–798 | 824–894 | 1695–1880 | 1850–1990 | 1920–2200 | 2200–2360 |
| RF Port | 1,2 | 1,2 | 3,4,5,6 | 3,4,5,6 | 3,4,5,6 | 3,4,5,6 |
| Gain, Maximum, dBi | 15.200 | 15.000 | 19.000 | 19.600 | 19.600 | 19.600 |
| Gain, dBi | 14.9 | 14.8 | 18.8 | 19.3 | 19.4 | 19.3 |
| Beamwidth, Horizontal, degrees | 64 | 61 | 61 | 59 | 60 | 65 |
| Beamwidth, Vertical, degrees | 12 | 10.6 | 5.5 | 5.1 | 4.9 | 4.5 |
| Beam Tilt, degrees | 2–13 | 2–13 | 0–7 | 0–7 | 0–7 | 0–7 |
| USLS (First Lobe), dB | 15 | 17 | 15 | 17 | 17 | 19 |
| Front-to-Back Ratio at 180°, dB | 30 | 31 | 34 | 37 | 33 | 36 |
| CPR at Boresight, dB | 21 | 16 | 21 | 25 | 26 | 25 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 | -153 |
| Input Power per Port at 50°C, maximum, watts | 150 | 150 | 250 | 250 | 250 | 200 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 301.0 N @ 150 km/h (67.7 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 254.0 N @ 150 km/h (57.1 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 638.0 N @ 150 km/h (143.4 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 319.0 N @ 150 km/h (71.7 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 456 mm | 17.953 in |
| Depth, packed | 357 mm | 14.055 in |
| Length, packed | 1975 mm | 77.756 in |
| Weight, gross | 41.4 kg | 91.271 lb |
Regulatory compliance/certifications
| Agency | Classification |
| UK-ROHS | Compliant |
General specifications
| Antenna Type | Sector with internal RET and bias tee |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, mid band | 4 |
| RF Connector Quantity, low band | 2 |
| RF Connector Quantity, total | 6 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 2 female | 2 male |
| Input Voltage | 10–30 Vdc |
| Internal Bias Tee | Port 1 | Port 3 |
| Internal RET | Low band (2) | Mid band (1) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 |
Dimensions
| Width | 350 mm | 13.780 in |
| Depth | 208 mm | 8.189 in |
| Length | 1828 mm | 71.969 in |
| Net Weight, without mounting kit | 28.7 kg | 63.273 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 798 MHz | 824 – 894 MHz | 1695 – 2360 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 800 W @ 50 °C |
Electrical specifications
| R1 | R2 | Y1,Y2 | Y1,Y2 | Y1,Y2 | Y1,Y2 | |
| Frequency Band, MHz | 698–798 | 824–894 | 1695–1880 | 1850–1990 | 1920–2200 | 2200–2360 |
| RF Port | 1,2 | 1,2 | 3,4,5,6 | 3,4,5,6 | 3,4,5,6 | 3,4,5,6 |
| Gain, Maximum, dBi | 15.200 | 15.000 | 19.000 | 19.600 | 19.600 | 19.600 |
| Gain, dBi | 14.9 | 14.8 | 18.8 | 19.3 | 19.4 | 19.3 |
| Beamwidth, Horizontal, degrees | 64 | 61 | 61 | 59 | 60 | 65 |
| Beamwidth, Vertical, degrees | 12 | 10.6 | 5.5 | 5.1 | 4.9 | 4.5 |
| Beam Tilt, degrees | 2–13 | 2–13 | 0–7 | 0–7 | 0–7 | 0–7 |
| USLS (First Lobe), dB | 15 | 17 | 15 | 17 | 17 | 19 |
| Front-to-Back Ratio at 180°, dB | 30 | 31 | 34 | 37 | 33 | 36 |
| CPR at Boresight, dB | 21 | 16 | 21 | 25 | 26 | 25 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 | -153 |
| Input Power per Port at 50°C, maximum, watts | 150 | 150 | 250 | 250 | 250 | 200 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 301.0 N @ 150 km/h (67.7 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 254.0 N @ 150 km/h (57.1 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 638.0 N @ 150 km/h (143.4 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 319.0 N @ 150 km/h (71.7 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 456 mm | 17.953 in |
| Depth, packed | 357 mm | 14.055 in |
| Length, packed | 1975 mm | 77.756 in |
| Weight, gross | 41.4 kg | 91.271 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| UK-ROHS | Compliant |
Documentation & downloads
Assembly drawing
Product information
Product specification
Assembly drawing
Product compliance documentation
Product information
Product specification
