JAHHSS-65C-R3BT4
12-port sector antenna, 2x 698-803, 2x 824-894, 4x 1695–2200 and 4x 3550-3700 MHz, 65° HPBW, 3x RETs and 2x SBTs.
Features and benefits
- Perfect antenna to add 3.5GHz CBRS to macro sites
- 18dBi max CBRS gain to align with FCC max EIRP limitations
- Low band and mid band performance mirrors the performance of existing JAHH octo port antennas
- Internal SBT on low and high band allow remote RET control from the radio over the RF jumper cable
- Separate RS-485 RET input/output for low and high band
- Interleaved dipole technology providing for attractive, low wind load mechanical package
- Two LB RET and one HB RET. Both high bands are controlled by one RET to ensure same tilt level for 4x MIMO
Specifications
General specifications
| Antenna Type | Sector with internal RET and bias tee |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 4 |
| RF Connector Quantity, mid band | 4 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 12 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 2 female | 2 male |
| Input Voltage | 10–30 Vdc |
| Internal Bias Tee | Port 1 | Port 5 |
| Internal RET | Low band (2) | Mid band (1) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 |
Dimensions
| Width | 350 mm | 13.780 in |
| Depth | 208 mm | 8.189 in |
| Length | 2438 mm | 95.984 in |
| Net Weight, without mounting kit | 40.3 kg | 88.846 lb |

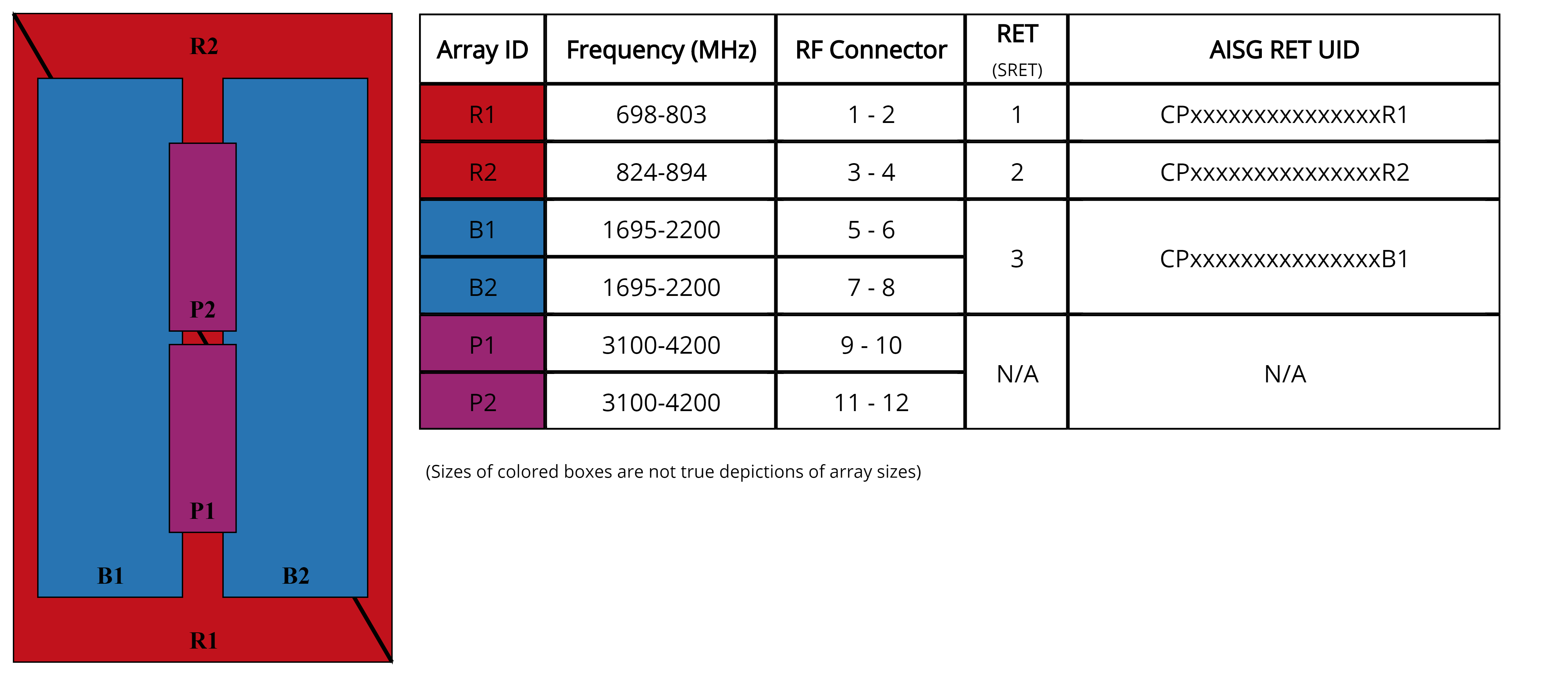

Array layout
| Click on image to enlarge. |

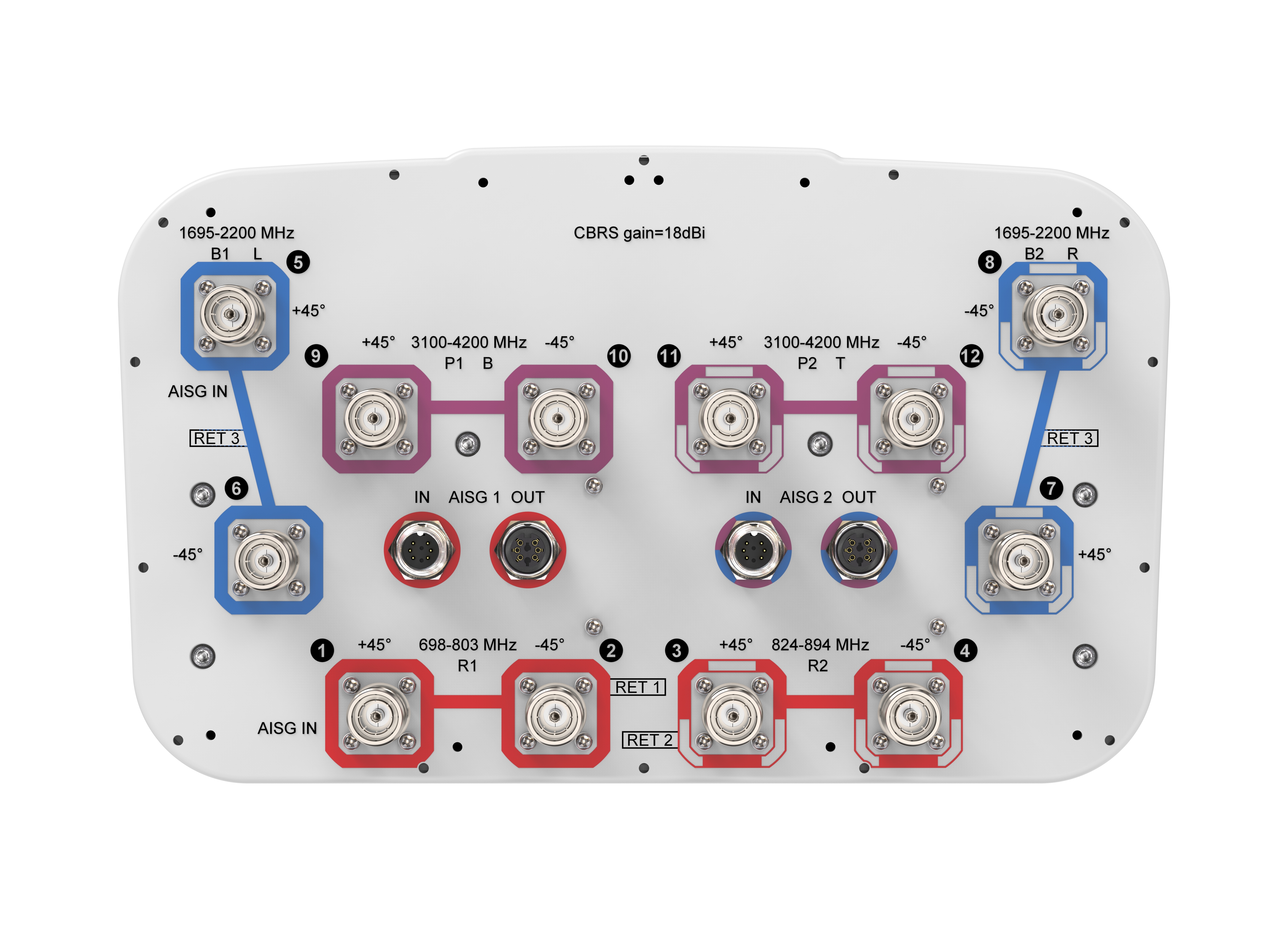

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 803 MHz | 824 – 894 MHz | 1695 – 2200 MHz | 3100 – 4200 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 1,100 W @ 50 °C |
Electrical specifications
| R1 | R2 | B1,B2 | B1,B2 | B1,B2 | P1,P2 | P1,P2 | P1,P2 | |
| Frequency Band, MHz | 698–803 | 824–894 | 1695–1880 | 1850–1990 | 1920–2200 | 3100–3550 | 3550–3700 | 3700–4200 |
| RF Port | 1,2 | 3,4 | 5,6,7,8 | 5,6,7,8 | 5,6,7,8 | 9,10,11,12 | 9,10,11,12 | 9,10,11,12 |
| Gain, dBi | 16.2 | 16.6 | 18.1 | 18.5 | 18.8 | 17.7 | 17.9 | 17.2 |
| Beamwidth, Horizontal, degrees | 63 | 61 | 61 | 57 | 59 | 58 | 53 | 67 |
| Beamwidth, Vertical, degrees | 8.8 | 7.9 | 5.4 | 5.1 | 4.8 | 5.6 | 5.3 | 5 |
| Beam Tilt, degrees | 0–11 | 0–11 | 0–10 | 0–10 | 0–10 | 4 | 4 | 4 |
| USLS (First Lobe), dB | 19 | 19 | 18 | 19 | 21 | 15 | 16 | 18 |
| Front-to-Back Ratio at 180°, dB | 31 | 35 | 34 | 36 | 36 | 32 | 32 | 28 |
| CPR at Boresight, dB | 25 | 26 | 15 | 20 | 21 | 17 | 15 | 17 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 30 | 30 | 25 | 25 | 25 | 28 | 28 | 28 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 | -145 | -145 | -145 |
| Input Power per Port at 50°C, maximum, watts | 200 | 200 | 250 | 250 | 250 | 100 | 100 | 100 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 425.0 N @ 150 km/h (95.5 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 361.0 N @ 150 km/h (81.2 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 900.0 N @ 150 km/h (202.3 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 451.0 N @ 150 km/h (101.4 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 456 mm | 17.953 in |
| Depth, packed | 357 mm | 14.055 in |
| Length, packed | 2585 mm | 101.772 in |
| Weight, gross | 55.3 kg | 121.915 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant, Compliant/Exempted |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
General specifications
| Antenna Type | Sector with internal RET and bias tee |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 4 |
| RF Connector Quantity, mid band | 4 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 12 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 2 female | 2 male |
| Input Voltage | 10–30 Vdc |
| Internal Bias Tee | Port 1 | Port 5 |
| Internal RET | Low band (2) | Mid band (1) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 |
Dimensions
| Width | 350 mm | 13.780 in |
| Depth | 208 mm | 8.189 in |
| Length | 2438 mm | 95.984 in |
| Net Weight, without mounting kit | 40.3 kg | 88.846 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 803 MHz | 824 – 894 MHz | 1695 – 2200 MHz | 3100 – 4200 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 1,100 W @ 50 °C |
Electrical specifications
| R1 | R2 | B1,B2 | B1,B2 | B1,B2 | P1,P2 | P1,P2 | P1,P2 | |
| Frequency Band, MHz | 698–803 | 824–894 | 1695–1880 | 1850–1990 | 1920–2200 | 3100–3550 | 3550–3700 | 3700–4200 |
| RF Port | 1,2 | 3,4 | 5,6,7,8 | 5,6,7,8 | 5,6,7,8 | 9,10,11,12 | 9,10,11,12 | 9,10,11,12 |
| Gain, dBi | 16.2 | 16.6 | 18.1 | 18.5 | 18.8 | 17.7 | 17.9 | 17.2 |
| Beamwidth, Horizontal, degrees | 63 | 61 | 61 | 57 | 59 | 58 | 53 | 67 |
| Beamwidth, Vertical, degrees | 8.8 | 7.9 | 5.4 | 5.1 | 4.8 | 5.6 | 5.3 | 5 |
| Beam Tilt, degrees | 0–11 | 0–11 | 0–10 | 0–10 | 0–10 | 4 | 4 | 4 |
| USLS (First Lobe), dB | 19 | 19 | 18 | 19 | 21 | 15 | 16 | 18 |
| Front-to-Back Ratio at 180°, dB | 31 | 35 | 34 | 36 | 36 | 32 | 32 | 28 |
| CPR at Boresight, dB | 25 | 26 | 15 | 20 | 21 | 17 | 15 | 17 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 30 | 30 | 25 | 25 | 25 | 28 | 28 | 28 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 | -145 | -145 | -145 |
| Input Power per Port at 50°C, maximum, watts | 200 | 200 | 250 | 250 | 250 | 100 | 100 | 100 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 425.0 N @ 150 km/h (95.5 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 361.0 N @ 150 km/h (81.2 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 900.0 N @ 150 km/h (202.3 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 451.0 N @ 150 km/h (101.4 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 456 mm | 17.953 in |
| Depth, packed | 357 mm | 14.055 in |
| Length, packed | 2585 mm | 101.772 in |
| Weight, gross | 55.3 kg | 121.915 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant, Compliant/Exempted |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
