JAHH-45C-R3B

8-port sector antenna, 2x 698–798, 2x 824-894 and 4x 1695–2360 MHz, 45° HPBW, low bands each have a RET and the high bands share a RET. Two internal SBTs.

Finish making your selections or clear them to view relevant specifications.

Find a partner

Features and benefits

Internal SBT on low and high band allow remote RET control from the radio over the RF jumper cable
One RET for 700MHz, one RET for 850MHz, and one RET for both high bands to ensure same tilt level for 4x Rx or 4x MIMO
Internal filter on low band and interleaved dipole technology providing for attractive, low wind load mechanical package
Separate RS-485 RET input/output for low and high band
Narrow beamwidth capacity antenna for higher level of densification and enhanced data throughput

Specifications

General specifications

Antenna Type	Sector
Band	Multiband
Color	Light Gray (RAL 7035)
Grounding Type	RF connector body grounded to reflector and mounting bracket
Performance Note	Outdoor usage
Radome Material	Fiberglass, UV resistant
Radiator Material	Aluminum \| Low loss circuit board
Reflector Material	Aluminum
RF Connector Interface	4.3-10 Female
RF Connector Location	Bottom
RF Connector Quantity, high band	4
RF Connector Quantity, low band	4
RF Connector Quantity, total	8

Remote electrical tilt (ret) information

RET Interface	8-pin DIN Female \| 8-pin DIN Male
RET Interface, quantity	2 female \| 2 male
Input Voltage	10–30 Vdc
Internal Bias Tee	Port 1 \| Port 5
Internal RET	High band (1) \| Low band (2)
Power Consumption, active state, maximum	8 W
Power Consumption, idle state, maximum	1 W
Protocol	3GPP/AISG 2.0

Dimensions

Width	457 mm \| 17.992 in
Depth	178 mm \| 7.008 in
Length	2437 mm \| 95.945 in
Net Weight, antenna only	48.2 kg \| 106.263 lb

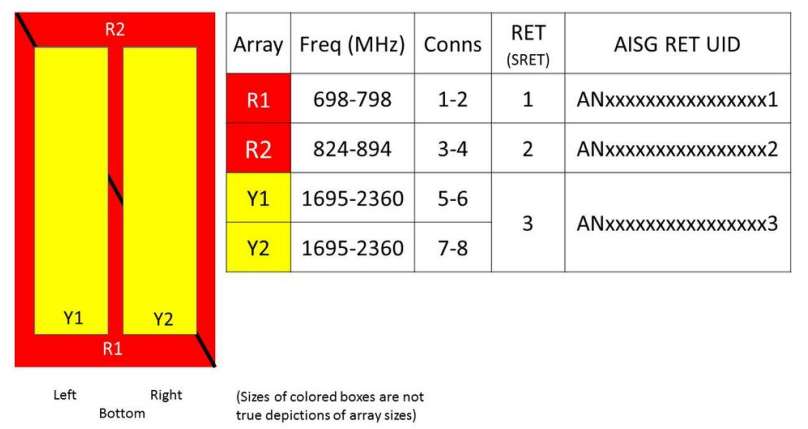

Array layout

Click on image to enlarge.

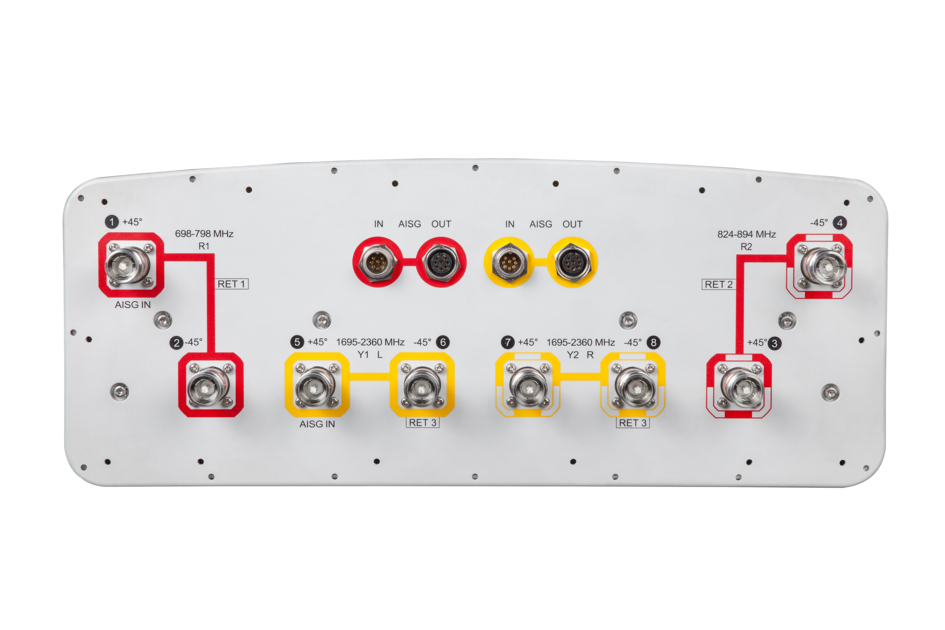

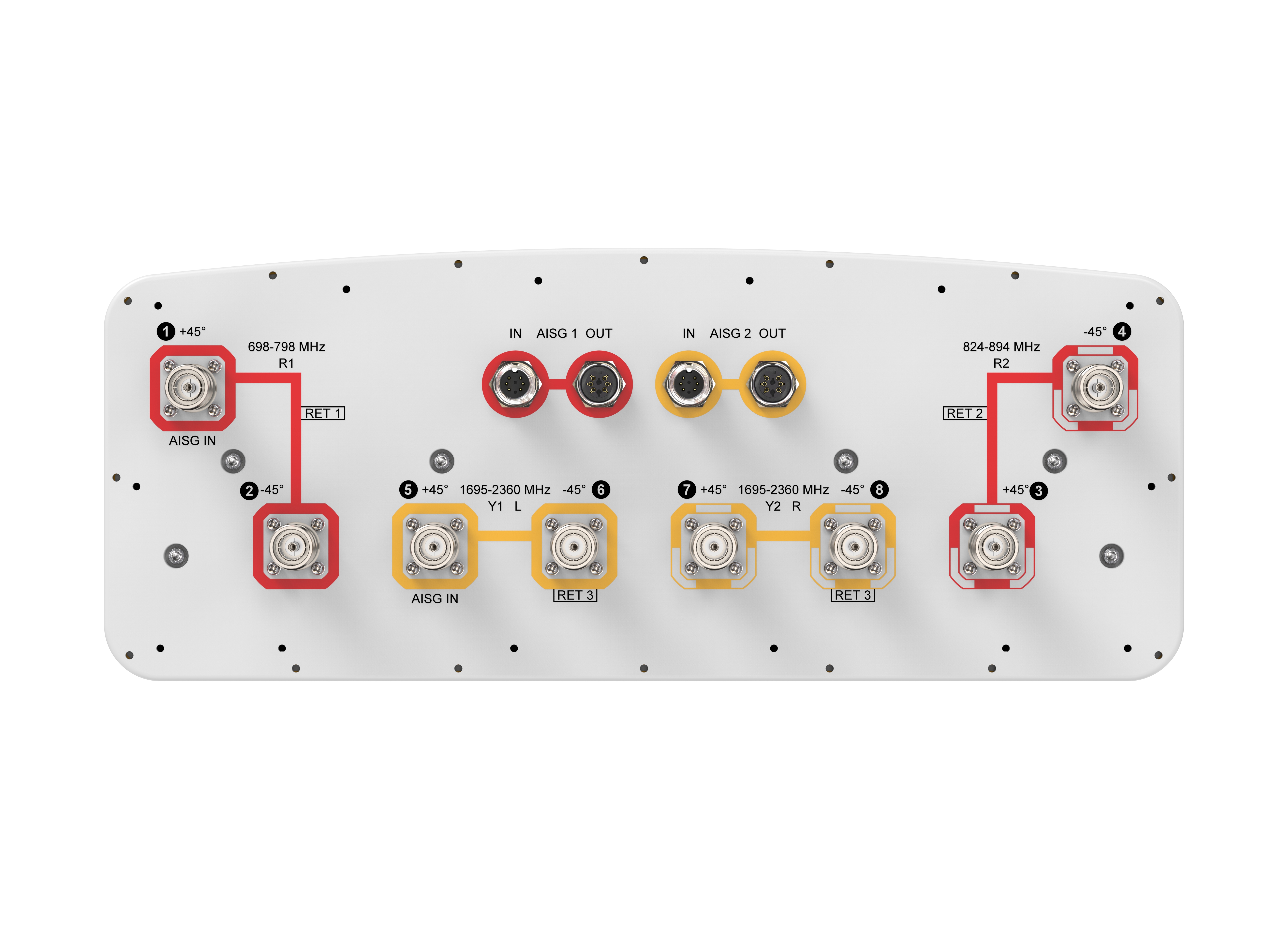

Port configuration

Click on image to enlarge.

Electrical specifications

Impedance	50 ohm
Operating Frequency Band	698 – 798 MHz \| 824 – 894 MHz \| 1695 – 2360 MHz
Polarization	±45°
Total Input Power, maximum	800 W @ 50 °C

Electrical specifications

	R1	R2	Y1,Y2	Y1,Y2	Y1,Y2	Y1,Y2
Frequency Band, MHz	698–798	824–894	1695–1880	1850–1990	1920–2200	2300–2360
RF Port	1-2	3-4	5-8	5-8	5-8	5-8
Gain, dBi	17.7	18.2	19.5	20.0	20.5	20.8
Beamwidth, Horizontal, degrees	48	43	44	43	42	38
Beamwidth, Vertical, degrees	9.1	8.2	5.8	5.4	5	4.5
Beam Tilt, degrees	0–10	0–10	0–8	0–8	0–8	0–8
USLS (First Lobe), dB	17	20	17	18	18	18
Front-to-Back Ratio at 180°, dB	35	35	36	37	39	40
Isolation, Cross Polarization, dB	25	25	25	25	25	25
Isolation, Inter-band, dB	30	30	28	28	28	28
VSWR \| Return loss, dB	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0
PIM, 3rd Order, 2 x 20 W, dBc	-153	-153	-153	-153	-153	-153
Input Power per Port, maximum, watts	200	200	300	300	300	250

Mechanical specifications

Effective Projective Area (EPA), frontal	1.4 m² \| 15.069 ft²
Effective Projective Area (EPA), lateral	0.3 m² \| 3.229 ft²
Wind Loading @ Velocity, frontal	1,485.0 N @ 150 km/h (333.8 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral	315.0 N @ 150 km/h (70.8 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum	1,485.0 N @ 150 km/h (333.8 lbf @ 150 km/h)
Wind Loading @ Velocity, rear	1,304.0 N @ 150 km/h (293.2 lbf @ 150 km/h)
Wind Speed, maximum	241 km/h (150 mph)

Packaging and weights

Width, packed	526 mm \| 20.709 in
Depth, packed	283 mm \| 11.142 in
Length, packed	2604 mm \| 102.520 in
Weight, gross	67.2 kg \| 148.150 lb

Regulatory compliance/certifications

Agency	Classification
CHINA-ROHS	Above maximum concentration value
ROHS	Compliant/Exempted
UK-ROHS	Compliant, Compliant/Exempted
