EEGGHHTTV4Q465DR10

32-port sector antenna, 4 x 694-862 MHz, 4 x 880-960 MHz, 4 x 1695-2180 MHz, 4 x 2490-2690 MHz, and 8 x 1695-2690 MHz, 65° HPBW, 8 x 2300-3800 MHz, 90° HPBW, 10 x RET.

Finish making your selections or clear them to view relevant specifications.
Find a partner
Features and benefits
  • Includes 1x 4-column array for 2300-3800 MHz and callibration port. Column spacing optimized to support soft split beamforming
  • Design for site sharing for both FDD and TDD applications
  • New aerodynamic endcaps for wind load optimization
  • RET configuration is factory pre-set for antenna sharing

General specifications

Antenna Type Sector and beamforming
Band Multiband
Calibration Connector Interface MQ5
Calibration Connector Quantity 1
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
RF Connector Interface 4.3-10 Female | MQ4 | MQ5
RF Connector Location Bottom
RF Connector Quantity, high band 8
RF Connector Quantity, mid band 16
RF Connector Quantity, low band 8
RF Connector Quantity, total 32

Remote electrical tilt (ret) information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 2 female | 2 male
Input Voltage 10–30 Vdc
Internal RET High band (1) | Low band (3) | Mid band (6)
Power Consumption, active state, maximum 8 W
Power Consumption, idle state, maximum 1 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 498 mm | 19.606 in
Depth 197 mm | 7.756 in
Length 2688 mm | 105.827 in
Net Weight, antenna only 71.4 kg | 157.410 lb

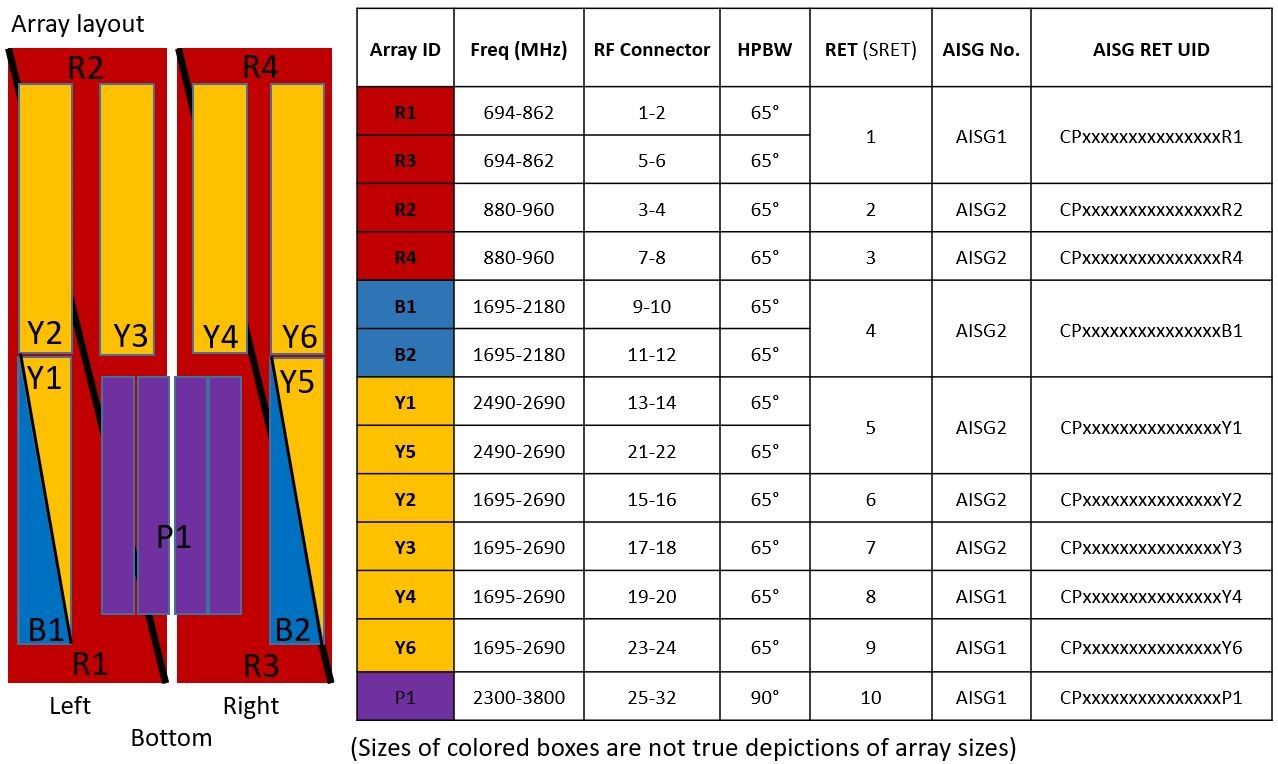

Array layout

Click on image to enlarge.

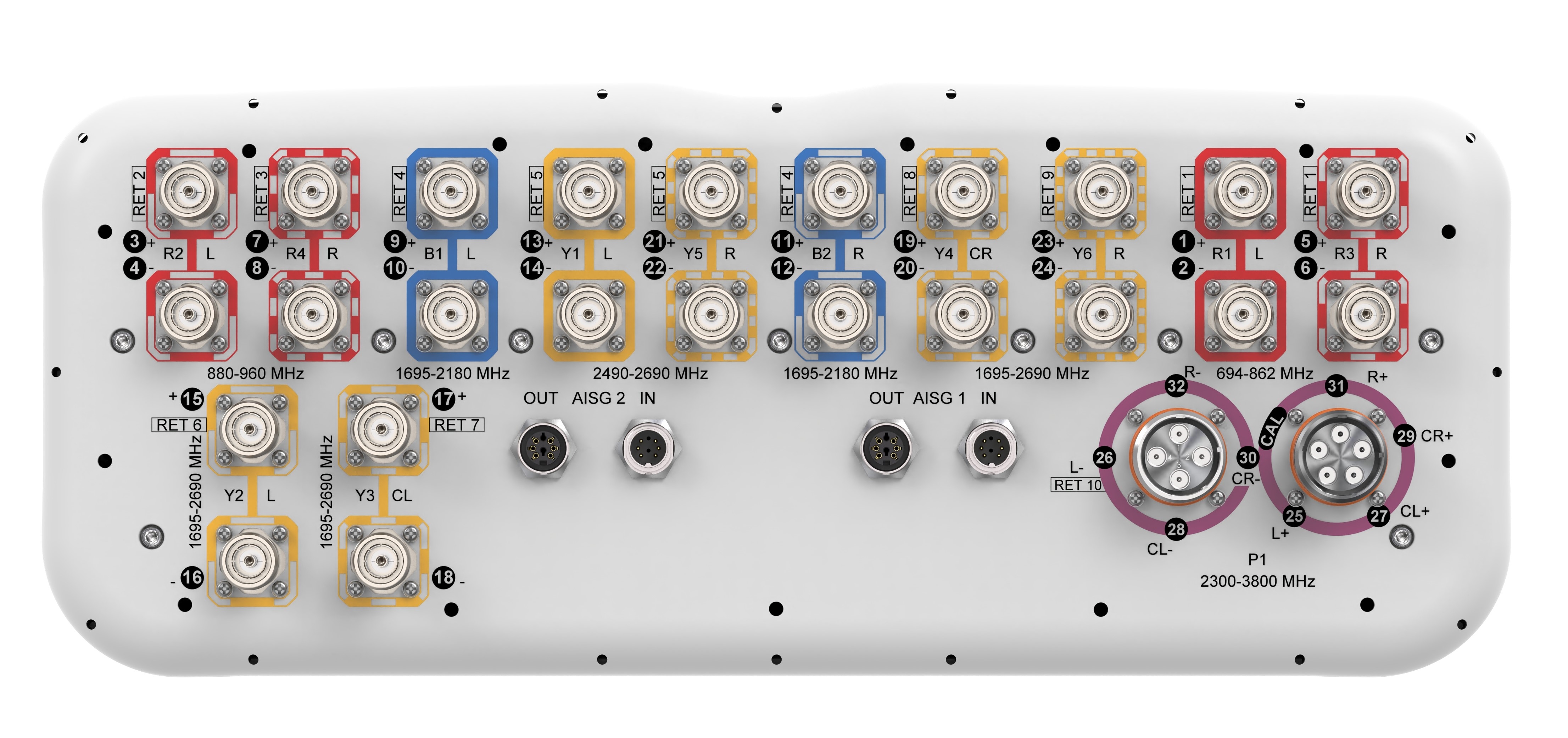

Port configuration

Click on image to enlarge.

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 694 – 862 MHz | 880 – 960 MHz | 1695 – 2180 MHz | 1695 – 2690 MHz | 2300 – 3800 MHz | 2490 – 2690 MHz
Polarization ±45°
Total Input Power, maximum 1,600 W @ 50 °C

Electrical specifications

R1,R3 R2,R4 B1,B2 Y1,Y5 Y2,Y3,Y4,Y6 Y2,Y3,Y4,Y6 P1 P1
Frequency Band, MHz 694–862 880–960 1695–2180 2490–2690 1695–2180 2300–2690 2300–2690 3300–3800
RF Port 1,2,5,6 3,4,7,8 9-12 13,14,21,22 15-20,23-24 15-20,23-24 25-32 25-32
Gain at Mid Tilt, dBi 16.0 16.1 16.3 17.6 16.9 18.1 15.4 16.1
Beamwidth, Horizontal, degrees 72 75 70 60 66 54 93 66
Beamwidth, Vertical, degrees 8.1 7 7.1 5.4 6.8 5.3 5.9 5.5
Beam Tilt, degrees 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 16 17 19 19 19 19 15 15
Front-to-Back Ratio at 180°, dB 28 28 34 33 35 31 31 31
Front-to-Back Total Power at 180° ± 30°, dB 21 21 27 27 28 26 25 25
Coupling level, Amp, Antenna port to Cal port, dB -26 -26
Coupling level, max Amp Δ, Antenna port to Cal port, dB ±2 ±2
Coupler, max Amp Δ, Antenna port to Cal port, dB 0.9 0.9
Coupler, max Phase Δ, Antenna port to Cal port, degrees 7 7
Isolation, Cross Polarization, dB 25 25 25 25 25 25 23 23
Isolation, Inter-band, dB 25 25 25 25 25 25 25 25
Isolation, Co-polarization, dB 20 20
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -150 -140 -140
Input Power per Port at 50°C, maximum, watts 250 250 200 150 250 200 75 75

Electrical specifications, broadcast 65

Frequency Band, MHz 694–862 880–960 1695–2180 2490–2690 1695–2180 2300–2690 2300–2690 3300–3800
Gain, dBi 18.1 17.2
Beamwidth, Horizontal, degrees 65 65
Beamwidth, Horizontal at 10 dB, degrees 115 111
Beamwidth, Vertical, degrees 5.9 5.5
Front-to-Back Total Power at 180° ± 30°, dB 30 26
USLS (First Lobe), dB 16 15

Electrical specifications, envelope pattern

Frequency Band, MHz 694–862 880–960 1695–2180 2490–2690 1695–2180 2300–2690 2300–2690 3300–3800
Gain, dBi 20.9 21.6
Beamwidth, Horizontal at 10 dB, degrees 125 122
Beamwidth, Vertical at 3 dB, degrees 5.9 5.5
Front-to-Back Total Power at 180° ± 30°, dB 30 29
USLS (First Lobe), dB 17 16

Electrical specifications, service beam

Frequency Band, MHz 694–862 880–960 1695–2180 2490–2690 1695–2180 2300–2690 2300–2690 3300–3800
Steered 0° Gain, dBi 20.9 21.7
Steered 0° Beamwidth, Horizontal, degrees 25 19
Steered 0° Front-to-Back Total Power at 180° ± 30°, dB 33 32
Steered 0° Horizontal Sidelobe, dB 12 12
Steered 30° Gain, dBi 20.4 19.5
Steered 30° Beamwidth, Horizontal, degrees 28 23
Steered 30° Front-to-Back Total Power at 180° ± 30°, dB 32 28

Electrical specifications, soft split

Frequency Band, MHz 694–862 880–960 1695–2180 2490–2690 1695–2180 2300–2690 2300–2690 3300–3800
Gain, dBi 20.2
Beamwidth, Horizontal, degrees 31
Front-to-Back Total Power at 180° ± 30°, dB 32
Horizontal Sidelobe, dB 19

Mechanical specifications

Wind Loading @ Velocity, frontal 970.0 N @ 150 km/h (218.1 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 304.0 N @ 150 km/h (68.3 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 1,162.0 N @ 150 km/h (261.2 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 667.0 N @ 150 km/h (149.9 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and weights

Width, packed 565 mm | 22.244 in
Depth, packed 318 mm | 12.520 in
Length, packed 2809 mm | 110.591 in
Weight, gross 90.1 kg | 198.636 lb

Regulatory compliance/certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
UK-ROHS Compliant/Exempted

General specifications

Antenna Type Sector and beamforming
Band Multiband
Calibration Connector Interface MQ5
Calibration Connector Quantity 1
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
RF Connector Interface 4.3-10 Female | MQ4 | MQ5
RF Connector Location Bottom
RF Connector Quantity, high band 8
RF Connector Quantity, mid band 16
RF Connector Quantity, low band 8
RF Connector Quantity, total 32

Remote electrical tilt (ret) information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 2 female | 2 male
Input Voltage 10–30 Vdc
Internal RET High band (1) | Low band (3) | Mid band (6)
Power Consumption, active state, maximum 8 W
Power Consumption, idle state, maximum 1 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 498 mm | 19.606 in
Depth 197 mm | 7.756 in
Length 2688 mm | 105.827 in
Net Weight, antenna only 71.4 kg | 157.410 lb

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 694 – 862 MHz | 880 – 960 MHz | 1695 – 2180 MHz | 1695 – 2690 MHz | 2300 – 3800 MHz | 2490 – 2690 MHz
Polarization ±45°
Total Input Power, maximum 1,600 W @ 50 °C

Electrical specifications

R1,R3 R2,R4 B1,B2 Y1,Y5 Y2,Y3,Y4,Y6 Y2,Y3,Y4,Y6 P1 P1
Frequency Band, MHz 694–862 880–960 1695–2180 2490–2690 1695–2180 2300–2690 2300–2690 3300–3800
RF Port 1,2,5,6 3,4,7,8 9-12 13,14,21,22 15-20,23-24 15-20,23-24 25-32 25-32
Gain at Mid Tilt, dBi 16.0 16.1 16.3 17.6 16.9 18.1 15.4 16.1
Beamwidth, Horizontal, degrees 72 75 70 60 66 54 93 66
Beamwidth, Vertical, degrees 8.1 7 7.1 5.4 6.8 5.3 5.9 5.5
Beam Tilt, degrees 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 16 17 19 19 19 19 15 15
Front-to-Back Ratio at 180°, dB 28 28 34 33 35 31 31 31
Front-to-Back Total Power at 180° ± 30°, dB 21 21 27 27 28 26 25 25
Coupling level, Amp, Antenna port to Cal port, dB -26 -26
Coupling level, max Amp Δ, Antenna port to Cal port, dB ±2 ±2
Coupler, max Amp Δ, Antenna port to Cal port, dB 0.9 0.9
Coupler, max Phase Δ, Antenna port to Cal port, degrees 7 7
Isolation, Cross Polarization, dB 25 25 25 25 25 25 23 23
Isolation, Inter-band, dB 25 25 25 25 25 25 25 25
Isolation, Co-polarization, dB 20 20
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -150 -140 -140
Input Power per Port at 50°C, maximum, watts 250 250 200 150 250 200 75 75

Electrical specifications, broadcast 65

Frequency Band, MHz 694–862 880–960 1695–2180 2490–2690 1695–2180 2300–2690 2300–2690 3300–3800
Gain, dBi 18.1 17.2
Beamwidth, Horizontal, degrees 65 65
Beamwidth, Horizontal at 10 dB, degrees 115 111
Beamwidth, Vertical, degrees 5.9 5.5
Front-to-Back Total Power at 180° ± 30°, dB 30 26
USLS (First Lobe), dB 16 15

Electrical specifications, envelope pattern

Frequency Band, MHz 694–862 880–960 1695–2180 2490–2690 1695–2180 2300–2690 2300–2690 3300–3800
Gain, dBi 20.9 21.6
Beamwidth, Horizontal at 10 dB, degrees 125 122
Beamwidth, Vertical at 3 dB, degrees 5.9 5.5
Front-to-Back Total Power at 180° ± 30°, dB 30 29
USLS (First Lobe), dB 17 16

Electrical specifications, service beam

Frequency Band, MHz 694–862 880–960 1695–2180 2490–2690 1695–2180 2300–2690 2300–2690 3300–3800
Steered 0° Gain, dBi 20.9 21.7
Steered 0° Beamwidth, Horizontal, degrees 25 19
Steered 0° Front-to-Back Total Power at 180° ± 30°, dB 33 32
Steered 0° Horizontal Sidelobe, dB 12 12
Steered 30° Gain, dBi 20.4 19.5
Steered 30° Beamwidth, Horizontal, degrees 28 23
Steered 30° Front-to-Back Total Power at 180° ± 30°, dB 32 28

Electrical specifications, soft split

Frequency Band, MHz 694–862 880–960 1695–2180 2490–2690 1695–2180 2300–2690 2300–2690 3300–3800
Gain, dBi 20.2
Beamwidth, Horizontal, degrees 31
Front-to-Back Total Power at 180° ± 30°, dB 32
Horizontal Sidelobe, dB 19

Mechanical specifications

Wind Loading @ Velocity, frontal 970.0 N @ 150 km/h (218.1 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 304.0 N @ 150 km/h (68.3 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 1,162.0 N @ 150 km/h (261.2 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 667.0 N @ 150 km/h (149.9 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and weights

Width, packed 565 mm | 22.244 in
Depth, packed 318 mm | 12.520 in
Length, packed 2809 mm | 110.591 in
Weight, gross 90.1 kg | 198.636 lb
Click on image to enlarge.
Click on image to enlarge.

Regulatory compliance/certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
UK-ROHS Compliant/Exempted
