DB636-C

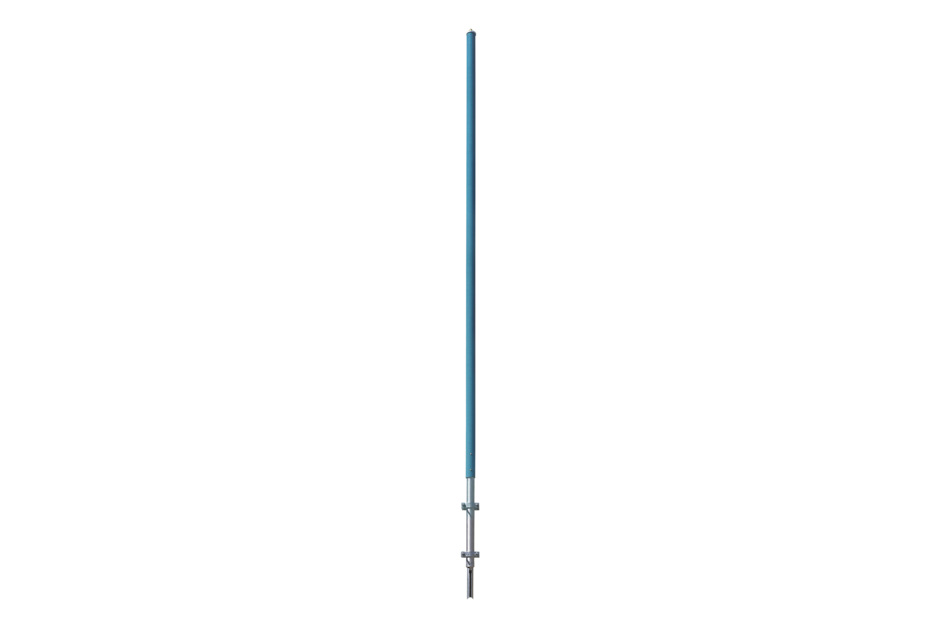

1-port omni antenna, 450–482 MHz, 360° HPBW, fixed electrical tilt

Finish making your selections or clear them to view relevant specifications.
Find a partner
Features and benefits
  • Omnidirectional antenna
  • Rugged, durable design, heavy duty radome for minimum tip deflection
  • Invert mountable

General specifications

Antenna Type Omni
Band Single band
Color Horizon blue
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material Fiberglass, UV resistant
Radiator Material Brass
RF Connector Interface N Female
RF Connector Location Bottom
RF Connector Quantity, high band 0
RF Connector Quantity, mid band 0
RF Connector Quantity, low band 1
RF Connector Quantity, total 1

Dimensions

Length 2895.6 mm | 114 in
Net Weight, without mounting kit 30 kg | 66.139 lb
Outer Diameter 63.5 mm | 2.5 in

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 450 – 482 MHz
Polarization Vertical

Electrical specifications

Frequency Band, MHz 450–482
Gain, dBi 8.1
Beamwidth, Horizontal, degrees 360
Beamwidth, Vertical, degrees 20
Beam Tilt, degrees 0
VSWR | Return loss, dB 1.5 | 14.0
Input Power per Port, maximum, watts 500

Mechanical specifications

Wind Loading @ Velocity, maximum 286.5 N @ 100 mph (64.4 lbf @ 100 mph)
Wind Speed, maximum 354 km/h (220 mph)

Regulatory compliance/certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system

General specifications

Antenna Type Omni
Band Single band
Color Horizon blue
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material Fiberglass, UV resistant
Radiator Material Brass
RF Connector Interface N Female
RF Connector Location Bottom
RF Connector Quantity, high band 0
RF Connector Quantity, mid band 0
RF Connector Quantity, low band 1
RF Connector Quantity, total 1

Dimensions

Length 2895.6 mm | 114 in
Net Weight, without mounting kit 30 kg | 66.139 lb
Outer Diameter 63.5 mm | 2.5 in

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 450 – 482 MHz
Polarization Vertical

Electrical specifications

Frequency Band, MHz 450–482
Gain, dBi 8.1
Beamwidth, Horizontal, degrees 360
Beamwidth, Vertical, degrees 20
Beam Tilt, degrees 0
VSWR | Return loss, dB 1.5 | 14.0
Input Power per Port, maximum, watts 500

Mechanical specifications

Wind Loading @ Velocity, maximum 286.5 N @ 100 mph (64.4 lbf @ 100 mph)
Wind Speed, maximum 354 km/h (220 mph)

Regulatory compliance/certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
