CNNPX310R-6P

6-port sector antenna, 2x 824–960 and 4x 1710–2170 MHz, 65° HPBW, 3x RET with manual override.

Finish making your selections or clear them to view relevant specifications.

Features and benefits

Integrated Internal Remote Electrical Tilt (RET), with independent control of electrical tilt with manual override on all arrays

Specifications

General specifications

Antenna Type	Sector
Band	Multiband
Grounding Type	RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note	Outdoor usage
Radome Material	Polyester fiberglass pultrusion
RF Connector Interface	7-16 DIN Female

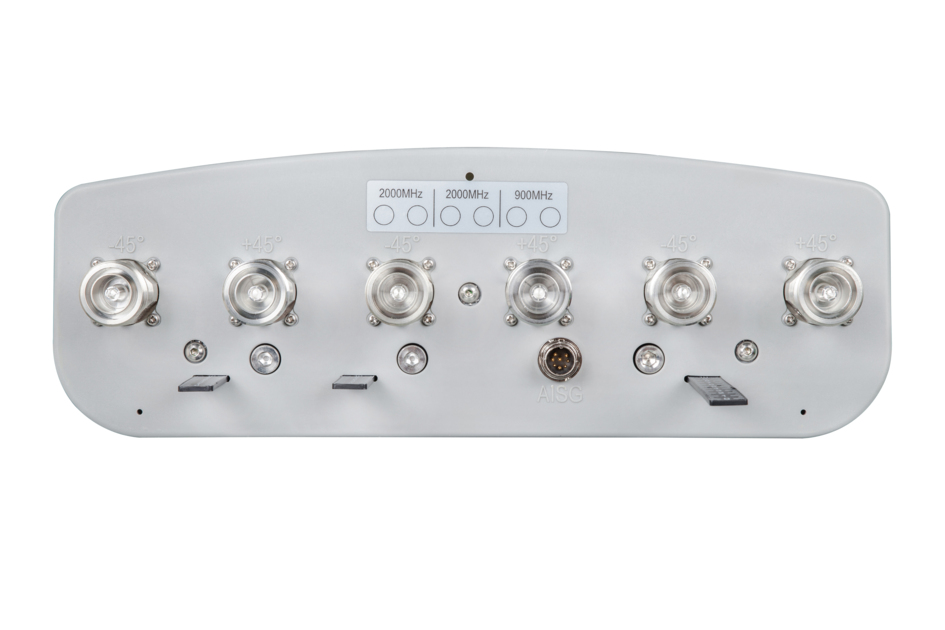

RF Connector Location	Bottom
RF Connector Quantity, high band	4
RF Connector Quantity, mid band	0
RF Connector Quantity, low band	2
RF Connector Quantity, total	6

RET Interface	8-pin DIN Male
RET Interface, quantity	1 male
Input Voltage	10–30 Vdc
Internal RET	High band (2) \| Low band (1)
Power Consumption, idle state, maximum	2 W
Power Consumption, normal conditions, maximum	13 W
Protocol	3GPP/AISG 2.0 (Single RET)

Width	370 mm \| 14.567 in
Depth	120 mm \| 4.724 in
Length	2630 mm \| 103.543 in
Net Weight, without mounting kit	36.5 kg \| 80.469 lb

Frequency Band, MHz	824–890	890–960	1710–1880	1920–2170
Gain, dBi	17.0	17.5	16.8	17.8
Beamwidth, Horizontal, degrees	67	62	68	63
Beamwidth, Vertical, degrees	7.5	7	7.2	6.5
Beam Tilt, degrees	0–10	0–10	0–10	0–10
USLS (First Lobe), dB	18	18	18	18
Front-to-Back Ratio at 180°, dB	25	25	25	25
Isolation, Cross Polarization, dB	30	30	30	30
VSWR \| Return loss, dB	1.43 \| 15.0	1.43 \| 15.0	1.43 \| 15.0	1.43 \| 15.0
PIM, 3rd Order, 2 x 20 W, dBc	-150	-150	-150	-150
Input Power per Port, maximum, watts	500	500	300	300

Wind Loading @ Velocity, maximum	1,430.0 N @ 160 km/h (321.5 lbf @ 160 km/h)
Wind Speed, maximum	200 km/h (124 mph)

Agency	Classification
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant
UK-ROHS	Compliant
REACH-SVHC	Compliant as per SVHC revision on www.andrew.com/ProductCompliance
