8P-2L6M-D4-V5
8-port sector antenna, 2x 694–960 and 6x 1695–2690 MHz, 65° HPBW, 4x RET with tilt indicators
Features and benefits
- 4 Independent Arrays (1 Low band and 3 high bands) in a single radome housing
- Optimized radome design leading to market leading wind load performance
- Antenna with retractable tilt scale indicators and integrated pluggable RET
- Uses the 4.3-10 connector which is 40 percent smaller than the 7-16 DIN connector
Specifications
General specifications
| Antenna Type | Sector |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 6 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 2 |
| RF Connector Quantity, total | 8 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 2x 8 pin connector as per IEC 60130-9 Daisy chain in: Male / Daisy chain out: Female Pin3: RS485A(AISG_B), Pin5: RS485B(AISG_A), Pin6: DC 10~30V, Pin7: DC_ Return |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | High band (3) | Low band (1) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 301 mm | 11.850 in |
| Depth | 181 mm | 7.126 in |
| Length | 2688 mm | 105.827 in |
| Net Weight, without mounting kit | 22.3 kg | 49.163 lb |

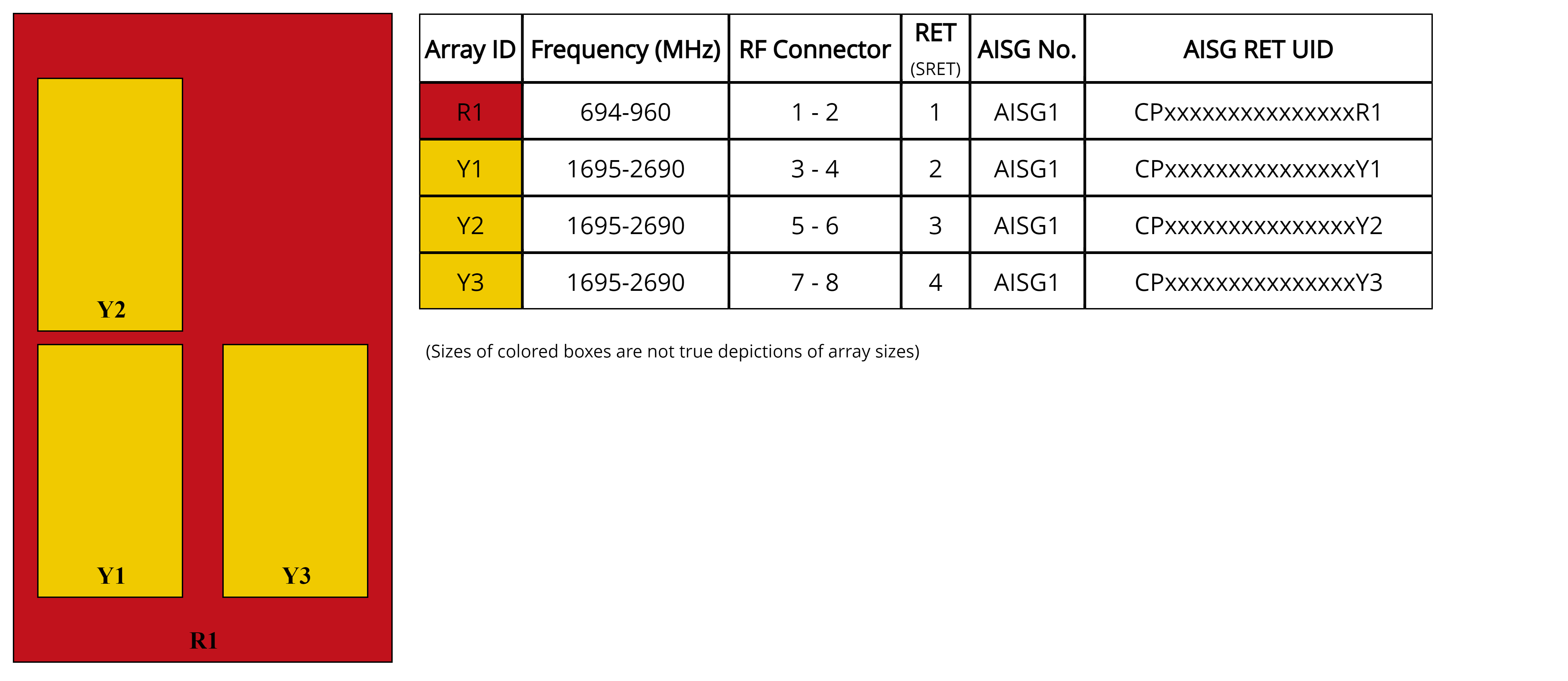

Array layout
| Click on image to enlarge. |

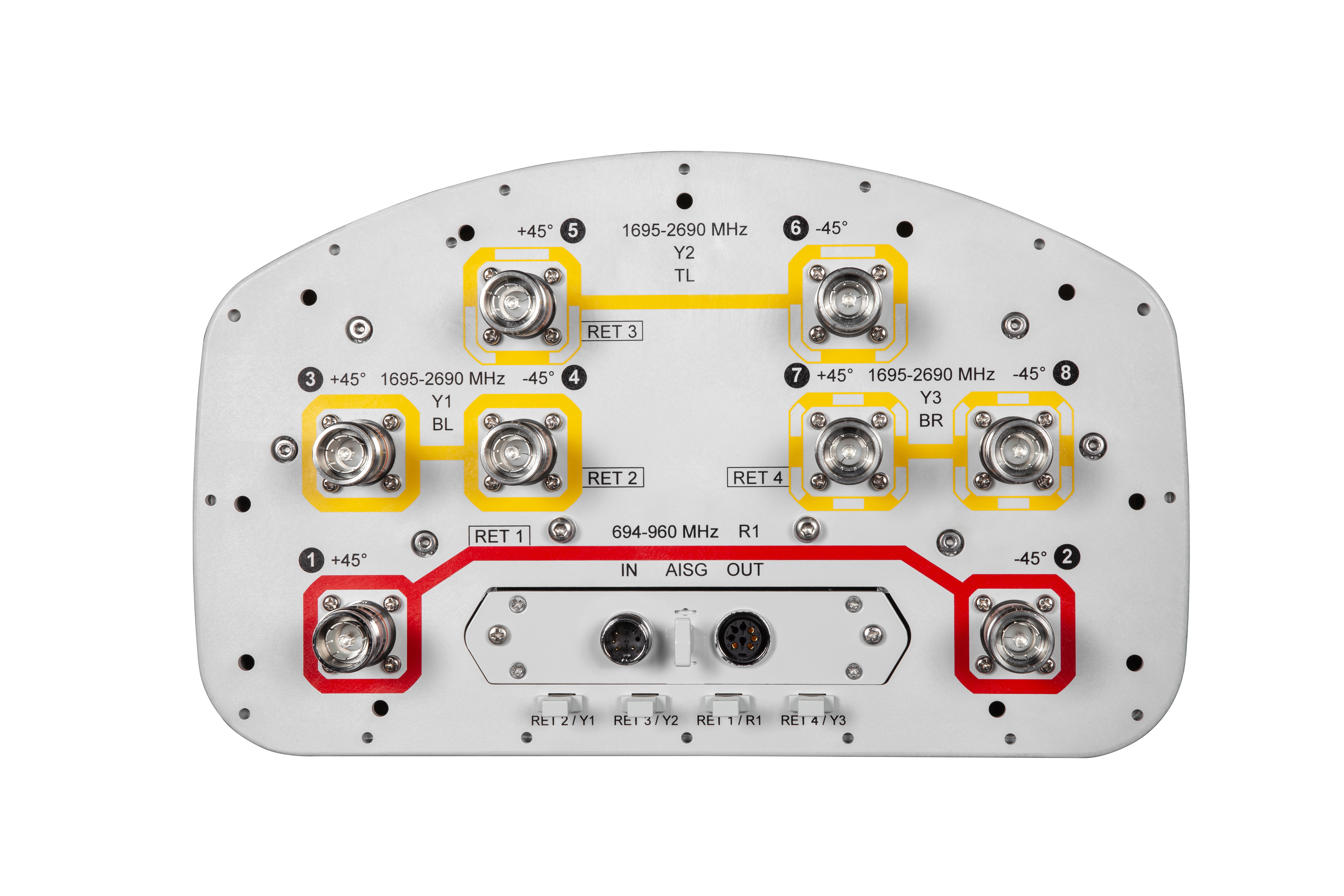

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 694 – 960 MHz | 1695 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 900 W |
Electrical specifications
| Frequency Band, MHz | 694–790 | 790–890 | 890–960 | 1695–1920 | 1920–2200 | 2300–2500 | 2500–2690 |
| Gain, dBi | 16.5 | 16.7 | 16.7 | 17.7 | 17.9 | 17.5 | 17.7 |
| Beamwidth, Horizontal, degrees | 70 | 67 | 64 | 65 | 66 | 66 | 63 |
| Beamwidth, Vertical, degrees | 8.3 | 7.5 | 7.0 | 7.2 | 6.6 | 5.8 | 5.4 |
| Beam Tilt, degrees | 0–10 | 0–10 | 0–10 | 2–12 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 19 | 18 | 18 | 17 | 19 | 20 | 18 |
| Front-to-Back Ratio at 180°, dB | 30 | 33 | 33 | 36 | 35 | 31 | 33 |
| Front-to-Back Ratio, Copolarization 180° ± 30°, dB | 30 | 31 | 29 | 31 | 30 | 28 | 28 |
| CPR at Boresight, dB | 20 | 25 | 23 | 19 | 20 | 22 | 22 |
| Isolation, Cross Polarization, dB | 27 | 27 | 27 | 27 | 27 | 27 | 27 |
| Isolation, Inter-band, dB | 27 | 27 | 27 | 27 | 27 | 27 | 27 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 | -150 | -150 | -150 | -150 |
| Input Power per Port, maximum, watts | 500 | 500 | 500 | 300 | 300 | 250 | 250 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 441.0 N @ 150 km/h (99.1 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 374.0 N @ 150 km/h (84.1 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 746.0 N @ 150 km/h (167.7 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 448.0 N @ 150 km/h (100.7 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 411 mm | 16.181 in |
| Depth, packed | 324 mm | 12.756 in |
| Length, packed | 2814 mm | 110.787 in |
| Weight, gross | 34.9 kg | 76.941 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
General specifications
| Antenna Type | Sector |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 6 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 2 |
| RF Connector Quantity, total | 8 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 2x 8 pin connector as per IEC 60130-9 Daisy chain in: Male / Daisy chain out: Female Pin3: RS485A(AISG_B), Pin5: RS485B(AISG_A), Pin6: DC 10~30V, Pin7: DC_ Return |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | High band (3) | Low band (1) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 301 mm | 11.850 in |
| Depth | 181 mm | 7.126 in |
| Length | 2688 mm | 105.827 in |
| Net Weight, without mounting kit | 22.3 kg | 49.163 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 694 – 960 MHz | 1695 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 900 W |
Electrical specifications
| Frequency Band, MHz | 694–790 | 790–890 | 890–960 | 1695–1920 | 1920–2200 | 2300–2500 | 2500–2690 |
| Gain, dBi | 16.5 | 16.7 | 16.7 | 17.7 | 17.9 | 17.5 | 17.7 |
| Beamwidth, Horizontal, degrees | 70 | 67 | 64 | 65 | 66 | 66 | 63 |
| Beamwidth, Vertical, degrees | 8.3 | 7.5 | 7.0 | 7.2 | 6.6 | 5.8 | 5.4 |
| Beam Tilt, degrees | 0–10 | 0–10 | 0–10 | 2–12 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 19 | 18 | 18 | 17 | 19 | 20 | 18 |
| Front-to-Back Ratio at 180°, dB | 30 | 33 | 33 | 36 | 35 | 31 | 33 |
| Front-to-Back Ratio, Copolarization 180° ± 30°, dB | 30 | 31 | 29 | 31 | 30 | 28 | 28 |
| CPR at Boresight, dB | 20 | 25 | 23 | 19 | 20 | 22 | 22 |
| Isolation, Cross Polarization, dB | 27 | 27 | 27 | 27 | 27 | 27 | 27 |
| Isolation, Inter-band, dB | 27 | 27 | 27 | 27 | 27 | 27 | 27 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 | -150 | -150 | -150 | -150 |
| Input Power per Port, maximum, watts | 500 | 500 | 500 | 300 | 300 | 250 | 250 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 441.0 N @ 150 km/h (99.1 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 374.0 N @ 150 km/h (84.1 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 746.0 N @ 150 km/h (167.7 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 448.0 N @ 150 km/h (100.7 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 411 mm | 16.181 in |
| Depth, packed | 324 mm | 12.756 in |
| Length, packed | 2814 mm | 110.787 in |
| Weight, gross | 34.9 kg | 76.941 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
