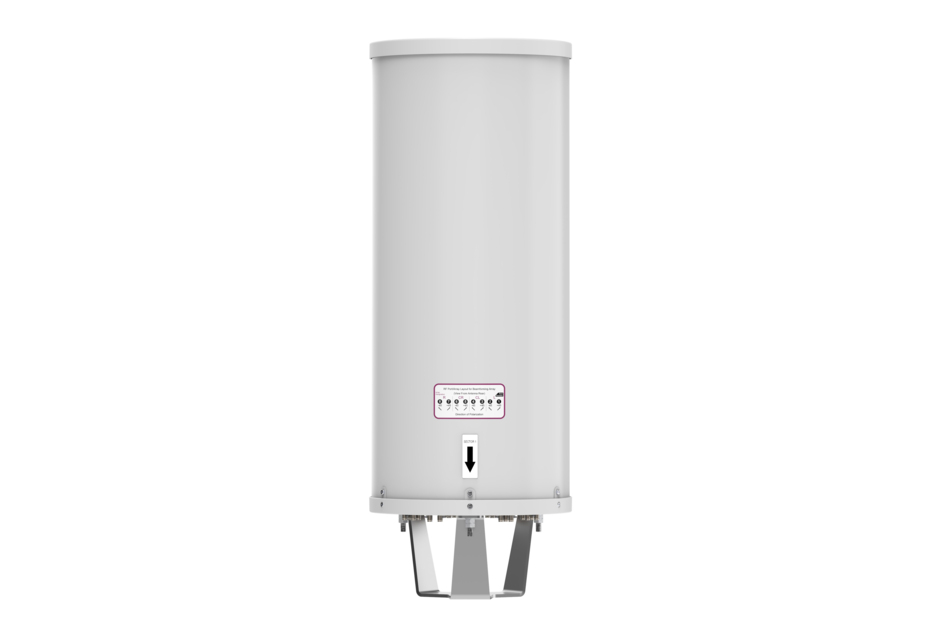

3X-S4-90M-R3
24-port tri-sector Antenna, 3 planar arrays pointing 0-120-240 degrees, 3300–4000 MHz, 90° HPBW, 3x RET
Features and benefits
- Designed for beamforming, includes calibration port
- Trisector, three 4-column beamforming arrays
- Three DualPol® antennas under one radome
- Fully integrated flange mounting system for ease of installation
- Ideal concealment solution for areas with special regulations regarding visual impact
- Includes M-LOC type cluster connector(s)
Specifications
General specifications
| Antenna Type | DualPol® tri-sector |
| Band | Single band |
| Calibration Connector Interface | M-LOC |
| Calibration Connector Quantity | 3 |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | ASA, UV stabilized |
| Reflector Material | Aluminum |
| RF Connector Interface | M-LOC |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 24 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 0 |
| RF Connector Quantity, total | 24 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | High band (3) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 |
Dimensions
| Length | 880 mm | 34.646 in |
| Net Weight, without mounting kit | 21.9 kg | 48.281 lb |
| Outer Diameter | 370 mm | 14.567 in |
| TDD Column Spacing | 41 mm | 1.614 in |

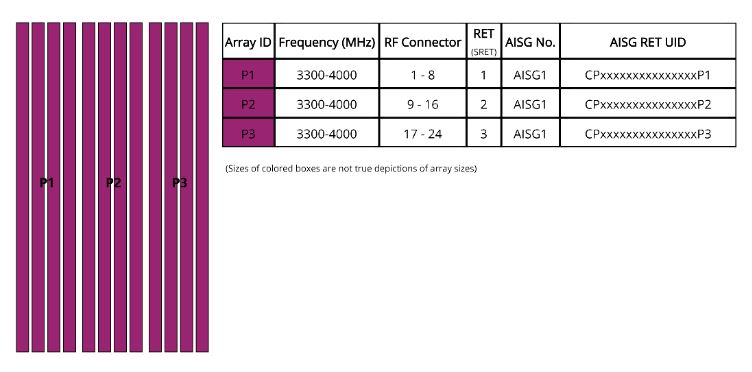

Array layout
| Click on image to enlarge. |

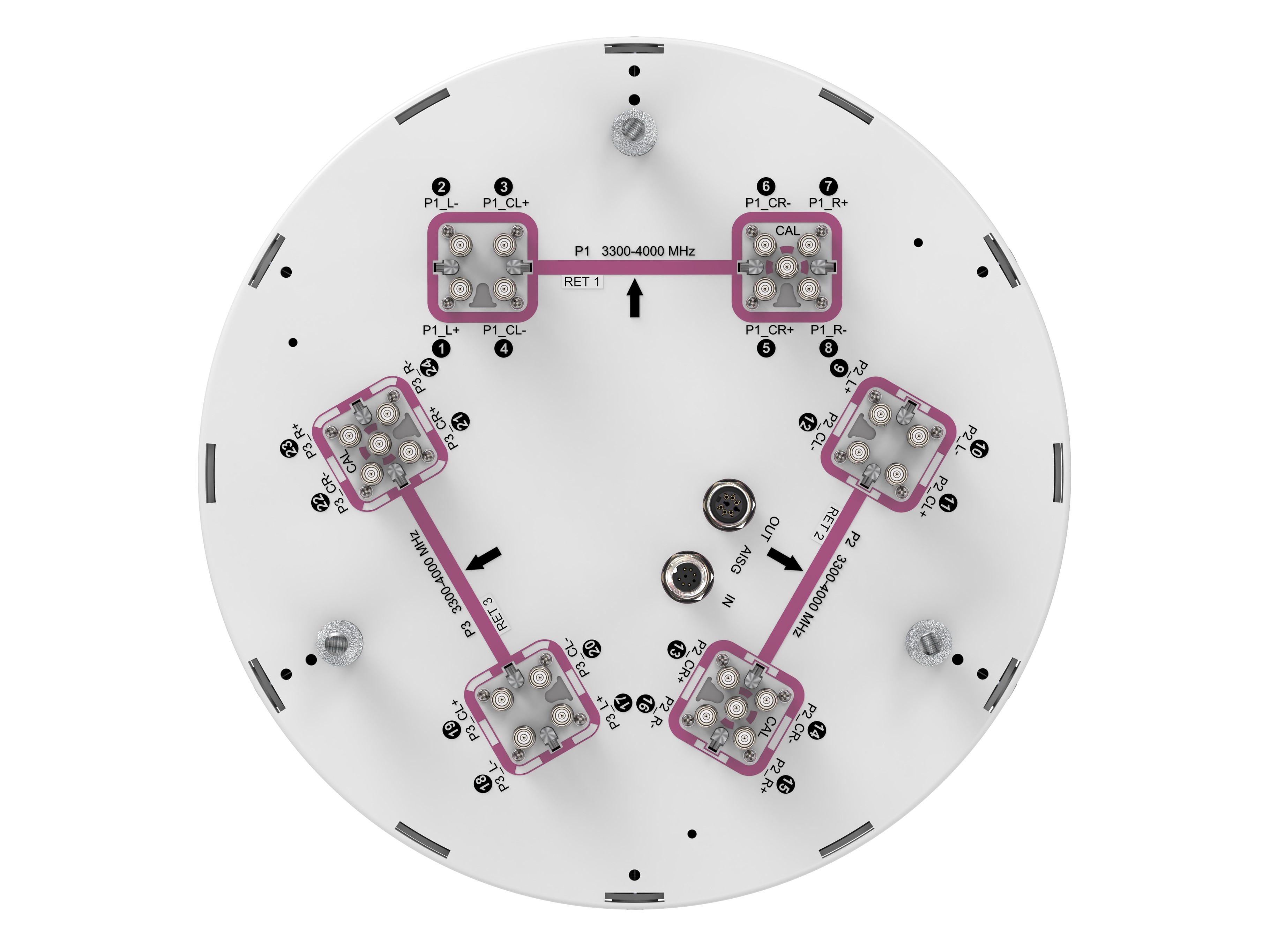

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 3300 – 4000 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 900 W @ 50 °C |
Electrical specifications
| Frequency Band, MHz | 3300–3600 | 3600–4000 |
| Gain, dBi | 15.2 | 15.7 |
| Beamwidth, Horizontal, degrees | 100 | 90 |
| Beamwidth, Vertical, degrees | 6.4 | 6 |
| Beam Tilt, degrees | 2–12 | 2–12 |
| USLS (First Lobe), dB | 15 | 15 |
| Front-to-Back Ratio at 180°, dB | 30 | 31 |
| Coupling level, Amp, Antenna port to Cal port, dB | 26 | 26 |
| Coupling level, max Amp Δ, Antenna port to Cal port, dB | ±2 | ±2 |
| Coupler, max Amp Δ, Antenna port to Cal port, dB | 0.9 | 0.9 |
| Coupler, max Phase Δ, Antenna port to Cal port, degrees | 7 | 7 |
| CPR at Boresight, dB | 17 | 18 |
| Isolation, Cross Polarization, dB | 25 | 25 |
| Isolation, Inter-band, dB | 19 | 19 |
| Isolation, Co-polarization, dB | 19 | 19 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -145 | -145 |
| Input Power per Port at 50°C, maximum, watts | 75 | 75 |
Electrical specifications, broadcast 65
| Frequency Band, MHz | 3300–3600 | 3600–4000 |
| Gain, dBi | 17.6 | 17.9 |
| Beamwidth, Horizontal, degrees | 65 | 64 |
| Beamwidth, Vertical, degrees | 6.5 | 6.0 |
| Front-to-Back Total Power at 180° ± 30°, dB | 30 | 29 |
| USLS (First Lobe), dB | 19 | 18 |
Electrical specifications, service beam
| Frequency Band, MHz | 3300–3600 | 3600–4000 |
| Steered 0° Gain, dBi | 20.6 | 21.0 |
| Steered 0° Beamwidth, Horizontal, degrees | 27 | 25 |
| Steered 0° Front-to-Back Total Power at 180° ± 30°, dB | 33 | 33 |
| Steered 0° Horizontal Sidelobe, dB | 13 | 12 |
| Steered 0° USLS (First Lobe), dB | 21 | 21 |
| Steered 30° Gain, dBi | 20.0 | 20.3 |
| Steered 30° Beamwidth, Horizontal, degrees | 29 | 27 |
| Steered 30° Front-to-Back Total Power at 180° ± 30°, dB | 32 | 31 |
Electrical specifications, soft split
| Frequency Band, MHz | 3300–3600 | 3600–4000 |
| Gain, dBi | 19.7 | 19.8 |
| Beamwidth, Horizontal, degrees | 33 | 32 |
| Front-to-Back Total Power at 180° ± 30°, dB | 32 | 31 |
| Horizontal Sidelobe, dB | 18 | 19 |
| USLS (First Lobe), dB | 20 | 21 |
Mechanical specifications
| Effective Projective Area (EPA), frontal | 0.17 m² | 1.830 ft² |
| Effective Projective Area (EPA), lateral | 0.17 m² | 1.830 ft² |
| Wind Loading @ Velocity, frontal | 186.0 N @ 150 km/h (41.8 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 186.0 N @ 150 km/h (41.8 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 186.0 N @ 150 km/h (41.8 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 186.0 N @ 150 km/h (41.8 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 478 mm | 18.819 in |
| Depth, packed | 464 mm | 18.268 in |
| Length, packed | 1169 mm | 46.024 in |
| Weight, gross | 26.6 kg | 58.643 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
General specifications
| Antenna Type | DualPol® tri-sector |
| Band | Single band |
| Calibration Connector Interface | M-LOC |
| Calibration Connector Quantity | 3 |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | ASA, UV stabilized |
| Reflector Material | Aluminum |
| RF Connector Interface | M-LOC |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 24 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 0 |
| RF Connector Quantity, total | 24 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | High band (3) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 |
Dimensions
| Length | 880 mm | 34.646 in |
| Net Weight, without mounting kit | 21.9 kg | 48.281 lb |
| Outer Diameter | 370 mm | 14.567 in |
| TDD Column Spacing | 41 mm | 1.614 in |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 3300 – 4000 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 900 W @ 50 °C |
Electrical specifications
| Frequency Band, MHz | 3300–3600 | 3600–4000 |
| Gain, dBi | 15.2 | 15.7 |
| Beamwidth, Horizontal, degrees | 100 | 90 |
| Beamwidth, Vertical, degrees | 6.4 | 6 |
| Beam Tilt, degrees | 2–12 | 2–12 |
| USLS (First Lobe), dB | 15 | 15 |
| Front-to-Back Ratio at 180°, dB | 30 | 31 |
| Coupling level, Amp, Antenna port to Cal port, dB | 26 | 26 |
| Coupling level, max Amp Δ, Antenna port to Cal port, dB | ±2 | ±2 |
| Coupler, max Amp Δ, Antenna port to Cal port, dB | 0.9 | 0.9 |
| Coupler, max Phase Δ, Antenna port to Cal port, degrees | 7 | 7 |
| CPR at Boresight, dB | 17 | 18 |
| Isolation, Cross Polarization, dB | 25 | 25 |
| Isolation, Inter-band, dB | 19 | 19 |
| Isolation, Co-polarization, dB | 19 | 19 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -145 | -145 |
| Input Power per Port at 50°C, maximum, watts | 75 | 75 |
Electrical specifications, broadcast 65
| Frequency Band, MHz | 3300–3600 | 3600–4000 |
| Gain, dBi | 17.6 | 17.9 |
| Beamwidth, Horizontal, degrees | 65 | 64 |
| Beamwidth, Vertical, degrees | 6.5 | 6.0 |
| Front-to-Back Total Power at 180° ± 30°, dB | 30 | 29 |
| USLS (First Lobe), dB | 19 | 18 |
Electrical specifications, service beam
| Frequency Band, MHz | 3300–3600 | 3600–4000 |
| Steered 0° Gain, dBi | 20.6 | 21.0 |
| Steered 0° Beamwidth, Horizontal, degrees | 27 | 25 |
| Steered 0° Front-to-Back Total Power at 180° ± 30°, dB | 33 | 33 |
| Steered 0° Horizontal Sidelobe, dB | 13 | 12 |
| Steered 0° USLS (First Lobe), dB | 21 | 21 |
| Steered 30° Gain, dBi | 20.0 | 20.3 |
| Steered 30° Beamwidth, Horizontal, degrees | 29 | 27 |
| Steered 30° Front-to-Back Total Power at 180° ± 30°, dB | 32 | 31 |
Electrical specifications, soft split
| Frequency Band, MHz | 3300–3600 | 3600–4000 |
| Gain, dBi | 19.7 | 19.8 |
| Beamwidth, Horizontal, degrees | 33 | 32 |
| Front-to-Back Total Power at 180° ± 30°, dB | 32 | 31 |
| Horizontal Sidelobe, dB | 18 | 19 |
| USLS (First Lobe), dB | 20 | 21 |
Mechanical specifications
| Effective Projective Area (EPA), frontal | 0.17 m² | 1.830 ft² |
| Effective Projective Area (EPA), lateral | 0.17 m² | 1.830 ft² |
| Wind Loading @ Velocity, frontal | 186.0 N @ 150 km/h (41.8 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 186.0 N @ 150 km/h (41.8 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 186.0 N @ 150 km/h (41.8 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 186.0 N @ 150 km/h (41.8 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 478 mm | 18.819 in |
| Depth, packed | 464 mm | 18.268 in |
| Length, packed | 1169 mm | 46.024 in |
| Weight, gross | 26.6 kg | 58.643 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
